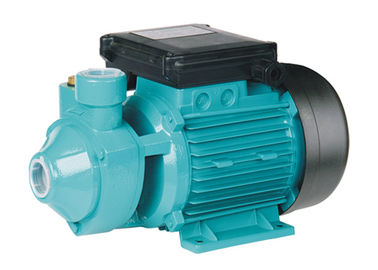

0.5HP 0.37KW Peripheral Vortex Clean Water Pump With Iron Cast Pump Body For Home

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number IDB-35
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:285x150x185mm/pc, N.W.: 5.4kgs
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month
Product Details
Product Name Peripheral Water Pump Application Pumping
Output 0.5HP / 0.37KW Flow Max 35 L/Min
Head Max 35M Suction Max 9M
Inlet/Outlet 1"x1" Speed 2850RPM
High Light

peripheral impeller pump

,

domestic water pump

Leave a Message
Product Description




0.5HP 0.37KW Peripheral Vortex Clean Water Pump With Iron Cast Pump Body For Home

Peripheral Water Pump Description:

These peripheral pumps are suitable for handling clean water that does not contain abrasive particles and fluids that are not chemically aggressive to the pump components.

Reliable, economical, and simple to use, they are suitable for domestic applications and the automatic distribution of water from surge tanks, watering gardens for boosting insufficient mains water pressure. These pumps should be installed in a covered area, protected against the weather.

Technical Data:

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
IDB-35 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 285x150x185 5.4


Applications:

The IDB-35 micro high-pressure water pump is suitable for pumping clean water.
They are particularly suitable for:



1.  Gardening


2.  Water pressure boosting


3.  The automatic water supply system


4.  The Domestic application such as supply water from well, pool, etc


Peripheral Water Pump Advantages:
1). 100% high-quality copper,100% output
2). Cold-rolled silicon steel sheet by a high-speed punching machine
3). Good quality bearing, the surface more smooth, the dimension more precise
4). Thermal protector
5). One year warranty

Working conditions:

Suction lift to 9m
Fluid temperature up to 60ºC
Maximum ambient temperature 40ºC


Produce line picture:

water pump

Structural Characteristics:

Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1. Cold-rolled silicon steel sheet by the high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron A Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction Lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



 water pump

Peripheral Water Pump Warranty:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Peripheral Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




FAQ:

1. Q: How about the MOQ?
A: Usually, it is 100 PCS for each model.
2.Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006

3. Q: Can you do OEM?
A: Yes, we can. Any OEMs are welcome!

4. Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.


5. Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6. Q: How about the warranty?
A: 1 year from shipped on board date.
