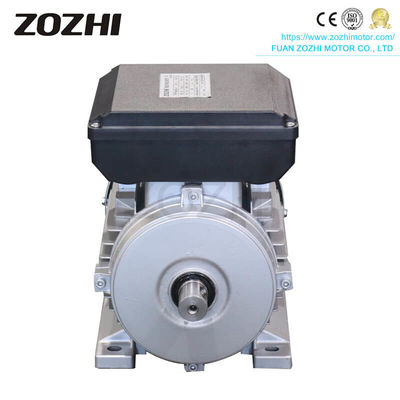

Energy Single Phase Induction Motor IE1 Rated with High Torque and Low Noise for Commercial Coffee Machine Performance

  • Energy Single Phase Induction Motor IE1 Rated with High Torque and Low Noise for Commercial Coffee Machine Performance
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ML801-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Model ML801-4 Power 0.75kw
Voltage 220V Pole 4 Pole
Protection Class IP54 Insulation Class H
Duty S1 Product Name Single Phase Induction Motor
Highlight

Single Phase Induction Motor high torque

,

Single Phase Induction Motor low noise

,

Single Phase Induction Motor IE1 rated
Leave a Message
Product Description
Commercial Coffee Machine Single-Phase Induction Motor

IE1 rated energy-efficient motor with high torque and low noise operation specifically designed for commercial coffee machine applications.

Key Features
  • High Efficiency: IE1 rated for energy-saving performance
  • Wide Voltage Range: Operates on both 110V and 220V for flexibility
  • Various Power Options: Available in 1/3HP, 1/2HP, 3/4HP, 1HP, and 1.5HP
  • International Standards: Meets global motor design requirements
  • Aluminum Housing: Durable and corrosion-resistant construction
Technical Specifications
Parameter Specification
Phase Single-Phase
AC Voltage 110/220V
Power 1/3HP, 1/2HP, 3/4HP, 1HP, 1.5HP
Rated Speed 1800RPM
Type Induction Motor
Motor Mounting Type Foot Mount
Protect Feature 71/80/90
Efficiency IE1
Warranty Totally Enclosed
Model Number ML71, ML80, ML90
Brand Name ZOZHI
Place of Origin Fujian, China
Product Name ZOZHI Electric Motor
Certificate CE
Color Customised
Protection Class IP54
Housing Aluminum
Cooling Method IC411
Duty S1
Insulation Class B/F
Winding 100% Copper Wire
Package Carton
Performance Data
Model Power (KW) Voltage (V) Current (A) Speed (r/min) Efficiency (%) P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110
Product Images
ZOZHI commercial coffee machine motor Single-phase AC induction motor close-up Electric motor technical specifications
Shipping Information

Delivery within 25-30 days. Goods are securely packed on pallets to prevent damage during transit.

NFM-129A shipping and packaging example
Additional Product Images
Industrial electric motor application Centrifugal water pump and vortex water pump Centrifugal electric water pump design Motor and pump assembly Electric motor technical diagram
