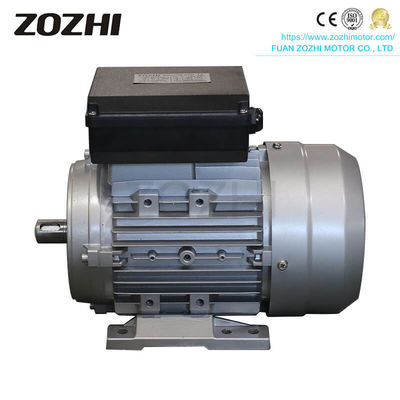

Single Phase Induction Motor Featuring Low Noise Operation and Wide Voltage Compatibility for Commercial Coffee Machines

Place of Origin	FUAN CHINA
Brand Name	ZOZHI
Certification	CE,ISO
Model Number	ML801-4
Minimum Order Quantity	10pcs
Price	negotiated
Packaging Details	Packed in cartons,veneer case or wooden case.
Delivery Time	25 working days after received your payment
Payment Terms	T/T, L/C
Supply Ability	10000pcs/month

Product Details

Model	ML801-4	Power	0.75kw
Voltage	220V	Pole	4 Pole
Protection Class	IP54	Insulation Class	H
Duty	S1	Product Name	Single Phase Induction Motor
Highlight	Single Phase Induction Motor for coffee machines , Low noise Single Phase Induction Motor , Wide voltage Single Phase Induction Motor

Leave a Message

Product Description

Commercial Coffee Machine Single-Phase Induction Motor

High-torque, low-noise single-phase AC induction motor specifically designed for commercial coffee machines, featuring wide voltage compatibility and energy-efficient operation.

Key Features

High Efficiency: IE1 rated for energy-saving performance
Wide Voltage Range: Operates on both 110V and 220V for maximum flexibility
Multiple Power Options: Available in 1/3HP, 1/2HP, 3/4HP, 1HP, and 1.5HP
International Standards: Meets global motor design requirements
Aluminum Housing: Durable and corrosion-resistant construction
Low Noise Operation: Specifically engineered for quiet performance

Technical Specifications

Parameter	Specification
Phase	Single-Phase
AC Voltage	110/220V
Power Options	1/3HP, 1/2HP, 3/4HP, 1HP, 1.5HP
Rated Speed	1800RPM
Motor Type	Induction Motor
Mounting Type	Foot Mount
Protection Class	IP54
Efficiency Rating	IE1
Housing Material	Aluminum
Cooling Method	IC411
Insulation Class	B/F
Winding Material	100% Copper Wire
Model Numbers	ML71, ML80, ML90 Series
Brand	ZOZHI
Certification	CE
Warranty	1 Year

Performance Data

Model	Power (KW)	Voltage (V)	Current (A)	Speed (r/min)	Efficiency (%)	P.F.	Tstart/Tn	Tmax/Tn	Ist/In (A)
ML711-2	0.37	220	2.73	2800	67	0.92	2.3	1.8	16
ML712-2	0.55	220	3.88	2800	70	0.92	2.5	1.8	21
ML801-2	0.75	220	5.15	2800	72	0.92	2.5	1.8	30
ML802-2	1.10	220	7.02	2800	75	0.95	2.5	1.8	40
ML90S-2	1.50	220	9.44	2800	76	0.95	2.5	1.8	55
ML90L-2	2.20	220	13.67	2800	77	0.95	2.5	1.8	80
ML100L-2	3.00	220	18.2	2800	79	0.95	2.5	1.8	110
ML711-4	0.25	220	1.99	1400	62	0.92	2.5	1.8	12
ML712-4	0.37	220	2.81	1400	65	0.92	2.5	1.8	16
ML801-4	0.55	220	4.0	1400	68	0.92	2.5	1.8	21
ML802-4	0.75	220	5.22	1400	71	0.92	2.5	1.8	30
ML90S-4	1.10	220	7.2	1400	73	0.95	2.5	1.8	40
ML90L-4	1.50	220	9.57	1400	75	0.95	2.5	1.8	55
ML100L1-4	2.20	220	13.9	1400	76	0.95	2.5	1.8	80
ML100L2-4	3.00	220	18.6	1400	77	0.95	2.5	1.8	110
