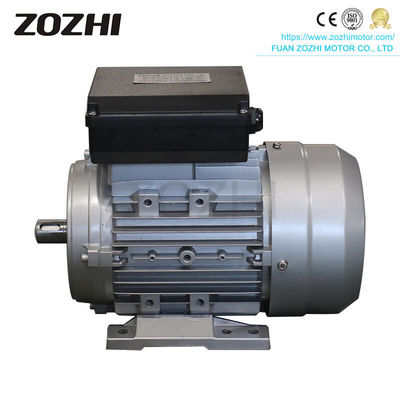

Single Phase Induction Motor Providing and Energy Performance for Commercial Coffee Machines and Industrial Equipment

Place of Origin	FUAN CHINA
Brand Name	ZOZHI
Certification	CE,ISO
Model Number	ML801-4
Minimum Order Quantity	10pcs
Price	negotiated
Packaging Details	Packed in cartons,veneer case or wooden case.
Delivery Time	25 working days after received your payment
Payment Terms	T/T, L/C
Supply Ability	10000pcs/month

Product Details

Model	ML801-4	Power	0.75kw
Voltage	220V	Pole	4 Pole
Protection Class	IP54	Insulation Class	H
Duty	S1	Product Name	Single Phase Induction Motor
Highlight	single phase induction motor for coffee machines , energy efficient single phase induction motor , industrial single phase induction motor

Leave a Message

Product Description

Single Phase Induction Motor for Commercial Coffee Machines and Industrial Equipment

High-performance single-phase AC induction motor specifically designed for commercial coffee machines and industrial applications. Features high torque output with low noise operation for reliable performance in demanding environments.

Key Features

High Efficiency: IE1 rated for energy-saving performance
Wide Voltage Range: Operates on both 110V and 220V for flexibility
Various Power Options: Available in 1/3HP, 1/2HP, 3/4HP, 1HP, and 1.5HP
International Standards: Meets global motor design requirements
Aluminum Housing: Durable and corrosion-resistant construction

Technical Specifications

Parameter	Specification
Phase	Single-Phase
AC Voltage	110/220V
Power	1/3HP, 1/2HP, 3/4HP, 1HP, 1.5HP
Rated Speed	1800RPM
Type	Induction Motor
Motor Mounting Type	Foot Mount
Protect Feature	71/80/90
Efficiency	IE1
Warranty	1 Year
Model Number	ML71, ML80, ML90
Brand Name	ZOZHI
Place of Origin	Fujian, China
Frequency	50/60Hz
Product Name	ZOZHI Electric Motor
Certificate	CE
Color	Customised
Protection Class	IP54
Housing	Aluminum
Cooling Method	IC411
Duty	S1
Insulation Class	B/F
Winding	100% Copper Wire
Package	Carton

Performance Data

Model	Power (KW)	Voltage (V)	Current (A)	Speed (r/min)	Efficiency (%)	P.F.	Tstart/Tn	Tmax/Tn	Ist/In (A)
ML711-2	0.37	220	2.73	2800	67	0.92	2.3	1.8	16
ML712-2	0.55	220	3.88	2800	70	0.92	2.5	1.8	21
ML801-2	0.75	220	5.15	2800	72	0.92	2.5	1.8	30
ML802-2	1.10	220	7.02	2800	75	0.95	2.5	1.8	40
ML90S-2	1.50	220	9.44	2800	76	0.95	2.5	1.8	55
ML90L-2	2.20	220	13.67	2800	77	0.95	2.5	1.8	80
ML100L-2	3.00	220	18.2	2800	79	0.95	2.5	1.8	110
ML711-4	0.25	220	1.99	1400	62	0.92	2.5	1.8	12
ML712-4	0.37	220	2.81	1400	65	0.92	2.5	1.8	16
ML801-4	0.55	220	4.0	1400	68	0.92	2.5	1.8	21
ML802-4	0.75	220	5.22	1400	71	0.92	2.5	1.8	30
ML90S-4	1.10	220	7.2	1400	73	0.95	2.5	1.8	40
ML90L-4	1.50	220	9.57	1400	75	0.95	2.5	1.8	55
ML100L1-4	2.20	220	13.9	1400	76	0.95	2.5	1.8	80
ML100L2-4	3.00	220	18.6	1400	77	0.95	2.5	1.8	110
