Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor

Place of Origin	CHINA
Brand Name	ZOZHI
Model Number	MS112M2-4

Product Details

Protection Grade	IP23/IP44/IP54	Efficiency	≥IE2
Rated Output	0.12KW-315KW	Rated Voltage	220V/380V/440V/550V/660V
Mounting Type	IMB3/IMB5	Rated Speed	750-3000r/min
Rated Frequency	50Hz/60Hz	Phase	3
Highlight	3kW three-phase waterproof induction motor , high efficiency AC induction motor , energy-saving 3-phase motor with warranty

Leave a Message

Product Description

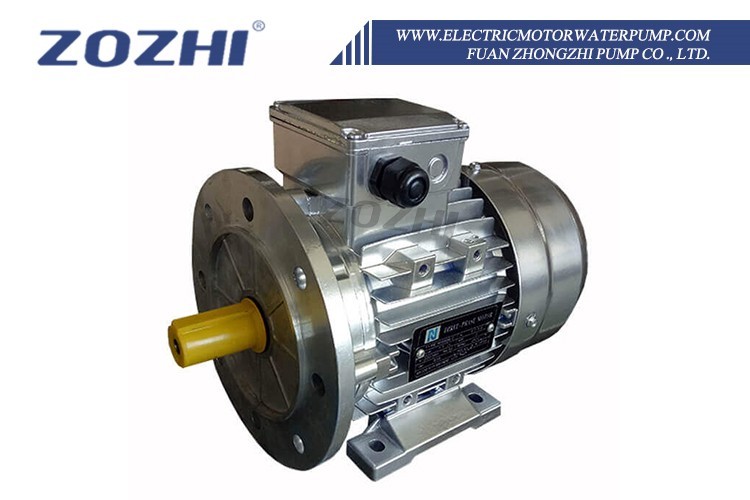

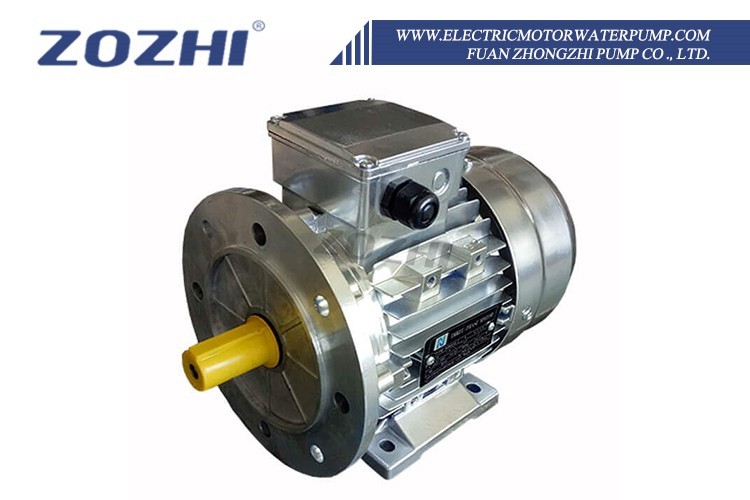

Energy-Saving 3kW Three-Phase Waterproof High Efficiency AC Induction Motor

Product Overview

ZOZHI 380V/440V Three-Phase IE3 Efficiency Waterproof Flange Mount Asynchronous Motor. This energy efficient three-phase induction motor is rated at 11KW with 1460RPM and IP55 waterproof protection. Designed specifically for pressure washers and demanding industrial applications.

ZOZHI 112m-4 4kW/5.5HP three-phase waterproof efficient flange mount AC motor. This IE2 standard industrial motor is engineered for demanding applications including pumps, fans, and continuous operation industrial equipment. Features aluminium housing and reliable three-phase induction design.

Key Features

Product Name: 3 Phase Induction Motor
Operating Humidity: ≤90%
Insulation Class: F/H
Noise Level: ≤75dB
Mounting Type: IMB3/IMB5
Rated Speed: 750-3000r/min

Technical Specifications

Product Name	3 Phase Induction Motor
Rated Frequency	50Hz/60Hz
Rated Speed	750-3000r/min
Motor Type	Induction
Rated Output	0.12kW-315kW
Protection Grade	IP23/IP44/IP54
Ambient Temperature	-15℃-40℃
Cooling Method	IC411
Mounting Type	IMB3/IMB5
Phase	3
Rated Voltage	220V/380V/440V/550V/660V
