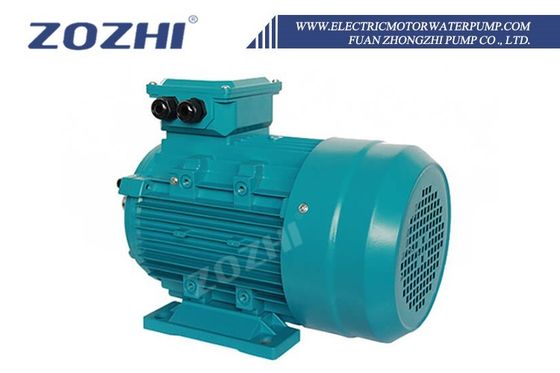

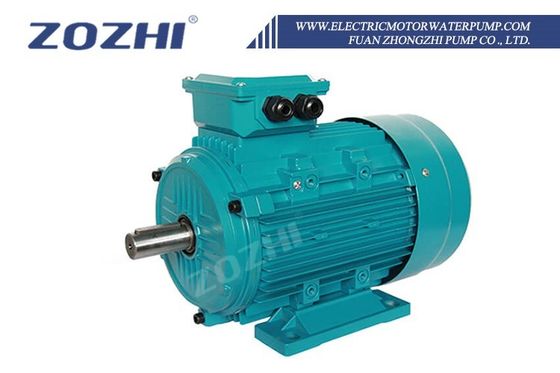

Three-Phase Induction Pump Motor 0.75KW 220/380V 1390 RPM Waterproof Flange Mount IE2 ZOZHI

Place of Origin	CHINA
Brand Name	ZOZHI
Model Number	MS112M2-4

Product Details

Protection Grade	IP23/IP44/IP54	Efficiency	≥IE2
Rated Output	0.12KW-315KW	Rated Voltage	220V/380V/440V/550V/660V
Mounting Type	IMB3/IMB5	Rated Speed	750-3000r/min
Rated Frequency	50Hz/60Hz	Phase	3
Highlight	Three-Phase Induction Pump Motor 0.75KW , Flange Mount Waterproof Induction Motor , IE2 3 Phase Motor 220/380V

Leave a Message

Product Description

Three-Phase Induction Pump Motor 0.75KW 220/380V 1390 RPM Waterproof Flange Mount IE2 ZOZHI

Product Overview

This IP55 waterproof industrial motor delivers reliable performance with 50Hz/60Hz frequency compatibility and exceptional service life. Engineered for demanding applications including pumps, fans, and continuous operation industrial equipment.

The 112M-4 4kW/5.5HP Three-Phase AC Motor from the IE2 standard series features an aluminium housing and flange mount design. This industrial motor is built for reliable performance in demanding applications with output ratings from 0.12kW to 315kW.

Key Features

Product Name: 3 Phase Induction Motor
Operating Humidity: ≤90%
Insulation Class: F/H
Noise Level: ≤75dB
Mounting Type: IMB3/IMB5
Rated Speed: 750-3000r/min

Technical Specifications

Product Name	3 Phase Induction Motor
Rated Frequency	50Hz/60Hz
Rated Speed	750-3000r/min
Motor Type	Induction
Rated Output	0.12kW-315kW
Protection Grade	IP23/IP44/IP54
Ambient Temperature	-15℃-40℃
Cooling Method	IC411
Mounting Type	IMB3/IMB5
Phase	3
Rated Voltage	220V/380V/440V/550V/660V
