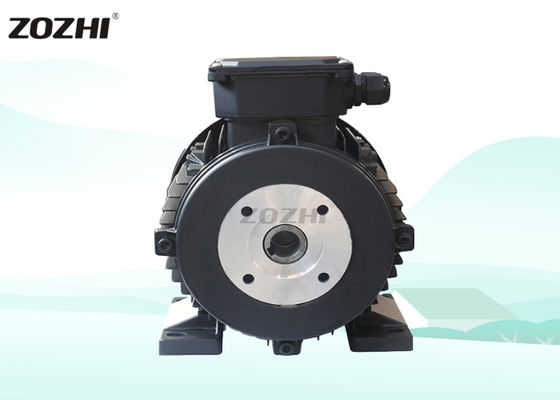

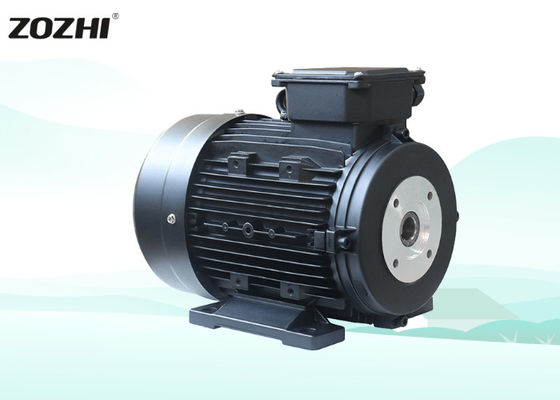

ZOZHI IE3 Series 1hp 1.5hp 2hp 3hp 4hp 5.5hp 1.5KW Three Phase Motor 1400rpm Asynchronous Induction AC Electric Motor
Product Details
| Rated Frequency | 50Hz/60Hz | Mounting Type | IMB3/IMB5 |
|---|---|---|---|
| Noise Level | ≤75dB | Efficiency | ≥IE2 |
| Rated Voltage | 220V/380V/440V/550V/660V | Altitude | ≤1000m |
| Insulation Class | F/H | Motor Type | Induction |
| Highlight | 1.5KW three phase induction motor,IE3 asynchronous AC electric motor,5.5hp industrial induction motor |
||
Product Description
ZOZHI IE3 Series Three Phase Asynchronous Induction AC Electric Motor
380V/440V Three-Phase Motor for Pressure Washer Applications
ZOZHI 5.5kW 7.42HP 380V/440V Three-Phase IE3 High Efficiency Waterproof Flange Motor
Product Overview
The Hollow Shaft Motor is an ideal choice for high-pressure pumps, pressure washing machines and other industrial applications. Featuring a lightweight aluminum alloy housing, this three-phase asynchronous motor offers reliable performance with a rated power of 7.5KW and a rated torque of 2.2N.m. Its FAN cooling method ensures maximum safety and efficiency, and its weight of only 2.5kg makes it easy to install and transport.
Technical Specifications
| AC Voltage | 380V/440V |
|---|---|
| Phase | Three-Phase |
| Rated Power | 7.5 kW |
| Rated Speed | 1440 RPM |
| Model Number | HS-132S2-4 |
| Brand Name | SHNISON |
| Place of Origin | FUJIAN, China |
| Motor Mounting Type | Flange |
| Warranty | 1 year |
| Efficiency | IE 2 |
| Frame | No Frame |
| Frequency | 50Hz/60Hz |
| Protect Feature | Waterproof |
| Type | Asynchronous Motor |
| Material | Aluminum |
| Winding | 100% Copper Wire |
| Poles | 4 Poles |
Packaging Information
| Selling Units | Single item |
|---|---|
| Package Size | 65*40*43 cm |
| Gross Weight | 57.000 kg |
Key Features
- Product Name: Hollow Shaft Motor
- Rated Power: 0.55KW
- Rated Torque: 2.2N.m
- Housing Material: Aluminum Alloy
- Insulation Class: F
- Weight: 2.5kg
- Application: Ideal for three phase asynchronous motor, high pressure pump and pressure washing machine
Applications
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Competitive Advantages
- High-Efficiency Motor: High-standard material with 100% output
- Popular Motor: Get good feedback from customer
- OEM & ODM: Customized service
- Direct Manufacturer: 24 hours online service
- 3 Years Warranty: Almost without any after service
- 7 Days Shipment: Stock Material
Related Products
Hollow Shaft Motor Three Phase Motor
Hollow Shaft Motor Single Phase Motor
Solid Shaft Motor 3 Phase Motor
Solid Shaft Motor Mono phase Motor
Solid Shaft Motor AC induction single-phase motor
Electric Centrifugal Switch For Single Phase Motor
Factory Overview
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE |
|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 2920 | 0.88 | 86 | 400 | 21.8 |
Installation Dimensions
| FRAME | FLANGE | FRAME |
|---|---|---|
| 90L | 75/87 | 90/61 |
| 100L | 75/87 | 90/61 |
| 112M | 75/87 | 90/61 |
| 132S | 87 | 61 |
| 132M | 87 | 61 |
| 160M | 87 | 61 |
Warranty Information
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certifications
Frequently Asked Questions
Q: What's the MOQ?
A: A trial sample order is ok.
Q: Are you a factory or trading company?
A: Manufacturer. Focus on motors for more than 15 years.
Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
Q: How can I get the sample?
A: Usually, we suggest express for samples.
Q: What's the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
