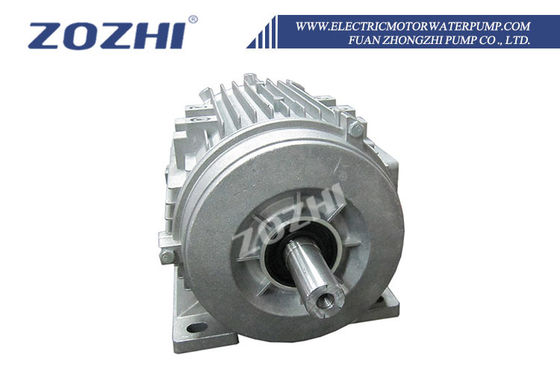

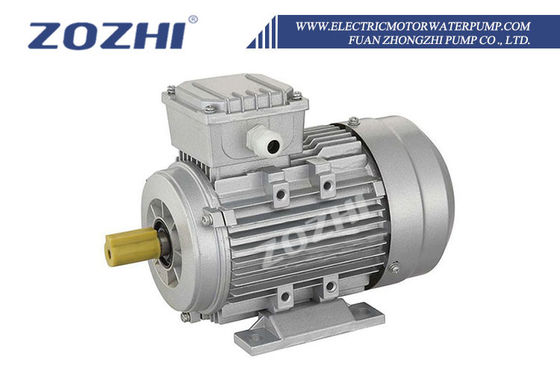

High Efficiency Low Noise IP55 Protected IE2 Three Phase Induction Motor for Industrial Applications
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | IE2-90L-4 |
| Minimum Order Quantity | 10PCS |
| Price | $170 |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000pcs/month |
Product Details
| Product Name | IE2 Motor | Application | Drivng |
|---|---|---|---|
| Power | 1.5KW | Pole | 4 |
| Phase | Three Phase | Housing | Cast Iron |
| Insulation Class | B,F | Protection | IP55 |
| Rated Voltage | 380V | Duty | S1(continuous) |
| Highlight | High Efficiency IE2 Motor,Low Noise Three Phase Induction Motor,IP55 Protected Asynchronous Motor |
||
Product Description
ZOZHI YE3 IE2 High-Efficiency Electric Motor
Y2 IE2 series three-phase asynchronous motors are engineered to meet high energy efficiency standards, supporting national energy conservation initiatives for manufacturing industries. These motors feature optimized design for superior performance and reliability.
Key Specifications
Rated Voltage: 380V, 400V, 415V, 440V, 660V
Rated Frequency: 50Hz, 60Hz
Rotational Speed: 910-2970 RPM
Optional Features: Explosion-proof and variable frequency capabilities
Product Features
- High operational efficiency
- Low noise operation
- Energy-saving design
- Compact and robust construction
- Easy installation and maintenance
Operating Conditions
Working Temperature: -15°C to 40°C
Maximum Altitude: ≤1000m
Rated Voltage Range: 380-660V
Frequency Range: 50-60Hz
Duty Type: S1 (Continuous)
Insulation Class: F
Protection Class: IP55 (Water and dust resistant)
Cooling Method: IC411
Applications
- Machine tools and industrial equipment
- Fans and blowers
- Water pumps and pumping systems
- Reducers and compressors
- Transportation machinery
- Agricultural machinery
- Food processing and packaging equipment
Technical Performance Data
| NO. | Type | kW | Speed (r/min) | Amps (A) | EFF. (%) | P.F. (cos φ) | LRT/RLT | LRA/RLA | BDT/RLT | Noise LwdB | Voltage (V) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | IE2-801-2 | 0.75 | 2850 | 1.7 | 77.4 | 0.82 | 2.3 | 6.8 | 2.3 | 62 | 400 |
| 2 | IE2-802-2 | 1.1 | 2870 | 2.4 | 79.6 | 0.83 | 2.3 | 7.1 | 2.3 | 62 | 400 |
| 3 | IE2-90S-2 | 1.5 | 2880 | 3.2 | 81.3 | 0.84 | 2.3 | 7.3 | 2.3 | 67 | 400 |
| 4 | IE2-90L-2 | 2.2 | 2880 | 4.5 | 83.2 | 0.85 | 2.3 | 7.6 | 2.3 | 67 | 400 |
| 5 | IE2-100L1-2 | 3 | 2880 | 5.9 | 84.6 | 0.87 | 2.2 | 7.8 | 2.3 | 74 | 400 |
| 6 | IE2-112M-2 | 4 | 2900 | 7.6 | 85.8 | 0.88 | 2.3 | 8.1 | 2.3 | 77 | 400 |
| 7 | IE2-132S1-2 | 5.5 | 2910 | 10.4 | 87 | 0.88 | 2.2 | 8.2 | 2.3 | 79 | 400 |
| 8 | IE2-132S2-2 | 7.5 | 2910 | 13.8 | 88.1 | 0.89 | 2.2 | 7.8 | 2.3 | 79 | 400 |
| 9 | IE2-160M1-2 | 11 | 2940 | 20 | 89.4 | 0.89 | 2.2 | 7.9 | 2.3 | 81 | 400 |
| 10 | IE2-160M2-2 | 15 | 2940 | 26.9 | 90.3 | 0.89 | 2.2 | 8 | 2.3 | 81 | 400 |
| 11 | IE2-160L-2 | 18.5 | 2940 | 33 | 90.9 | 0.89 | 2.2 | 8 | 2.3 | 81 | 400 |
| 12 | IE2-180M-2 | 22 | 2950 | 39.1 | 91.3 | 0.89 | 2.2 | 8.1 | 2.3 | 83 | 400 |
| 13 | IE2-200L1-2 | 30 | 2960 | 52.9 | 92 | 0.89 | 2 | 7.5 | 2.3 | 84 | 400 |
| 14 | IE2-200L2-2 | 37 | 2960 | 64.9 | 92.5 | 0.89 | 2 | 7.5 | 2.3 | 84 | 400 |
| 15 | IE2-225M-2 | 45 | 2960 | 78.6 | 92.9 | 0.89 | 2.2 | 7.5 | 2.3 | 86 | 400 |
| 16 | IE2-250M-2 | 55 | 2970 | 96 | 93.2 | 0.89 | 2.2 | 7.6 | 2.3 | 89 | 400 |
| 17 | IE2-280S-2 | 75 | 2975 | 130 | 93.8 | 0.89 | 2 | 6.9 | 2.3 | 91 | 400 |
| 18 | IE2-280M-2 | 90 | 2975 | 155 | 94.1 | 0.89 | 2 | 6.9 | 2.3 | 91 | 400 |
| 19 | IE2-315S-2 | 110 | 2975 | 187 | 94.3 | 0.9 | 2 | 7 | 2.2 | 92 | 400 |
| 20 | IE2-315M-2 | 132 | 2975 | 224 | 94.6 | 0.9 | 2 | 7 | 2.2 | 92 | 400 |
| 21 | IE2-315L1-2 | 160 | 2975 | 268 | 94.8 | 0.91 | 2 | 7.1 | 2.2 | 92 | 400 |
| 22 | IE2-315L2-2 | 200 | 2975 | 334 | 95 | 0.91 | 2 | 7.1 | 2.2 | 92 | 400 |
| 23 | IE2-355M-2 | 250 | 2980 | 418 | 95 | 0.91 | 1.6 | 7.1 | 2.2 | 100 | 400 |
| 24 | IE2-355L-2 | 315 | 2980 | 526 | 95 | 0.91 | 1.6 | 7.2 | 2.2 | 100 | 400 |
Product Images
Shipping Information
Delivery typically occurs within 25-30 days. For optimal protection during transit, we recommend palletized packaging for loose goods to prevent damage.
