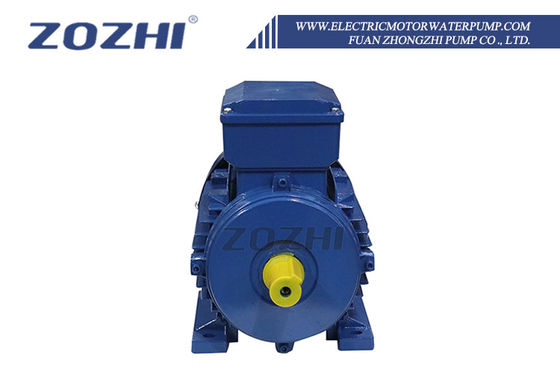

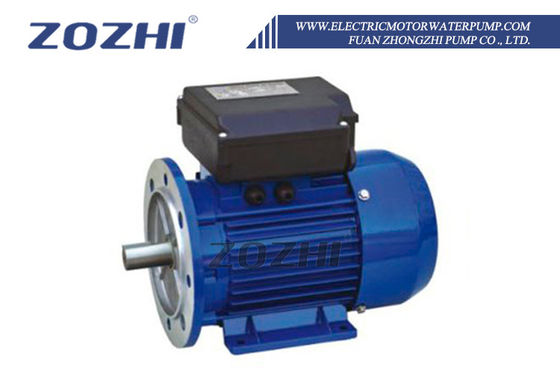

High Efficiency 0.75KW Three-Phase Induction Motor with IP44 Waterproof Flange Mount for Industrial Applications

Place of Origin	FUAN CHINA
Brand Name	ZOZHI
Certification	CE,ISO
Model Number	MS802-4
Minimum Order Quantity	10pcs
Price	46.5-53.8
Packaging Details	Packed in cartons,veneer case or wooden case.
Delivery Time	25 working days after received your payment
Payment Terms	L/C,T/T
Supply Ability	10000pcs/month

Product Details

Product Name	AC Motor	Application	Drivng
Power	0.75kw	Pole	4
Phase	Three Phase	Housing	Aluminum
Insulation Class	B,F	Protection	IP44 / IP54
Rated Voltage	380V	Duty	S1(continuous)
Highlight	0.75KW Three-Phase Induction Motor , IP44 Waterproof AC Motor , Flange Mount Electric Motor

Leave a Message

Product Description

High Efficiency Three-Phase Motor 0.55KW 1430RPM IP44 Waterproof Flange Mount IE2

MS802-2 0.75kw/400V Electric Motor with 100% Copper Wire

This industrial electric motor features 100% copper windings and is designed for reliable performance in demanding applications such as small pumps.

Custom Motor Design Options

Motors with different voltage, frequency, and power specifications
Various insulation levels and protection ratings
Left-hand configuration, double extension shaft, and custom shaft designs
High temperature resistant and low-temperature resistant models
Plateau and outdoor motor variants
Capacity-enhancing motors with different service factors
Motors equipped with heaters, bearing temperature measurement, winding temperature monitoring, and thermal protection switches
Motors with photoelectric encoders, insulated bearings, or insulated bearing structures

Technical Specifications

Model	Power (HP)	Power (KW)	Voltage (V)	Frequency (HZ)	Current (A)	Power Factor	Efficiency (%)	Speed (r/min)	Tstart/Tn	Tmax/Tn	Ist/In
MS561-2	0.12	0.09	380	50	0.3	0.76	60	2750	2.3	2.4	6
MS562-2	0.16	0.12	380	50	0.37	0.78	63	2750	2.3	2.4	6
MS631-2	0.25	0.18	380	50	0.53	0.75	69	2800	2.2	2.4	4.5
MS632-2	0.33	0.25	380	50	0.68	0.78	72	2800	2.2	2.4	4.5
MS711-2	0.5	0.37	380	50	0.98	0.8	73	2800	2.2	2.4	4.5
MS712-2	0.75	0.55	380	50	1.35	0.82	75	2800	2.2	2.4	4.5
MS801-2	1	0.75	380	50	1.75	0.85	76	2800	2.2	2.4	4.5
MS802-2	1.5	1.1	380	50	2.55	0.85	77	2800	2.2	2.4	4.5
MS90S-2	2	1.5	380	50	3.36	0.87	78	2800	2.2	2.4	4.5
MS90L-2	3	2.2	380	50	4.93	0.87	78	2800	2.2	2.4	5
MS100L-2	4	3	380	50	6.31	0.87	83	2880	2.3	2.4	7
MS112M-2	5.5	4	380	50	8.12	0.88	85	2890	2.3	2.4	7
