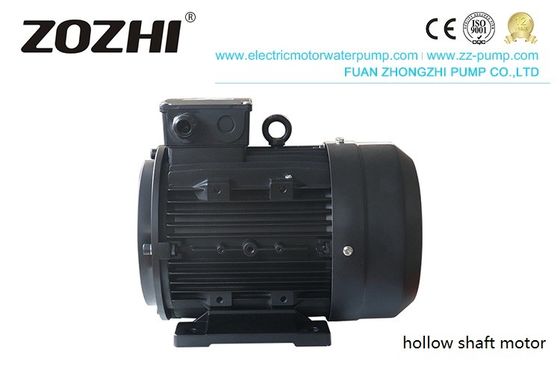

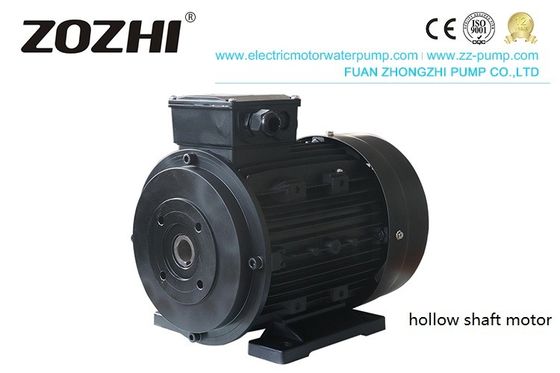

Waterproof 0.75kW Three-Phase Induction Motor with F-Class Insulation and Flange Mounting
Product Details
| Rated Frequency | 50Hz/60Hz | Mounting Type | IMB3/IMB5 |
|---|---|---|---|
| Noise Level | ≤75dB | Efficiency | ≥IE2 |
| Rated Voltage | 220V/380V/440V/550V/660V | Altitude | ≤1000m |
| Insulation Class | F/H | Motor Type | Induction |
| Highlight | Waterproof Flange AC Motor,F-Class Insulation Three-Phase Induction Motor,0.75kW Hollow Shaft Motor |
||
Product Description
Three-Phase IE2 High Efficiency 0.75kW Waterproof Flange AC Motor
The Hollow Shaft Motor is engineered for high-pressure pumps, pressure washing machines, and demanding industrial applications. Featuring a lightweight aluminum alloy housing, this three-phase asynchronous motor delivers reliable performance with F-class insulation and efficient FAN cooling system.
Key Specifications
| AC Voltage | 380V/440V |
| Phase | Three-Phase |
| Rated Power | 7.5 kW |
| Rated Speed | 1440 RPM |
| Model Number | HS-132S2-4 |
| Efficiency | IE2 |
| Frequency | 50Hz/60Hz |
| Protection | Waterproof |
| Mounting Type | Flange |
| Insulation Class | F |
| Material | Aluminum Alloy |
| Winding | 100% Copper Wire |
| Poles | 4 Poles |
Product Features
- Hollow shaft design for direct coupling
- Rated power: 7.5 kW
- Lightweight aluminum alloy housing (2.5kg)
- F-class insulation for enhanced durability
- Efficient FAN cooling system
- Waterproof protection for harsh environments
- Ideal for high-pressure pumps and pressure washing machines
Applications
The direct coupling between the motor and high-pressure pump makes this motor ideal for pressure cleaners and washing plants. This configuration significantly reduces the machine's overall size while providing a reliable and cost-efficient solution. We offer a wide range of flanges and shafts suitable for direct coupling with most pumps on the market.
Product Advantages
- High-efficiency motor with 100% output using high-standard materials
- Proven performance with positive customer feedback
- OEM & ODM customization services available
- Direct manufacturer support with 24-hour online service
- 3-year warranty with minimal after-service requirements
- 7-day shipment with stock materials
Related Products
Hollow Shaft Motor Three Phase Motor
Hollow Shaft Motor Single Phase Motor
Solid Shaft Motor 3 Phase Motor
Solid Shaft Motor Mono phase Motor
Solid Shaft Motor AC induction single-phase motor
Electric Centrifugal Switch For Single Phase Motor
Factory Overview
Customer Feedback
Technical Data - Three-Phase Hollow Shaft Motor 400V 50Hz
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE |
|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 2820 | 0.86 | 78 | 400 | 6.6 |
Installation Dimensions
| FRAME | FLANGE | FRAME DIMENSIONS |
|---|---|---|
| 90L | 75/87 | 90/61 |
| 100L | 75/87 | 90/61 |
Warranty & Support
Guaranteed for 3 years from shipped on board date. During the warranty period, we provide free replacement of defective parts caused by production or material quality issues. After expiration, we continue to offer cost-effective spare parts for maintenance.
Certifications
Frequently Asked Questions
1. What's the MOQ? 2. Are you a factory or trading company?
A trial sample order is acceptable. We are a manufacturer with over 15 years of experience in motor production.
3. Can you accept using our logo? 4. How can I get the sample?
Yes, we provide OEM services. We typically recommend express shipping for samples.
5. What's the warranty period? 6. What are your terms of payment?
3 years from shipped on board date. Payment terms: 30% advance payment, balance before shipment.
