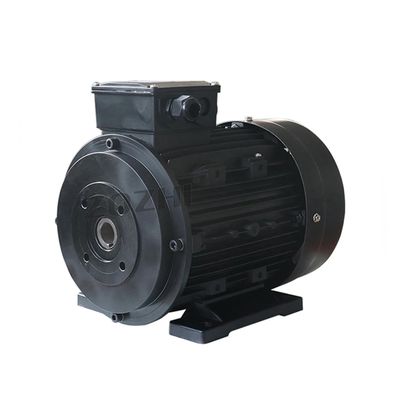

ZOZHI 5.5kW 7.42HP 380V/440V Three-Phase IE3 High Efficiency Waterproof Flange Motor for Pressure Washer Applications
Product Details
| Rated Frequency | 50Hz/60Hz | Mounting Type | IMB3/IMB5 |
|---|---|---|---|
| Noise Level | ≤75dB | Efficiency | ≥IE2 |
| Rated Voltage | 220V/380V/440V/550V/660V | Altitude | ≤1000m |
| Insulation Class | F/H | Motor Type | Induction |
| Highlight | 5.5kW 380V three-phase flange motor,7.42HP waterproof induction motor,IE3 high efficiency pressure washer motor |
||
Product Description
ZOZHI 5.5kW 7.42HP 380V/440V Three-Phase IE3 High Efficiency Waterproof Flange Motor
Product Overview
The Hollow Shaft Motor is an ideal choice for high-pressure pumps, pressure washing machines and other industrial applications. Featuring a lightweight aluminum alloy housing, this three-phase asynchronous motor offers reliable performance with a rated power of 7.5KW and a rated torque of 2.2N.m. Its FAN cooling method ensures maximum safety and efficiency, and its weight of only 2.5kg makes it easy to install and transport.
Technical Specifications
AC Voltage
380V/440V
Phase
Three-Phase
Rated Power
7.5 kW
Rated Speed
1440 RPM
Model Number
HS-132S2-4
Brand Name
SHNISON
Place of Origin
FUJIAN, China
Motor Mounting Type
Flange
Warranty
1 year
Efficiency
IE 2
Frame
No Frame
Frequency
50Hz/60Hz
Protect Feature
Waterproof
Type
Asynchronous Motor
Material
Aluminum
Winding
100% Copper Wire
Poles
4 Poles
Packaging Information
Selling Units
Single item
Package Size
65×40×43 cm
Gross Weight
57.000 kg
Key Features
- Product Name: Hollow Shaft Motor
- Rated Power: 0.55KW
- Rated Torque: 2.2N.m
- Housing Material: Aluminum Alloy
- Insulation Class: F
- Weight: 2.5kg
- Application: Ideal for three phase asynchronous motor, high pressure pump and pressure washing machine
Applications
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Competitive Advantages
- High-Efficiency Motor with high-standard material for 100% output
- Popular motor design with excellent customer feedback
- OEM & ODM Customized service available
- Direct manufacturer with 24 hours online service
- 3 Years Warranty with minimal after-service requirements
- 7 days shipment with stock material availability
Related Products
Hollow Shaft Motor Three Phase Motor
Hollow Shaft Motor Single Phase Motor
Solid Shaft Motor 3 Phase Motor
Solid Shaft Motor Mono phase Motor
Solid Shaft Motor AC induction single-phase motor
Electric Centrifugal Switch For Single Phase Motor
Factory Overview
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COS φ | EFF.% | VOLT | AMPERE |
|---|---|---|---|---|---|---|
| HS90L1-2 | 2.2 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 2900 | 0.86 | 84 | 400 | 15.4 |
Installation Dimensions
| FRAME | FLANGE | FRAME DIMENSIONS |
|---|---|---|
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Warranty Information
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certifications
Frequently Asked Questions
1. Q: What's the MOQ? 2. Q: Are you a factory or trading company?
A: A trial sample order is ok. A: Manufacturer. Focus on motors for more than 15 years.
3. Q: Can you accept using our logo? 4. Q: How can I get the sample?
A: Yes, we can do OEM for you. A: Usually, we suggest express for samples.
5. Q: What's the warranty period? 6. Q: What are your terms of payment?
A: 3 years from shipped on board date. A: 30% advance payment, balance before shipment.
