Plastic Electronic Centrifugal Switch Motor Accessory 115V 50/60Hz CE Certified for Electric Motors
Product Details
| Highlight | Plastic Electronic Centrifugal Switch,115V 50/60Hz Motor Accessory,CE Certified ECS |
||
|---|---|---|---|
Product Description

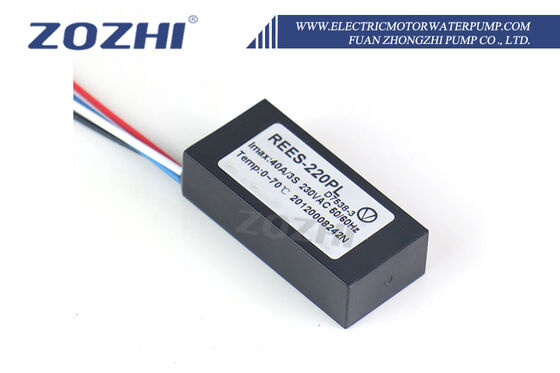

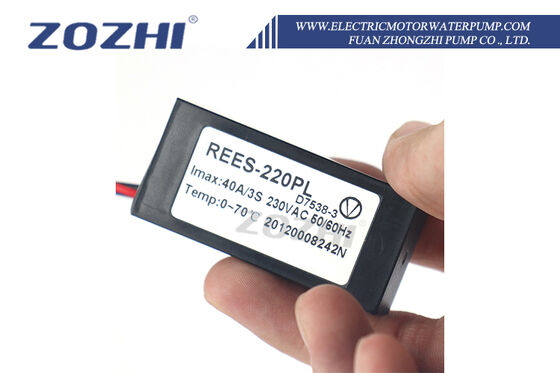

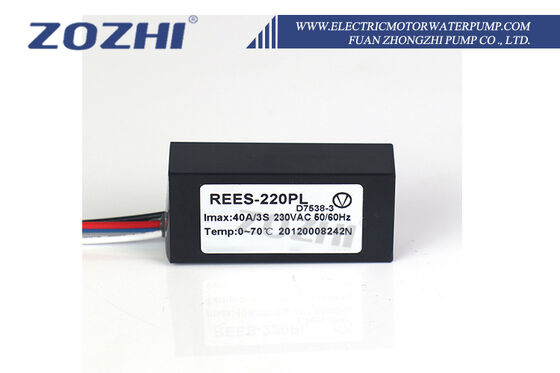

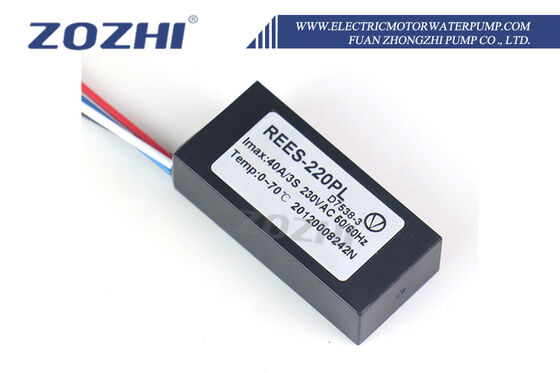

REES-220PL Plastic Electronic Centrifugal Switch Motor Accessory
115V 50/60Hz 28mm Shaft CE Certified Electronic Centrifugal Switch
Product Specifications
| Model Number | REES-220PL |
| Brand Name | ZOZHI |
| Maximum Current | 40A/3S |
| Rated Voltage | 230V |
| Operating Temperature | 0-70℃ |
| Frequency | 50/60Hz |
| Material | Plastic |
| Dimensions | 5.5*1.5*2.6cm |
Advanced Electronic Centrifugal Switch Technology
Traditional single-phase AC motors have relied on mechanical centrifugal switches for decades, transitioning from start windings to main windings. These mechanical switches face challenges including tolerance build-up, mechanical fatigue, vibration, and electrical sparking. Motor failures in normal operating conditions often result from the degradation of these mechanical components.
The Electronic Centrifugal Switch (ECS) represents a reliable solid-state solution that replicates the functions of conventional centrifugal switches while providing the additional benefits of electronic technology. The ECS continuously monitors speed voltage/current and phase, with an internal ASIC controlling the switching operation. At the cut-off point, motor speed typically accelerates to 60-80% of synchronous speed. During overload conditions or when motor speed decreases to approximately 20-40% of synchronous speed, the ECS automatically reconnects the starting capacitor.
Key Features & Benefits
- Compact design with small package dimensions
- Extended operational life (1 million cycles)
- Universal switching capability with auto-matching for different motors
- Wide voltage range compatibility: 115V (90V-137V) and 230V (198V-264V)
- Dual frequency support for 50Hz/60Hz applications
- Silent operation with no switching noise or contact trembling
- High compatibility with both general-purpose and application-specific motors
- Easy installation and maintenance, suitable for mounting inside or outside standard motor frames
- Epoxy resin or silicon rubber sealing provides protection against dirt, dust, moisture, and vibration
- Automatic starting capacitor discharge functionality
- Compliant with ROHS, CE, and UL standards
