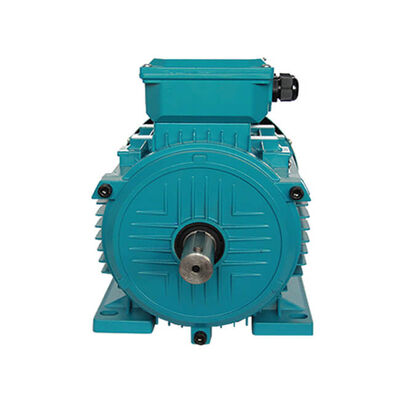

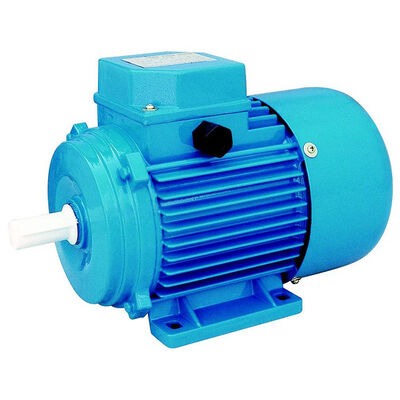

MS Series 3 Phase Induction Motor with Aluminum Housing 3KW/4HP 1400RPM for Industrial Applications
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | MS100L2-4 |
| Minimum Order Quantity | 1pc |
| Price | $35.3~$45.5 |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000pcs/month |
Product Details
| Place Of Origin | China | Model Number | MS-100L2-4 |
|---|---|---|---|
| Type | Asynchronous Motor, Induction Motor | Frequency | 50HZ |
| Phase | 3 Phase Induction Motor | Certification | CCC, CE |
| Protect Feature | Totally Enclosed | AC Voltage | 220V,380V Or On Request |
| Efficiency | IE1,IE2 | Model Name | MS |
| Power | 3KW/4HP | Structure | Asynchronous Motor |
| Protection Class | IP44/IP54 | Color | Black Or Customers' Request |
| Material | Aluminum Housing | Winding | Aluminium Or Copper |
| Highlight | Aluminum Housing 3 Phase Induction Motor,3KW/4HP Asynchronous Motor,1400RPM Induction Motor |
||
Product Description
MS Series Three Phase Motor - Aluminum Casing
Power Range: 0.37-3.7kW (0.09-5.5HP) | Speed: 2800-3000RPM
3 Phase Induction Motor Overview
The MS series three-phase induction motors feature aluminum frame housing and represent the latest renewal and upgrading in motor technology.
Key Features
- High efficiency and energy-saving operation
- High starting torque for demanding applications
- Low noise and minimal vibration
- Reliable operation with easy maintenance
Application Range
MS series motors are suitable for various industrial applications without combustible, explosive, or corrosive gas environments, including machine tools, pumps, fans, transport machinery, mixers, agricultural equipment, and food processing machines.
Technical Specifications
| Model | Power (HP) | Power (KW) | Voltage (V) | Frequency (HZ) | Current (A) | Power Factor | Efficiency (%) | Speed (r/min) | Tstart/Tn | Tmax/Tn | Ist/In |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS100L2-4 | 4 | 3 | 380 | 50 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 2.4 | 7 |
| MS561-2 | 0.12 | 0.09 | 380 | 50 | 0.3 | 0.76 | 60 | 2750 | 2.3 | 2.4 | 6 |
| MS562-2 | 0.16 | 0.12 | 380 | 50 | 0.37 | 0.78 | 63 | 2750 | 2.3 | 2.4 | 6 |
| MS631-2 | 0.25 | 0.18 | 380 | 50 | 0.53 | 0.75 | 69 | 2800 | 2.2 | 2.4 | 4.5 |
| MS632-2 | 0.33 | 0.25 | 380 | 50 | 0.68 | 0.78 | 72 | 2800 | 2.2 | 2.4 | 4.5 |
| MS711-2 | 0.5 | 0.37 | 380 | 50 | 0.98 | 0.8 | 73 | 2800 | 2.2 | 2.4 | 4.5 |
| MS712-2 | 0.75 | 0.55 | 380 | 50 | 1.35 | 0.82 | 75 | 2800 | 2.2 | 2.4 | 4.5 |
| MS801-2 | 1 | 0.75 | 380 | 50 | 1.75 | 0.85 | 76 | 2800 | 2.2 | 2.4 | 4.5 |
| MS802-2 | 1.5 | 1.1 | 380 | 50 | 2.55 | 0.85 | 77 | 2800 | 2.2 | 2.4 | 4.5 |
| MS90S-2 | 2 | 1.5 | 380 | 50 | 3.36 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 4.5 |
| MS90L-2 | 3 | 2.2 | 380 | 50 | 4.93 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 5 |
Product Images
Customer Reviews
Shipping Information
Delivery typically occurs 25-30 days after order confirmation. Goods are securely packed on pallets to prevent damage during transit.
