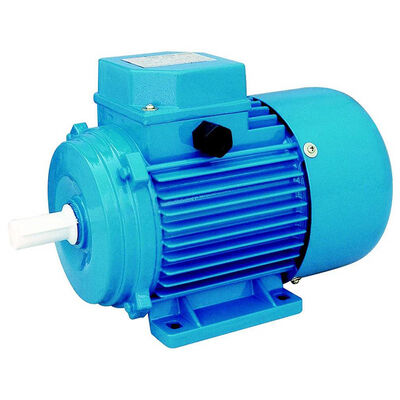

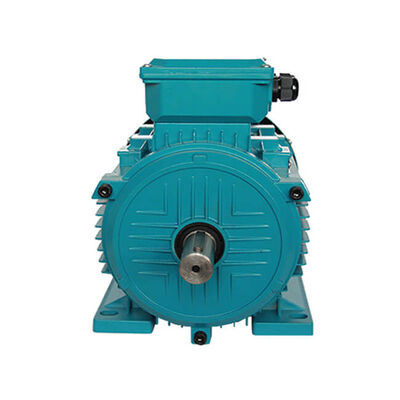

Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection

  • Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection
  • Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection
  • Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-4
Minimum Order Quantity 1pc
Price $37.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C,T/T
Supply Ability 10000pcs/month
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw/1.5Hp Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Highlight

1.1kw 3 Phase Induction Motor

,

Aluminum Housing Electric Motor

,

IP54 Protection Asynchronous Motor
Leave a Message
Product Description
MS Series Three-Phase Induction Motor
Conform to IEC standards and manufactured with selected quality materials, these motors feature the latest design for optimal performance. They offer low noise, minimal vibration, safety, reliable operation, attractive appearance, and lightweight construction. Designed for easy maintenance with simple construction, suitable for general drive applications.
Product Specifications
AC Voltage: 380V
Phase: Three-Phase
Rated Power: 0.18kW
Rated Speed: 1500 RPM
Model Number: MS632-4P-0.18kw
Brand Name: TOPPER
Place of Origin: Zhejiang, China
Motor Mounting: Foot Mount
Warranty: 1 Year
Efficiency: IE 1
Frame: 11 mm
Frequency: 50/60Hz
Protection: Totally Enclosed
Type: Asynchronous Motor
Product Name: High Efficiency Motor
Certification: CCC/CE/ISO9001
Color: Customer Request
Housing: Aluminum Shell
Cooling Method: IC411
Protection Class: IP54/IP55
Insulation Class: BF
Duty: S1 (Continuous)
Winding: 100% Copper Wire
Package: Plywood Box/Carton
Customer Benefits
  • IP55 enclosures with customization options
  • Multiple feet locations for flexible installation
  • Aluminum frame, end shields, and base
  • High strength cable gland
  • Shaft key and protector supplied
  • Superior paint finish
  • Heavy-duty service factors
  • Stainless steel shafts available
  • Continuous S1 duty operation
  • Vacuum impregnated Class B or Class F insulation
  • Custom insulation options available
  • Excellent performance and efficiency
Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 0
Technical Specifications
Model Power HP Power KW Voltage (V) Frequency (HZ) Current (A) Power Factor Efficiency (%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 380 50 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 380 50 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 380 50 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 380 50 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 380 50 1.35 0.82 75 2800 2.2 2.4 4.5
Note: Table shows partial data. Complete technical specifications available for all MS Series models.
Client Reviews
Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 1
Shipping Information
Delivery typically occurs within 25-30 days. For loose goods, we recommend pallet packaging to prevent damage during transit.
Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 2
Product Gallery
Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 3 Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 4 Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 5 Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 6 Wholesale Factory Price 1.1kw 3 Phase Induction Motor with Aluminum Housing and IP54 Protection 7
