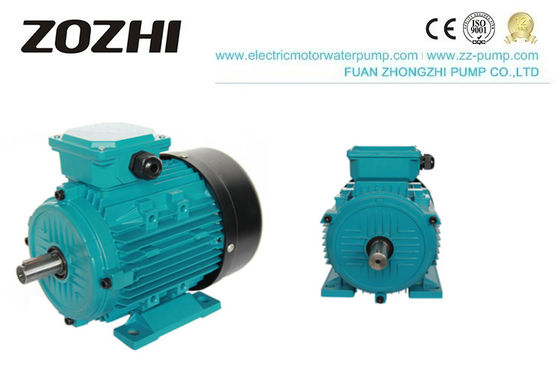

MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection

  • MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection
  • MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection
  • MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-4
Minimum Order Quantity 1pc
Price $37.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C,T/T
Supply Ability 10000pcs/month
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw/1.5Hp Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Highlight

0.75KW Three Phase Induction Motor

,

Aluminum Shell Three Phase Electric Motor

,

IP54 Protection Asynchronous Induction Motor
Leave a Message
Product Description
MS Series Three Phase Induction Motor
Model MS802-4 | 0.75kW/1.0HP | IEC Standard Compliant
Key Specifications
Rated Power 0.75kW/1.0HP
Service Factor 0.75
Supply Voltage 380V
Frequency 60Hz/50Hz
Protection Rating IP54, IP55
Insulation Grade B/F
Efficiency Class IE1
Ambient Temperature -15°C to 40°C
Weight 9.8 kg
Dimensions 33×19×21.5 cm
Product Overview
Conforming to IEC standards and manufactured with selected quality materials, the MS Series Three Phase Induction Motor features the latest design for optimal performance. These motors deliver low noise, minimal vibration, safe and reliable operation, attractive appearance, and lightweight construction for easy maintenance and general drive applications.
Customer Benefits
  • IP55 enclosures with customization options available
  • Multiple feet locations for flexible installation
  • Aluminum frame, end shields, and base for durability
  • High strength cable gland for secure connections
  • Shaft key and protector included for safety
  • Superior paint finish for corrosion resistance
  • Heavy-duty service factors for demanding applications
  • Optional stainless steel shafts available
  • Continuous S1 duty rating for reliable operation
  • Vacuum impregnated Class B or Class F insulation
  • Excellent performance and efficiency
MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 0
Technical Performance Data
Comprehensive specifications for the complete MS Series motor range:
Model Power (HP) Power (kW) Voltage (V) Frequency (Hz) Current (A) Power Factor Efficiency (%) Speed (r/min) Tstart/Tn Tmax/Tn Ist/In
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 380 50 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 380 50 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 380 50 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 380 50 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 380 50 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 380 50 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 380 50 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 380 50 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 380 50 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 380 50 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 380 50 8.12 0.88 85 2890 2.3 2.4 7
Customer Reviews
MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 1
Shipping & Delivery
Delivery typically occurs 25-30 days after order confirmation. For loose goods, we recommend pallet packaging to prevent damage during transit.
MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 2
Application Examples
MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 3 MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 4 MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 5 MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 6 MS Series 0.75KW Aluminum Shell Three Phase Induction Motor with IP54 Protection 7
