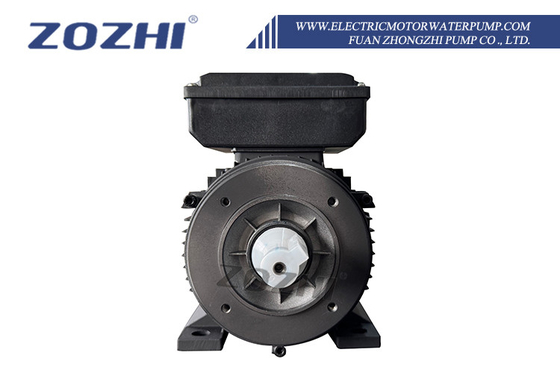

Waterproof 0.09kw 0.12hp Single-Phase Aluminium Housing Induction Motors Capacitor-Run for Agricultural Fields 220v Ac Voltage

  • Waterproof 0.09kw 0.12hp Single-Phase Aluminium Housing Induction Motors Capacitor-Run for Agricultural Fields 220v Ac Voltage
Place of Origin CHINA
Brand Name ZOZHI
Certification CE,CCC,ISO9001
Model Number MY561-2
Minimum Order Quantity 2pieces
Price USD21.6piece
Packaging Details CTNS/Veneer case
Delivery Time 14work days
Payment Terms T/T,L/C
Supply Ability 10000pieces per30days
Product Details
Frequency 50Hz/60Hz Application Bore Well Compressor Driving
Number Of Poles 2 Output 0.12HP /0.09KW
Speed 3000RPM Item Name Single Phase Induction Motor
Structure B3/B35/B5/B14/B34 Protection Class IP55
Ambient Temperature -15 ℃-40℃ Protect Feature Totally Enclosed
Cooling Method ICO9001
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
High Quality Single-Phase AC Induction Electric Motor Capacitor Start Run From 0.5hp to 5.5hp Waterproof Aluminium Housing
Product Specifications
Frequency 50Hz/60Hz
Application Bore well Compressor Driving
Number Of Poles 2
Output 3HP /2.2KW
Speed 3000RPM
Item Name Single Phase Induction Motor
Structure B3/B35/B5/B14/B34
Protection Class IP55
Ambient Temperature -15 ℃-40℃
Protect Feature Totally Enclosed
Cooling Method ICO9001
Product Description

ML series is superior motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality and reliability is demanded.

Working Condition

Ambient temperature: -15℃≤~≤40℃

Altitude: not exceed 1000m

Insulation Class: F

Rated voltage: ±5%

Technology Data
FRAME
SIZE
MOUNTING DIMENSIONS(MM)
OVERALL DIMENSIONS(MM)

IMB14
IMB5
   A    B      C      D     E     F     G    H     K
   M     N      P     R     S     T
  M     N      P   R   S     T
 AB     AC    AD     HD     L
56
  90    71    36      9    20   3   7.2 56  5.8
  65   50      80    0   M5  2.5
100   80   120  0   7    3.0
110   108   100   156   198
63
100   80     40     11   23   4   8.5    63  7
  75   60      90    0   M5  2.5
115   95   140  0  10   3.0
120   119   110   173   216
71
112   90      45    14   30   5   11    71   7
  85   70     105   0   M6  2.5
165  130  200  0  12   3.5
132    137  117   188   250
80
125  100     50   19   40   6  15.5  80 10
100   80     120  0   M6  3.0
165  130  200  0  12   3.5
160    155   137   217  278
90S
140  100     56   24   50   8   20   90  10
 115  95     140  0   M8  3.0
165  130  200  0  12   3.5
175    172   145   235  296
90L
140   125    56   24   50   8   20   90  10
115   95     140  0   M8  3.0
165  130  200  0  12   3.5
175    172   145   235  322
100L
160   140    63   28  60    8   24  100 12
130   110   160  0  M8   3.5
215  180  250  0  15   4.0
198    194   153   253  384


MODEL
Output
Voltange
Current
Full Speed
Eff@Load
Full-Load Power Factor
Ist/In
Break Down Torque
Approx. Weight
(HP)  (KW)
(V)
IN(A)
(RPM)
(%)

(A)
TST/TN TMAX/TN
KG
MY561-2
0.12    0.09
230
0.75
2800
56
0.92
3
0.5      1.7
2.5
MY562-2
0.16     0.12
230
0.94
2800
60
0.92
4
0.5      1.7
3
MY631-2
0.25     0.18
230
1.13
2800
65
0.92
5
0.4      1.7
4.2
MY632-2
0.34     0.25
230
1.79
2800
66
0.92
7
0.4      1.7
4.5
MY711-2
0.5       0.37
230
2.61
2800
67
0.92
10
0.35   1.7
5.7
MY712-2
0.75      0.55
230
3.71
2800
70
0.92
15
0.35   1.7
6.7
MY801-2
 1          0.75
230
4.93
2800
72
0.92
20
0.33   1.7
9.3
MY802-2
1.5         1.1
230
6.71
2800
75
0.95
30
0.33   1.7
10.6
MY90S-2
2          1.5
230
9.03
2800
76
0.95
40
0.3     1.7
13
MY90L-2
3           2.2
230
13.08
2800
77
0.95
65
0.3     1.7
16
MY100L-2
4             3
230
17.8
2800
79
0.95
92
0.3     1.7
25
MY561-4
0.08      0.06
230
0.58
1400
50
0.9
2
0.45   1.7
2.8
MY562-4
0.12      0.09
230
0.83
1400
52
0.9
3
0.45   1.7
3.4
MY631-4
0.16      0.12
230
1.01
1400
57
0.9
3.5
0.4     1.7
4
MY632-4
0.25      0.18
230
1.33
1400
59
0.9
5
0.4     1.7
4.5
MY711-4
0.34      0.25
230
1.93
1400
61
0.92
7
0.35   1.7
5.5
MY712-4
0.5        0.37
230
2.82
1400
62
0.92
10
0.35   1.7
6..5
MY801-4
0.75      0.55
230
4.07
1400
64
0.92
15
0.35   1.7
9.1
MY802-4
1           0.75
230
5.21
1400
68
0.92
20
0.32   1.7
10.4
MY90S-4
1.5         1.1
230
7.13
1400
71
0.95
30
0.32   1.7
13
MY90L-4
2             1.5
230
9.4
1400
73
0.95
40
0.3     1.7
16
MY100L1-4
3             2.2
230
13.6
1400
76
0.95
65
0.3     1.7
22
MY100L2-4
4              3
230
18
1400
77
0.95
88
0.3     1.7
29
