Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade

  • Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade
Place of Origin CHINA
Brand Name ZOZHI
Certification CE
Model Number MS112M2-4
Minimum Order Quantity 2
Price USD158
Packaging Details CTNS/VENEER CASE
Delivery Time 7 DAYS
Payment Terms 100% before shipment
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Protection Grade IP23/IP44/IP54 Cooling Method IC411
Insulation Class F/H Efficiency IE1 IE2 IE3
Ambient Temperature -15℃-40℃ Rated Output 0.06KW-20KW
Motor Type Induction Altitude ≤1000m
Highlight

3 Phase Induction Motor

,

IP44 3 Phase Induction Motor
Leave a Message
Product Description

Product descriptions from the supplier





Overview



Product Description

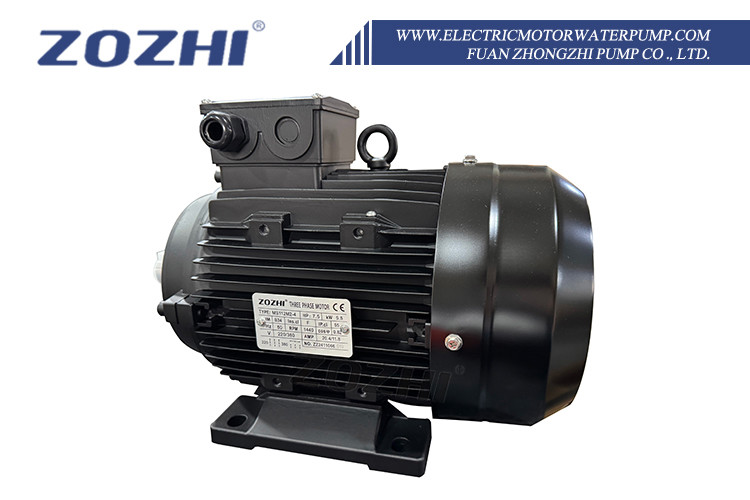

THREE PHASE ASYNCHRONOUS ALUMINUM HOUSING MOTOR
Three phase, MS (IE1/IE2/IE3) series aluminum housing motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality, and relibaility is demanded

Working Condition
Ambient temperature : -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%


Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 0
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 1
MOTER FEATURES
Utilize IP55 enclosures
Removable feet locations
Aluminum frame, end shiields and base
High strength cable gland
Shaft key and protector supplied
Good Performance
Motors made to heavy duty service factors
Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilize Vacuum impregnated
Class F insulation
High performance and efficiency
CUSTOMER BENEFITS
water dust and vermin resistant
Quiet operation
Electricity saving
Easy installation ( bolt-on feet oor brackets as required)
Corrosion resistant
Dependable
Superior life
Reliable in the country, city or factory environments
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 2
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 3
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 4
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 5
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 6
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 7
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 8
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 9
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 10
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 11
Technology Data
FRAME
POWER
KW HP
Voltage
(V)
Current
(A)
COSφ
P.F.
EFF.%
Speed
(r/min)
Tstart/Tn
Tmax/Tn
MS561-4
0.06
0.08
220/380
0.49/0.28
0.58
56
1400
2.3
2.4
MS562-4
0.09
0.12
220/380
0.67/0.39
0.61
58
1400
2.3
2.4
MS631-4
0.12
0.16
220/380
0.84/0.48
0.63
60
1400
2.2
2.4
MS632-4
0.18
0.24
220/380
1.12/0.65
0.66
64
1400
2.2
2.4
MS711-4
0.25
0.33
220/380
1.44/0.83
0.68
67
1400
2.2
2.4
MS712-4
0.37
0.5
220/380
0.94/1.12
0.72
69.5
1400
2.2
2.4
MS801-4
0.55
0.75
220/380
2.69/1.56
0.73
73.5
1400
2.2
2.4
MS802-4
0.75
1
220/380
3.48/2.01
0.75
75.5
1400
2.2
2.4
MS90S-4
1.1
1.5
220/380
4.74/2.75
0.78
78
1400
2.2
2.4
MS90L-4
1.5
2
220/380
6.31/3.65
0.79
79
1400
2.2
2.3
MS100L1-4
2.2
3
220/380
8.6/5.0
0.82
81
1430
2.2
2.3
MS100L2-4
3
4
220/380
11.7/6.8
0.81
82.5
1430
2.2
2.3
MS112M-4
4
5.5
380/660
8.8/5.1
0.82
84.5
1440
2.2
2.2
MS132S-4
5.5
7.5
380/660
12/6.9
0.84
85.5
1440
2.2
2.2
MS132M-4
7.5
10
380/660
15/8.6
0.85
87
1440
2.2
2.2
MS160M-4
11
15
380/660
22.3/12.7
0.85
88
1460
2.2
2.2
MS160L-4
15
20
380/660
30/17.1
0.85
89
1460
2
2.2
MS180M-4
18.5
25
380/660
36.4/20.8
0.85
90.5
1470
2.2
2.2
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 12
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 13
Application
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 14
Packing & Delivery
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 15
Company Profile
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 16
Exhibition
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 17
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 18
Altitude ≤1000m 3 Phase Induction Motor with IP44 Protection Grade 19
FAQ
Q1 Are you a manufacturer or a trading company? We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
