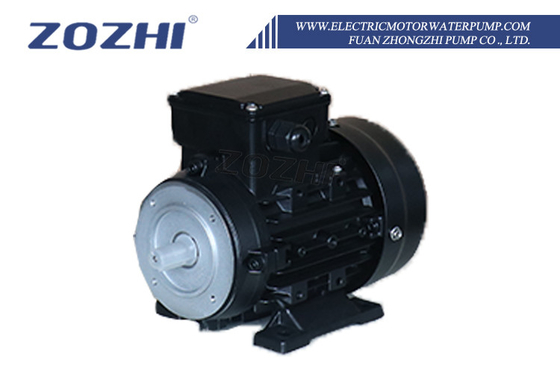

High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure

  • High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure
  • High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS100L1-4
Minimum Order Quantity 1pc
Price $35.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Driving
Power 2.2kw/3Hp Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Flange Size B35
Highlight

High Efficiency Induction Motor

,

11kw Induction Motor

,

High Pressure Induction Motor
Leave a Message
Product Description

Hot Sell High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure

Introduction:
Conform to the IEC standard, be made of selected quality materials, lastest design in entirety, Good performance, low noise, little vibration, and safety and reliable operation, nice appearance, light weight. Be maintained very conveniently, simple construction, Be used for general drive.
Customer Bnefits:
Utilise IP55 enclosures, other requests
Multiple feet locations
Aluminium frame, end shields and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors made to heavy duty service factors Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilise Vacuum impregnated Class B or Class F insulation
Other insulation on request
Excellent performance and efficiency.





Type: MS
Ambient temperature -15--40℃
Altitude ≤1000mm
Frequency 50/60hz ±2%
Voltage 380v ±5%
Protection Class IP54
Insulation Class B
Way of working S1
Place of origin single
Speed range

0-100HZ





3 Phase Induction Motor



Installation size and overall dimension:

Frame Mounting Dimensions(mm)             Frame Dimensions(mm)
  IMB14 IMB5 AB AC AD HD L
Size A B c D E F G H K M N P R S T M N P R S T
56 90 71 36 9 20 3 7.2 56 5.8 65 SO 80 0 M5 2.5 100 80 120 0 7 3 110 120 100 155 195
63 100 80 40 11 23 4 8.5 63 7 75 60 90 0 M5 2.5 115 95 140 0 10 3 125 130 110 173 215
71 112 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 140 150 117 188 246
80 125 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3 165 130 200 0 12 3.5 160 170 135 215 285
90S 140 100 56 24 SO 8 20 90 10 115 95 140 0 M8 3 165 130 200 0 12 3.5 178 185 145 235 335
90L 140 125 56 24 50 a 20 90 10 115 95 140 0 M8 3 165 130 200 0 12 3.5 178 185 145 235 335
100 160 140 63 28 60 8 24 100 12 130 110 160 0 M8 3.5 215 180 250 0 15 4 206 206 150 250 376
112 190 140 70 28 60 8 24 112 12 130 110 160 0 M8 3.5 215 180 250 0 15 4 222 228 170 285 400
132S 216 140 89 38 80 10 33 132 12 165 1B0 200 0 M10 4 265 230 300 0 15 4 257 267 190 325 460
132M 216 178 89 38 80 10 33 132 12 165 130 200 0 M10 4 265 230 300 0 15 4 257 267 190 325 500
160M 254 210 108 42 110 12 37 160 15 215 180 250 0 M12 4 300 250 350 0 19 5 320 330 255 420 615
160L 254 254 108 42 110 12 37 160 15 215 180 250 0 M12 4 300 250 350 0 19 5 320 330 255 420 675


Technical Data:

Model Output(kw) Voltage(v) Frequency(Hz) Rated current(A) Speed(r/min) Eff.(%) Power factor (cos<p) Tstart/Tn (Times)
SPEED 3000RPM 2-POLE 50HZ
MS561-2 0.09 400 50 0.32 2758 59.0 0.68 2.3 2.4
MS562-2 0.12 400 50 0.39 2780 63.0 0.71 2.3 2.4
MS563-2 0.18 400 50 0.50 2780 65.0 0.80 2.3 2.4
MS631-2 0.18 400 50 0.50 2715 65.0 0.80 2.2 2.4
MS632-2 0.25 400 50 0.66 2715 68.0 0.81 2,2 2.4
MS633-2 0.37 400 50 0.94 2715 70.0 0.81 2.5 2.7
MS711-2 0.37 400 50 0.94 2690 70.0 0.81 2.2 2.4
MS712-2 0.55 400 50 1.33 2715 73.0 0.82 2.2 2.4
MS713-2 0.75 400 50 1.81 2700 72.1 0.83 2.6 2.9
MS801-2 0.75 400 50 1.81 2730 72.1 0.83 2.2 2.4
MS802-2 1.10 400 50 2.52 2745 75.0 0.84 2.2 2.4
MS80B-2 1.50 400 50 3.34 2770 77.2 0.84 2.8 3.1
MS90S-2 1.50 400 50 3.34 2770 77.2 0.84 2.2 2.4
MS90L-2 2.20 400 50 4.69 2770 79.7 0.85 2.2 2.4
MS90L1-2 3.00 400 50 6.11 2800 81.5 0.87 3.0 3.2
MS100L-2 3.00 400 50 6.11 2870 81.5 0.87 2.2 2.3
MS100L1-2 4.00 400 50 7.90 2880 83.1 0.88 2.5 2.7
MS112M-2 4.00 400 50 7.90 2890 83.1 0.88 2.5 2.7
MS112M1-2 5.50 400 50 10.65 2900 84.7 0.88 2.5 2.7
MS132S1-2 5.50 400 50 10.65 2910 84.7 0.88 2.5 2.7
MS132S2-2 7.50 400 50 14.30 2900 86.0 0.88 2.5 2.7
MS132M1-2 9.20 400 50 16.95 2910 88.0 0.89 2.5 2.7
MS132M2-2 11.00 400 50 20.36 2920 87.6 0.89 2.5 2.7
MS160M1-2 11.00 400 50 20.36 2950 87.6 0.89 2.0 2.2
MS160M2-2 15.00 400 50 27.43 2970 88.7 0.89 2.0 2.2
MS160L-2 18.50 400 50 33.22 2970 89.3 0.90 2.0 2.2
SPEED 1500RPM 4-POLE 50HZ
MS561-4 0.06 400 50 0,28 1371 53 0.59 2.3 24
MS562-4 0.09 400 50 39 1350 55 0,61 23 2.4
MS563-4 0.12 400 50 42 1380 57 0.72 2.3 24
MS631-4 0.12 400 50 42 1350 S7,0 72 22 2.4
MS632-4 0.18 400 50 0.59 1340 60 0.73 2.2 24
MS633-4 0.25 400 50 75 1350 65-0 74 22 2.4
MS711-4 0.25 400 50 75 1390 65 0.74 2.2 24
MS712-4 0.37 400 50 1.06 1375 67,0 75 22 2.4
MS713-4 0.55 400 50 149 1380 71 0.75 2.2 24
MS801-4 0.55 400 50 149 1370 71,0 75 22 2.4
MS802-4 0.75 400 50 1,98 1380 72.1 76 2.2 24
MS803-4 1.10 400 50 275 1380 75 77 23 2.5
MS90S-4 1.10 400 50 275 1390 75 0.77 2.2 24
MS90L-4 1.50 400 50 3.55 1400 77.2 79 22 2.4
MS90LM 1.85 400 50 433 1400 78 0.79 2.2 2,4
MS90L2-4 2.20 400 50 4,92 1400 79.7 0.81 2.5 27
MS100LM 2.20 400 50 4,92 1430 79.7 0.81 2.2 23
MS100L2-4 3.00 400 50 648 1430 81,S 0,82 22 23
MS100L3-4 4.00 400 50 847 1420 83.1 0.82 2.5 27
MS112M-4 4.00 400 50 847 1430 83.1 0,82 22 23
MS112MM 5.50 400 50 11,29 1435 847 0.83 2.7 3
MS132S-4 5.50 400 50 "•29 1440 847 0,83 22 2.2
MS132M-4 7.50 400 50 14.99 1450 86 0.84 2.2 2,2
MS132LM 9.20 400 50 18,07 1460 87S 0.84 27 3
MS132L2-4 11.00 400 50 21.58 1460 87.6 0.84 2.5 27
MS160M-4 11.00 400 50 21.58 1460 87.6 0.84 2 2.2
MS160L-4 15.00 400 50 2872 1460 887 0.85 2 2,2
SPEED 1000RPM 6-POLE 50HZ
MS631-6 0.09 400 50 0.43 830 50.0 0.61 2.2 2.4
MS632-6 0.12 400 50 0.53 830 53.0 0.62 2.2 2.4
MS711-6 0.18 400 50 0.70 880 56.0 0.66 2.2 2.4
MS712-6 0.25 400 50 0.90 900 59.0 0.68 2.2 2.4
MS801-6 0.37 400 50 1.23 915 62.0 0.70 2.2 2.4
MS802-6 0.55 400 50 1.70 920 65.0 0.72 2.2 2.4
MS90S-6 0.75 400 50 2.15 930 70.0 0.72 2.2 2.2
MS90L-6 1.10 400 50 2.98 930 72.9 0.73 2.2 2.2
MS100L-6 1.50 400 50 3.84 945 75.2 0.75 2.2 2.2
MS112M-6 2.20 400 50 5.38 945 77.7 0.76 2.2 2.2
MS132S-6 3.00 400 50 7.15 960 79.7 0.76 2.0 2.0
MS132M1-6 4.00 400 50 9.33 960 81.4 0.76 2.0 2.0
MS132M2-6 5.50 400 50 12.41 960 83.1 0.77 2.0 2.0
MS160M-6 7.50 400 50 16.60 970 84.7 0.7
7		 2.0 2.0
MS160L-6 11.00 400 50 23.56 970 86.4 0.78 2.0 2.0





Reviews from the client:

High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure 0



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A









​



High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure 2

centrifugal water pump vortex water pump

centrifugal electric water pump

High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure 5

High Pressure Induction High Efficiency 3kw, 4kw 5.5kw 7.5kw, 11kw, 15kw Three Phase Motor for High Pressure 6





INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
