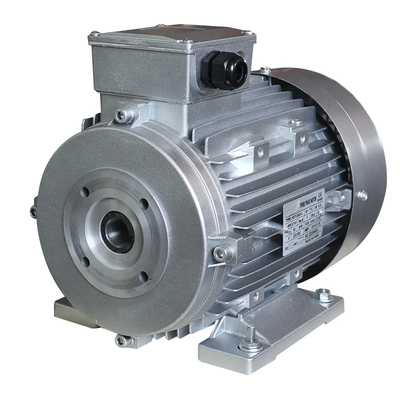

Ie1 Ie2 Ie3 2.2kw 4kw 5.5kw 7.5kw Three Phase Hollow Shaft Ac Electric Washer Washing Machine Motor For Pressure Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRated Frequency | 50Hz/60Hz | Mounting Type | IMB3/IMB5 |
---|---|---|---|
Noise Level | ≤75dB | Efficiency | ≥IE2 |
Rated Voltage | 220V/380V/440V/550V/660V | Altitude | ≤1000m |
Insulation Class | F/H | Motor Type | Induction |
Highlight | 5.5kw hollow shaft ac electric motor,7.5kw hollow shaft ac electric motor,Washer Three Phase Hollow Shaft motor |
Product Description:
Features:
3 HP, Single Phase, Hollow Shaft Ravel Motor
high quality, Hollow shaft Motor with bolt on feet
1450RPM, 2.2 Kw, 3.0 Hp, Single Phase, 240v, 50Hz
100LB3 Frame: 140mm centres to feet (length) x 160mm centres to feet (width)
24mm hollow shaft
Order Code: 46-001
Application
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Popular motor to support you to win the market
High-Efficiency Motor High-standard material with 100% output
Population Motor Get good feedback from customer
OEM & ODM Customized service
Direct manufacturer 24 hours online service
3 Years Warranty Almost without any after service
7 days shipment Stock Material
Relate Products
Hollow Shaft Motor Three Phase Motor |
Hollow Shaft Motor Single Phase Motor |
Solid Shaft Motor 3 Phase Motor |
Solid Shaft Motor Mono phase Motor |
Solid Shaft Motor AC induction single-phase motor |
Electric Centrifugal Switch For Single Phase Motor |
Factory Picture
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
K.W. | HP | P.F. | V | A | |||
HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
HS90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
HS90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
HS90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
HS100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
HS100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
HS100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
HS100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
HS112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
HS112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
HS112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
HS112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
HS132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
HS132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
HS132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
HS132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
HS132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
HS160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
HS160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
HS90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
HS100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
HS112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
HS112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
HS132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
HS132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
HS132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
HS132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
HS160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
HS160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Installation Dimension
FRAME | FLANGE | FRAME | ||||||||
M | N | S | A | AC | B | H | HC | L | K | |
90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
