Single Phase Electric AC Motor 1500rpm 3000rpm 220V 1HP 2HP 3HP 5HP

  • Single Phase Electric AC Motor 1500rpm 3000rpm 220V 1HP 2HP 3HP 5HP
  • Single Phase Electric AC Motor 1500rpm 3000rpm 220V 1HP 2HP 3HP 5HP
  • Single Phase Electric AC Motor 1500rpm 3000rpm 220V 1HP 2HP 3HP 5HP
  • Single Phase Electric AC Motor 1500rpm 3000rpm 220V 1HP 2HP 3HP 5HP
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ML100L1-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML100L1-4 Power 2.2kw
Voltage 220V Pole 4 Pole
Protection Class IP54 Insulation Class H
Duty S1 Product Name Single Phase Induction Motor
High Light

3000rpm Dual Capacitor Asynchronous Motor

,

1500rpm 1 Phase Asynchronous Motor

,

5HP 1 Phase Asynchronous Motor
Leave a Message
Product Description

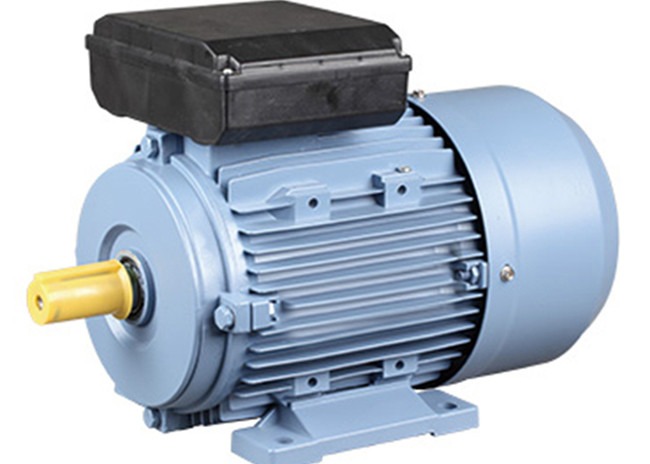

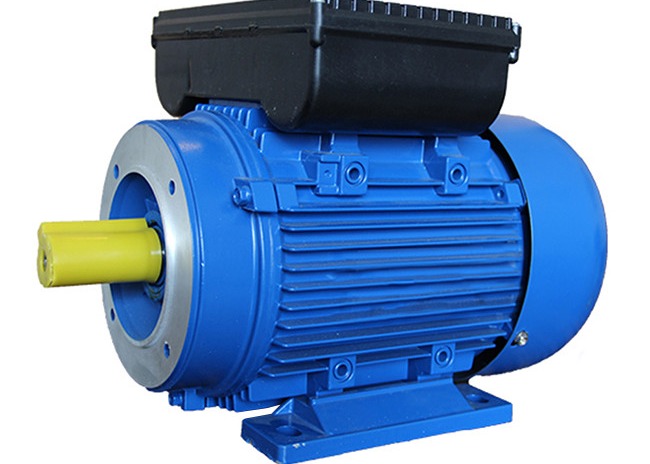

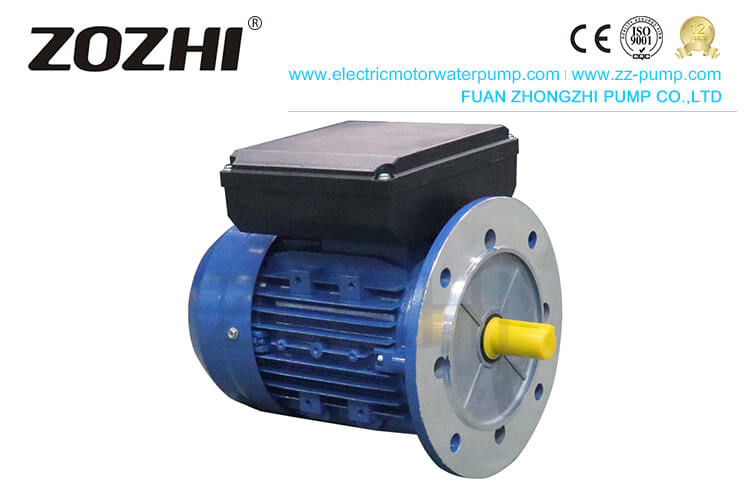

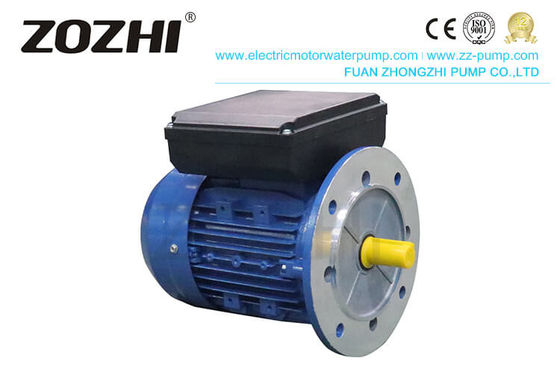

AC Motor Single Phase 1500rpm 3000rpm 220V 1HP 2HP 3HP 5HP Electric Motor AC Motor

ML series single-phase dual-capacitor asynchronous motor is designed and manufactured according to the national standard, newly developed by our company with low noise, compact construction, lightweight, easy maintenance, etc. These motors are widely used on air compressors, pumps, fans, refrigerators, medical instruments, small-size machines etc,  especially for occasions where only single -phase power supply is available


Ambient temperating: 15ºC≤0≤40ºC
Attitude: Not exceeding 1000 meters
Rated voltage: 220V±5%
Rated frequency: 50HZ
Insulation Class: Class B/F
Protection class: Continuous running
Duty/Rating: IP44/IP54


Data


Model Power
(KW)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



single phase dual capacitor electric motor
