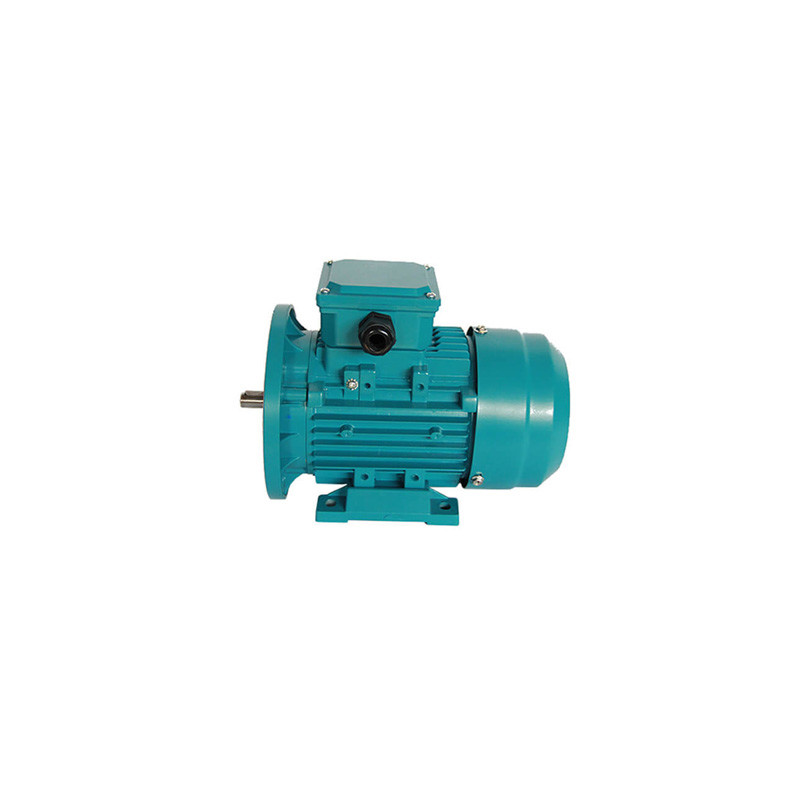

380V 410V 220V Three Phase Asynchronous Motor IE2 Waterproof Aluminium Shell
Place of Origin | FUAN CHINA |
---|---|
Brand Name | ZOZHI |
Certification | CE,ISO |
Model Number | IE2 MS90S-4 |
Minimum Order Quantity | 10pcs |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | L/C, T/T |
Supply Ability | 10000pcs/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Asynchronous Motor | Phase | Three Phase |
---|---|---|---|
Voltage | 400V | Frequency | 50HZ 60HZ |
Protect Feature | Waterproof | Certification | CCC, CE |
Efficiency | IE2 | Poles | 2/4/6/8 Poles |
Housing | Aluminium | Cooling Method | ICO141 |
Duty | S1(continuous) | Warranty | 1 Year |
Product Name | Electric Motor Water Pump | ||
High Light | three phase asynchronous motor IP54,Aluminium shell three phase asynchronous motor,Waterproof 3 phase asynchronous motor |
Factory price three phase electric 380V 410V 220V motor brake motor
♦ INTRODUCE:
MS series three-phase asynchronous motors with aluminum housing adopted the newest design and high-quality material. It is in conformity with the IEC34-1 standards. The efficiency of the motors can meet EFF2 and EFF1 if requested. It has good features: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume,and lightweight.
♦OPERATING CONDITIONS:
♣ Ambient temperature:-15°c<Θ<40°c
♣Altitude:not exceed 1000m
♣Rated voltage:380V,220V~760V is available
♣Rated frequency:50Hz/60Hz
♣Duty:S1(continuous)
♣Insulation class:B/F/H
♣Protection class:IP54/IP55
♣Cooling method:IC0141
Electric Motor Water Pump Application
Suitable for all kinds of machinery, such as fast stop, accurate positioning, reciprocating operation, frequent start, and prevent sliding. Such as water pump, transport machinery, fan blower, mixer, food machinery, construction machinery, CNC machinery, mining machinery, compressor, forging machinery, etc

Technical Data
Model | Power | (V) | (A) | (r/min) | Eff. (%) | P.F. | Ist/In | Tmax/Tn | |||
Kw | HP | 50% | 75% | 100% | |||||||
IE2 MS801-2 | 0.75 | 1 | 230/400 | 3.0/1.73 | 2800 | 76.5 | 77.3 | 77.4 | 0.813 | 2.2 | 2.3 |
IE2 MS802-2 | 1.1 | 1.5 | 4.2/2.43 | 2800 | 79 | 80 | 79.6 | 0.825 | 2.2 | 2.3 | |
IE2 MS90S-2 | 1.5 | 2 | 5.53/3.19 | 2820 | 80.2 | 81.5 | 81.3 | 0.837 | 2.2 | 2.3 | |
IE2 MS90L-2 | 2.2 | 3 | 7.93/4.58 | 2820 | 82.2 | 83.5 | 83.2 | 0.837 | 2.2 | 2.3 | |
IE2 MS100L-2 | 3 | 4 | 10.5/6.06 | 2830 | 84 | 85.1 | 84.6 | 0.848 | 2.2 | 2.3 | |
IE2 MS112M-2 | 4 | 5.5 | 400/690 | 7.97/4.6 | 2850 | 85.4 | 86.8 | 85.8 | 0.848 | 2.2 | 2.3 |
IE2 MS132S1-2 | 5.5 | 7.5 | 10.65/6.15 | 2870 | 86.7 | 87.3 | 87 | 0.86 | 2 | 2.3 | |
IE2 MS132S2-2 | 7.5 | 10 | 14.35/8.28 | 2870 | 87.6 | 88.3 | 88.1 | 0.86 | 2 | 2.3 | |
IE2 MS160M1-2 | 11 | 15 | 20.74/11.97 | 2900 | 89 | 89.8 | 89.4 | 0.86 | 2 | 2.3 | |
IE2 MS160M2-2 | 15 | 20 | 27.99/16.16 | 2900 | 90 | 90.5 | 90.3 | 0.86 | 2 | 2.3 | |
IE2 MS160L-2 | 18.5 | 25 | 33.83/19.53 | 2900 | 90.3 | 91 | 90.9 | 0.872 | 2 | 2.2 | |
IE2 MS802-4 | 0.75 | 1 | 230/400 | 3.28/1.9 | 1380 | 77.3 | 79.8 | 79.6 | 0.72 | 2.3 | 2.3 |
IE2 MS90S-4 | 1.1 | 1.5 | 4.57/2.64 | 1400 | 79.9 | 81.7 | 81.4 | 0.743 | 2.3 | 2.3 | |
IE2 MS90L-4 | 1.5 | 2 | 6.02/3.48 | 1400 | 82.1 | 83.5 | 82.8 | 0.755 | 2.3 | 2.3 | |
IE2 MS100L1-4 | 2.2 | 3 | 8.42/4.86 | 1420 | 82.6 | 84.5 | 84.3 | 0.778 | 2.2 | 2.3 | |
IE2 MS100L2-4 | 3 | 4 | 11.32/6.54 | 1420 | 84.2 | 85.7 | 85.5 | 0.778 | 2.2 | 2.3 | |
IE2 MS112M-4 | 4 | 5.5 | 400/690 | 8.47/4.89 | 1430 | 85.8 | 87 | 86.6 | 0.79 | 2.2 | 2.3 |
IE2 MS132S-4 | 5.5 | 7.5 | 11.18/6.45 | 1450 | 87.4 | 88.3 | 87.7 | 0.813 | 2.2 | 2.3 | |
IE2 MS132M-4 | 7.5 | 10 | 14.85/8.58 | 1450 | 88.2 | 89 | 88.7 | 0.825 | 2.2 | 2.3 | |
IE2 MS160M-4 | 11 | 15 | 21.84/12.61 | 1460 | 89.1 | 90 | 89.8 | 0.813 | 2.2 | 2.3 | |
IE2 MS160L-4 | 15 | 20 | 29.08/16.79 | 1460 | 90.2 | 91.1 | 90.6 | 0.825 | 2.2 | 2.3 | |
IE2 MS90S-6 | 0.75 | 1 | 230/400 | 3.82/2.2 | 910 | 73.4 | 76.3 | 75.9 | 0.65 | 2 | 2.2 |
IE2 MS90L-6 | 1.1 | 1.5 | 5.25/3.03 | 910 | 77 | 78.8 | 78.1 | 0.673 | 2 | 2.2 | |
IE2 MS100L-6 | 1.5 | 2 | 6.77/3.91 | 940 | 79.6 | 80.8 | 79.8 | 0.697 | 2 | 2.2 | |
IE2 MS112M-6 | 2.2 | 3 | 9.69/5.59 | 940 | 80.4 | 81.6 | 81.8 | 0.697 | 2 | 2.2 | |
IE2 MS132S-6 | 3 | 4 | 12.56/7.25 | 960 | 81 | 83.4 | 83.3 | 0.72 | 2 | 2.2 | |
IE2 MS132M1-6 | 4 | 5.5 | 400/690 | 9.36/5.4 | 960 | 82.7 | 84.5 | 84.6 | 0.732 | 2 | 2.2 |
IE2 MS132M2-6 | 5.5 | 7.5 | 12.47/7.2 | 960 | 84.8 | 86.2 | 86 | 0.743 | 2 | 2.2 | |
IE2 MS160M-6 | 7.5 | 10 | 16.78/9.69 | 970 | 86.4 | 87.5 | 87.2 | 0.743 | 2 | 2 | |
IE2 MS160L-6 | 11 | 15 | 24.19/13.97 | 970 | 88.2 | 89.2 | 88.7 | 0.743 | 2 | 2 |
Performance comparison chart:
ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM | ||||
Power(kw) | eff2 (nominal) | eff1 (nominal) | IE2 (nominal) | IE3 (nominal) |
0.75 | - | - | 79.6 | 82.5 |
1.1 | 76.2 | 83.8 | 81.4 | 84.1 |
1.5 | 78.5 | 85.0 | 82.8 | 85.3 |
2.2 | 81 | 86.4 | 84.3 | 86.7 |
3.0 | 82.6 | 87.4 | 85.5 | 87.7 |
4.0 | 84.2 | 88.3 | 86.6 | 88.6 |
5.5 | 85.7 | 89.2 | 87.7 | 89.6 |
7.5 | 87 | 90.1 | 88.7 | 90.4 |
11 | 88.4 | 91.0 | 89.8 | 91.4 |
15 | 89.4 | 91.8 | 90.6 | 92.1 |
18.5 | 90 | 92.2 | 91.2 | 92.6 |
22 | 90.5 | 82.6 | 91.6 | 93.0 |
30 | 91.4 | 93.2 | 92.3 | 93.8 |
37 | 92 | 93.6 | 92.7 | 93.9 |
45 | 92.5 | 93.9 | 93.1 | 94.2 |
55 | 93 | 94.2 | 93.5 | 94.6 |
75 | 93.6 | 94.7 | 94.0 | 95.0 |
90 | 93.9 | 95.0 | 94.2 | 95.2 |
110 | 94.5 | 95.4 | ||
132 | 94.7 | 95.6 | ||
160 | 94.9 | 95.8 | ||
200...375 | 95.1 | 96.0 |
Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
Reviews from the client:
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
