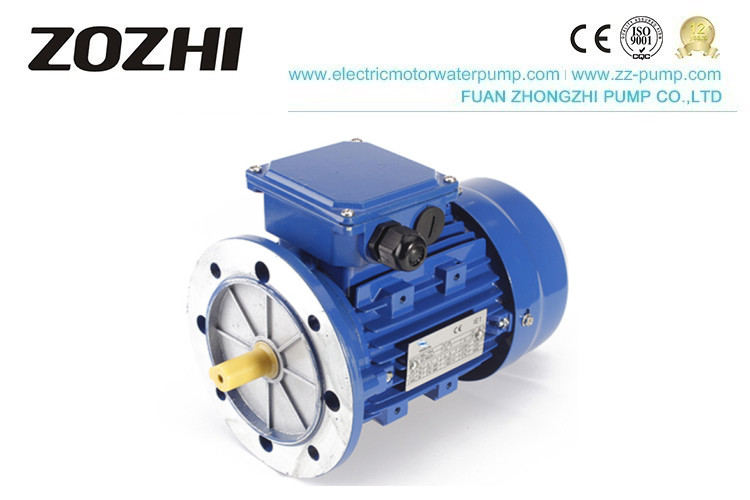

IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-4
Minimum Order Quantity 10pcs
Price 46.5-53.8
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 0.75kw Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

IP44 Three Phase Electric Motor

,

Three Phase Electric Motor 0.75kw

,

TEFC Squirrel Cage Induction Motor

Leave a Message
Product Description

MS802-4 0.75kw 4 pole MS series Aluminum housing three-phase motor

3 Phase Induction Motor

Products Description


MS series aluminum electric motor is a TEFC squirrel cage Three-phase AC induction motor. The body is die-casting of aluminum alloy. It is popular in many developed countries because of its lower pollution, and it is considered a green product in the electric motor industry. The electric motor has the advantage of high-efficiency energy-saving. high starting moment, good performance.light-weight,attractive appearance,high protection class. run steadily. Removable feet, variable fixing methods, etc., lt is widely used in normal places, and precision machinery without special requirements and are usually applied to a speed reducer, blower, water pump, air compressor, pipelining, packing industry, food machinery, and woodworker, etc.



Technical Data :

Centre height of frame size: 56~132mm Power range: 0.09~5.5kW

Rated voltage:380V

Rated frequency: 50Hz or 60Hz

Protection class: IP55

Insulation class: F/H

Duty type: S1





Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5










IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 0



IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 1



IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 2



IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 3

IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 4

IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 5

IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 6



Reviews from the client:

IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 7



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A











IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 9

centrifugal water pump vortex water pump

centrifugal electric water pump



IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 12

IP44 Three Phase Electric Motor 0.75kw TEFC Squirrel Cage 13



INFORMATION



Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
