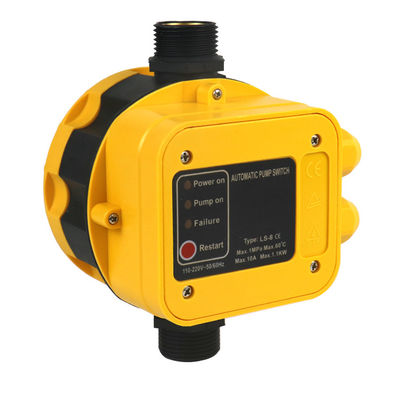

IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller

IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller
IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller

Large Image :  IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: LS-8
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Voltage: 220V/110V Frequency: 50/60HZ
Max Current: 10A Max Powre: 1.1kw
Adjustment Pressure: 1.0-3.5bar Not Adjustment Pressure: 0.8 1.2 1.5 2.2bar
Max Working/Pressure: 10bar Jointscrew: G1
Protection/Grade: IP65
High Light:

1.1kw Automatic Water Level Controller

,

3.5bar Automatic Water Level Controller

,

IP65 Control Pressure Switch

automatic electronic water pump pressure switch garden press controller switch adjustable manufacturers LS-8



TECHNICAL DATA:



RATED VOLTAGE: 220V/110V
FREQUENCY: 50/60HZ
MAX CURRENT: 10A
Max Power: 1.1kw
Adjustment Pressure: 1.0-3.5bar
Not Adjustment Pressure: 0.8 1.2 1.5 2.2bar
Max Working/ Pressure: G1
PROTECTION GRADE: IP65
Temperature: 90 degree
Packing Size(cm): 60x47x20
PCS/CTN: 12
N.W (kgs) 13.03
G.W (kgs) 15.58
  •

alco pressure control for pumpalco pressure control for pumpHigh-Quality PCBalco pressure control for pumpNovel design



DESCRIPTIONS:

  • 1). The electric switch is used in water systems.
    2). It starts the electric pump automatically after a pressure decrease(taps opening)
    and stops it when the fluid flow interrupts at the maximum pressure level of the
    electric pump(taps closed).
    3). Joint screw: G1"male.
    4). Completely replaced traditional pump control system composed of pressure switch,
    pressure tank and check valve, etc.
    5). Stop the water pump in the case of water shortage.
    6). With plug and socket, pump connection is more easily.
    7). Customized setting.

Function:

The product is designed especially for all control operations of the automatic water pump. If particular breakdowns occur, such as water failure, obstruction of the suction pipe, etc. the product recognizes the breakdowns and the red lightFailurelights up, at the same a stop signal is sent to the pump to prevent damages caused by its working in the absence of water. Rectification of the failures that have caused the blockage, allows the system to be restarted by pressing the Restart button. The controller can ensure a constant pressure for the water supplying system and thus reduce the water hammer effect inside the pipeline during water delivery. The controller also possesses the features of reset after power failure. Its starting flow is about 36-60L/h and is convenient for home applications.

IP65 ZOZHI LS-8 3.5bar 1.1kw Automatic Water Level Controller 3

Options:

  • color

  • G1"plastic pipe joint for a quick connection to the water pump

  • power cable length can choose according to customers' needs.



Main market:

  • EUROPE

  • MIDDLE EAST

  • SOUTH AMERICA
