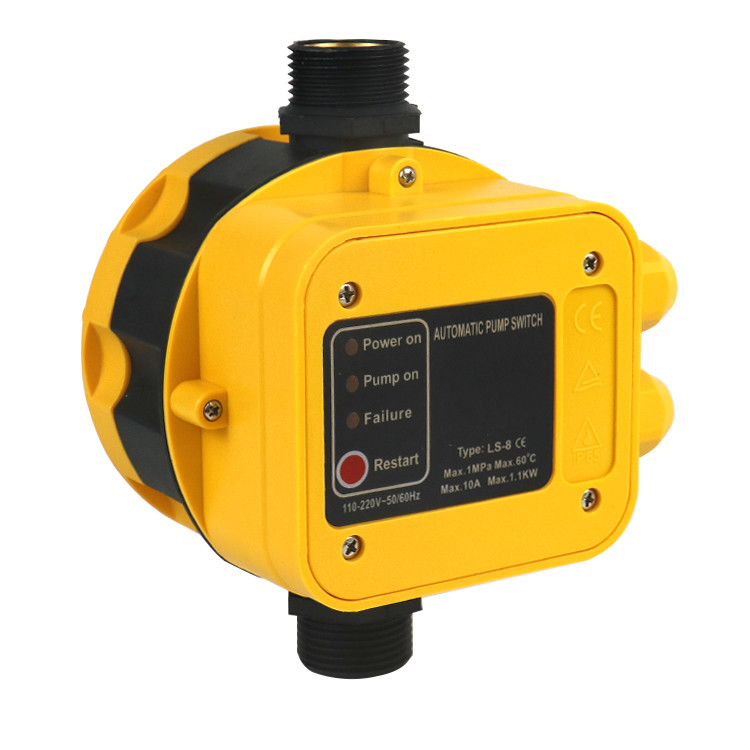

LS-8 1.1kw 1.5bar Water Pump Pressure Switch G1 Jointscrew

automatic electronic water pump pressure switch garden press controller switch adjustable manufacturers LS-8

TECHNICAL DATA:

• RATED VOLTAGE:220V/110V
• FREQUENCY:50/60HZ
• MAX CURRENT:10A
• Max Power: 1.1kw
• Adjustment Pressure: 1.0-3.5bar
• Not Adjustment Pressure: 0.8 1.2 1.5 2.2bar
• Max Working/ Pressure: 10bar
• JOINT SCREW: G1
• PROTECTION GRADE: IP65
• Temperature: 90 degree
• Packing Size(cm): 60x47x20
• PCS/CTN: 12
• N.W (kgs) 13.03
• G.W (kgs) 15.58

High-Quality PCBNovel design

DESCRIPTIONS:

• The product can replace the complicated installations of automatic water pumps e.g. pressure gauge, pressure switch, T-valve, check valve, and pressure tank ). It has the features of stable performance, low maintenance, and long life, etc. It will indicate the pump has started when the green light Power on lights up after connecting the power. When the yellow light Pump lights up, it indicates the pump has been started. The pump continues to operate for a few minutes enabling the system to fill in the pipes and to reach the required pressure. If this lapse is insufficient, the red light Failure will light up. In this event, keep the Restart button pressed and wait, with a tap opened till the red light is off. Once released the button and closed the tap, the product will keep the pump at its maximum pressure.

Function:

The product is designed especially for all control operations of the automatic water pump. If particular breakdowns occur, such as water failure, obstruction of the suction pipe, etc. the product recognizes the breakdowns and the red lightFailurelights up, at the same a stop signal is sent to the pump to prevent damages caused by its working in the absence of water. Rectification of the failures that have caused the blockage, allows the system to be restarted by pressing the Restart button. The controller can ensure a constant pressure for the water supplying system and thus reduce the water hammer effect inside the pipeline during water delivery. The controller also possesses the features of reset after power failure. Its starting flow is about 36-60L/h and is convenient for home applications.

Options:

• color

• G1"plastic pipe joint for a quick connection to the water pump

• power cable length can choose according to customers' needs.

Main market:

• EUROPE
• MIDDLE EAST
• SOUTH AMERICA
