1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch

large.img.alt
large.img.alt
video play

Large Image :  1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: ZPS-2
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD$2
Packaging Details: Packed in cartons
Delivery Time: 7 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: ZPS-2 Pressure Switch Rated Voltage: 230V; 110V
Frequency: 50/60HZ Rated Current: 5A;10A
Min.cut-in: 12PSI Min.cut-out: 45PSI
Pressure Range: 1.1-1.8Bar Bases: Zin Alloy
Screw Type: Female/Male Size: 1/4"; 3/8"
High Light:

12PSI Water Pump Pressure Switch

,

1.8Bar Water Pump Pressure Switch

,

1/4" Booster Pump Pressure Switch

ZPS-2 Pressure Switch

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 0


ZPS-2 Technical Parameters
Bases Zinc alloy Plastic
Contacts Double Single; Double
Screw type Female Male
Screw size 3/8" 1/4"



Mechanical pressure switch type
Pressure 0.8-1.5kg Suitable for 100w booster pump
Pressure 1.1-1.8kg Suitable for 120w/125w/150w booster pump
Pressure 1.3-2.3kg Suitable for 250w/300w/370w booster pump
Pressure 2.0-3.0kg Suitable for 550wbooster pump
Pressure 2.5-3.5kg Suitable for 550w/750w booster pump






Model
ZPS-2
Dimension
52*26.5*19CM
Quantity
100PCS/CTN
N.W(kg)
17 KGS
G.W(kg)
19 KGS
Model
Pressure Range
Screw Type
Base Material
ZPS-2A-0.8
0.8-1.5kg
Female 3/8"
Plastic
ZPS-2B-0.8
0.8-1.5kg
Female 3/8"
Zin alloy
ZPS-2C-0.8
0.8-1.5kg
Male 1/4"
Plastic
ZPS-2A-1.1
1.1-1.8kg
Female 3/8"
Zin alloy
ZPS-2B-1.1
1.1-1.8kg
Female 3/8"
Plastic
ZPS-2C-1.1
1.1-1.8kg
Male 1/4"
Zin alloy
ZPS-2A-1.3
1.3-2.3kg
Female 3/8"
Plastic
ZPS-2B-1.3
1.3-2.3kg
Female 3/8"
Zin alloy
ZPS-2C-1.3
1.3-2.3kg
Male 1/4"
Plastic
ZPS-2A-2.0
2.0-3.0kg
Female 3/8"
Zin alloy
ZPS-2B-2.0
2.0-3.0kg
Female 3/8"
Plastic
ZPS-2C-2.0
2.0-3.0kg
Male 1/4"
Zin alloy
ZPS-2A-2.5
2.5-3.5kg
Female 3/8"
Plastic
ZPS-2B-2.5
2.5-3.5kg
Female 3/8"
Zin alloy
ZPS-2C-2.5
2.5-3.5kg
Male 1/4"
Plastic
ZPS-2A-3.0
3.0-4.0kg
Female 3/8"
Zin alloy
ZPS-2B-3.0
3.0-4.0kg
Female 3/8"
Plastic
ZPS-2C-3.0
3.0-4.0kg
Male 1/4"
Zin alloy



1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 1

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 2

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 3

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 4

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 5

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 6

Applications

Electric water pump.





Features

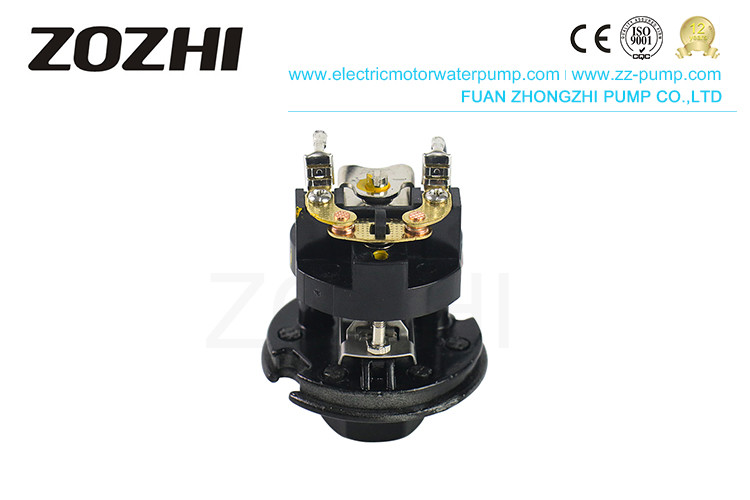

1. This product adopts a double silver plating contact structure. It improves service life and capacity. Pressing down the copper part to separate the contacts then there are 4 contacts with white silver covers.

2. Zinc alloy base. Powder painting process features. High-temperature resistance, rust prevention, smooth and beautiful appearance, and insulation.





1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 7



Our Customer

1/4" 3/8" 1.8Bar 12PSI Water Pump Pressure Switch 8

ZPS-2 Pressure Switch

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:
1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of the brand.



FAQ:
Q: What’s the MOQ?
A: We accept one piece.

Q: Are you a factory or trading company?
A: We are a manufacturer.

Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

Q: What’s the warranty period?
A: 1 year.

Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
