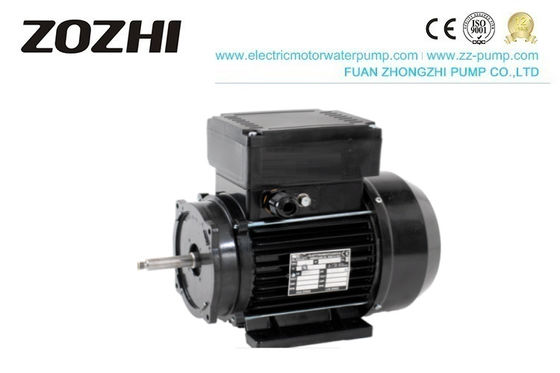

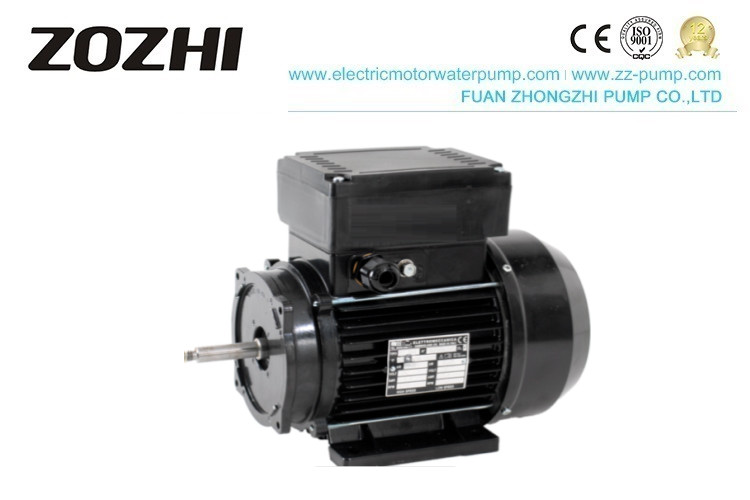

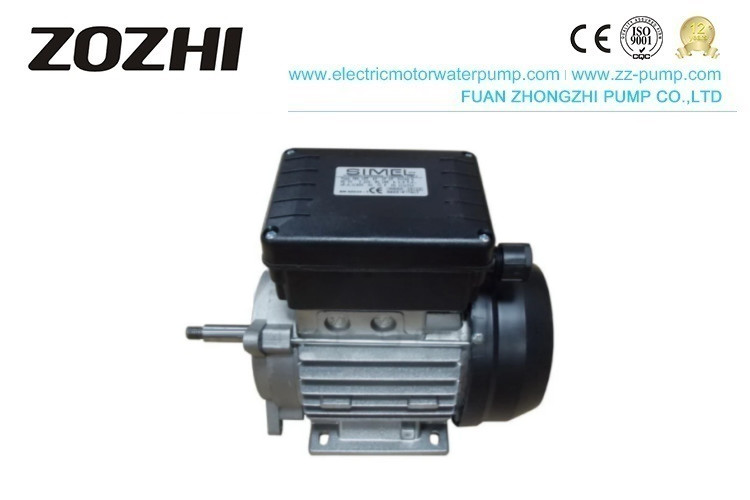

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors

  • 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors
  • 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MYT712-2
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month
Product Details
Application Swimming Pool Pump Voltage 220V
Power 0.75kw/1.0hp Speed 2800rpm
Housing Aluminum Duty 1year
Product Name Single Phase Induction Motor
Highlight

2800rpm Single Phase Asynchronous Motors

,

1.0hp Single Phase Asynchronous Motors

,

0.75kw Pool Pump Asynchronous Motors
Leave a Message
Product Description
Single Phase Induction Motor

ZOZHI electric motors are the motor of choice for both Waterway & Aqua-Flo's European pump ranges.

ZOZHI motors incorporate features such as top-mounted electrical connection boxes, stainless steel rotating armatures, and sealed bearings. The rear-mounted cooling fans and finned motor bodies allow the motor to effectively dissipate heat for cooler running.
Available in the 2 most common hot tub pump wet end frame sizes, you will find that they will almost any failed motor on the market. We commonly sell these motors as upgraded replacements for failed smooth body American-style motors.

The best way to match a motor is to look at the detailed spec below, match the frame size and get the amp rating(s) as close as you can.
0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 0


Application:

>> Designed for the pool pump, bathtub pump, centrifugal pump
>> Be made of selected quality material, the latest design in its entirety
>> Good performance, low noise, little vibration, safe and reliable cooperation
>> Nice appearance, lightweight
>> Be maintained very conveniently, simple construction.

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 1


Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141



Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7







Production line

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 2

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 3

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 4

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 5

0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 6 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 7 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 8
0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 9 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 10 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 11
0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 12 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 13 0.75kw 1.0hp 2800rpm Single Phase Asynchronous Motors 14
