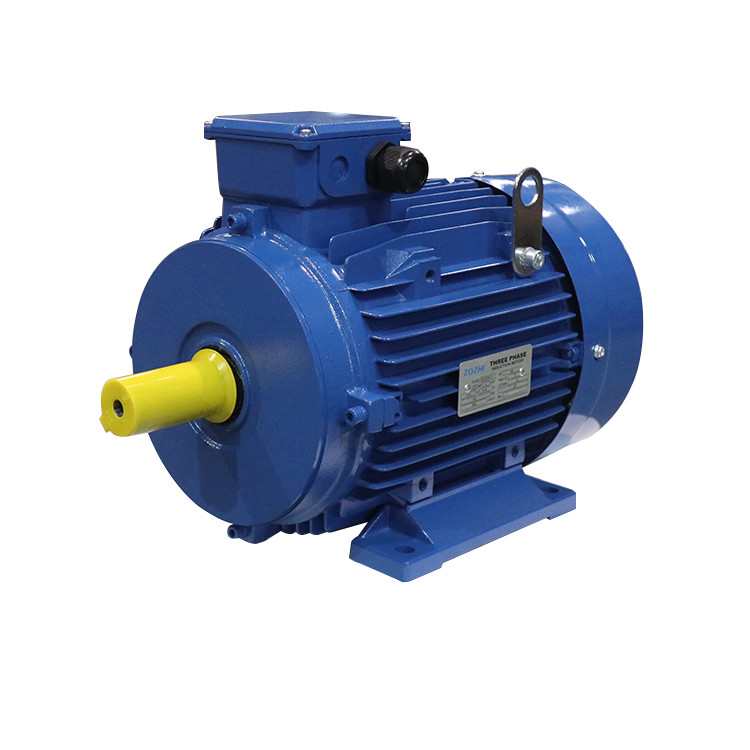

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor

  • IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor
  • IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor
  • IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS132S-4
Minimum Order Quantity 1pc
Price $35.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Model Number MS132S-4
Type Asynchronous Motor, Induction Motor Frequency 50HZ
Phase Three Phase Certification CCC, CE
Protect Feature Totally Enclosed AC Voltage 220V,380V Or On Request
Efficiency IE1,IE2 Model Name MS
Power 3KW/4HP Structure Asynchronous Motor
Protection Class IP44/IP54 Color Black Or Customers' Request
Material Aluminum Housing Winding Aluminium Or Copper
Product Name 3 Phase Induction Motor
Highlight

4HP 3 Phase Induction Motor

,

3KW 3 Phase Induction Motor

,

MS132S-4
Leave a Message
Product Description

IEC Standard High-Quality Electric Motor F Class MS132S-4 3KW/4HP



MS series three-phase asynchronous motor with aluminum shell meets the relevant regulations of IEC of National Electrotechnical Association. Furthermore, it adopts high-quality raw materials for the latest overall design. As a result, it has good performance, low noise, and low vibration.



3 Phase Ac Induction Motor is made of high-quality aluminum housing. With optimized construction design, they can ensure structural rigidity and intensity. Silicon steel plate is used in stator core and rotor core. It has good insulation on the surface a low loss which ensures higher efficiency. High-quality insulation material combines the perfect insulation system, which makes the insulation completely without clearance, high rigidity of the winding end. It can endure switching and reversing intensity. F class insulation gives the motor higher heat stability and longer life.



Applications: General purpose including cutting machines, fans, machine tools, mixers, agriculture machinery, pumps, etc.



3 Phase Induction Motor



Operation conditions

Ambient temperature:-15°C<q<40 °C

Altitude: not exceed 1000m
Rated voltage: 380V or any voltage between 220V-660V.



Rated frequency: 50HZ, 60HZ
Protection Class: IP44, IP54 ,IP55
Insulation Class: BF
Cooling method: IC0141 Duty: S1 (continuous)



Connection:star-connection for up to 3kw, delta-connection for 4kw and above.



3 Phase Induction Motor

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 0

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 1

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 2

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 3

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 4

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 5



3 Phase Induction Motor



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5




Reviews from the client:

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 6



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 7









​



IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 8

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 9





IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 10

IEC F Class MS132S-4 3KW 4HP 3 Phase Induction Motor 11
