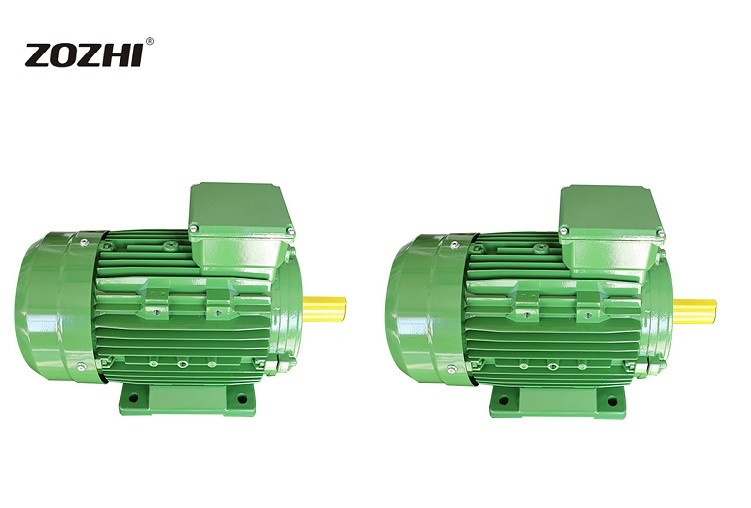

Aluminum 2.2kw 3hp three phase induction motor MS100L1-4

  • Aluminum 2.2kw 3hp three phase induction motor MS100L1-4
  • Aluminum 2.2kw 3hp three phase induction motor MS100L1-4
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS100L1-4
Minimum Order Quantity 1pc
Price $37.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 2.2KW/3HP Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

3hp Three Phase Induction Motor

,

2.2kw Three Phase Induction Motor

,

MS100L1-4 3 Phase Asynchronous Motor
Leave a Message
Product Description

3 Phase Induction Motor

MS series Custom electric motor with aluminum housing 2.2kw/3hp



MS series three-phase asynchronous motor with aluminum housing meets the relevant regulations of IEC of National Electrotechnical.
Association. It adopts high-quality raw materials for the latest overall design. As a result, it has good performance, low noise, and low vibration.



Air compressors, water pumps, water machines, refrigeration, medical equipment, and small instruments are widely used. Therefore, it is especially suitable for a single-phase power supply.



The product is popular in various countries worldwide, according to different countries to customize different voltages to meet the needs of each customer.



Product Description


The motor can be designed and manufactured according to customer requirements:

1. Motors of different voltage, frequency, and power;

2. Motors with different insulation levels and protection levels;

3. Left appearance, double extension shaft, special shaft motor;

4. High temperature resistant, low-temperature resistant motor;

5. Plateau and outdoor motors;

6. Various capacity-enhancing motors and motors with different service factors;

7. A motor equipped with a heater, bearing temperature measurement, winding temperature measurement, and thermal protection switch;

8. A motor equipped with a photoelectric encoder, an insulated bearing, or an insulated bearing structure;



three phase electric motor

three phase electric motor

three phase electric motor

three phase electric motor

ms 2.2kw 3hp electric motor



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5








centrifugal water pump vortex water pump

centrifugal electric water pump



Reviews from the client:

Aluminum 2.2kw 3hp three phase induction motor MS100L1-4 7



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A







​



Aluminum 2.2kw 3hp three phase induction motor MS100L1-4 9

Aluminum 2.2kw 3hp three phase induction motor MS100L1-4 10
