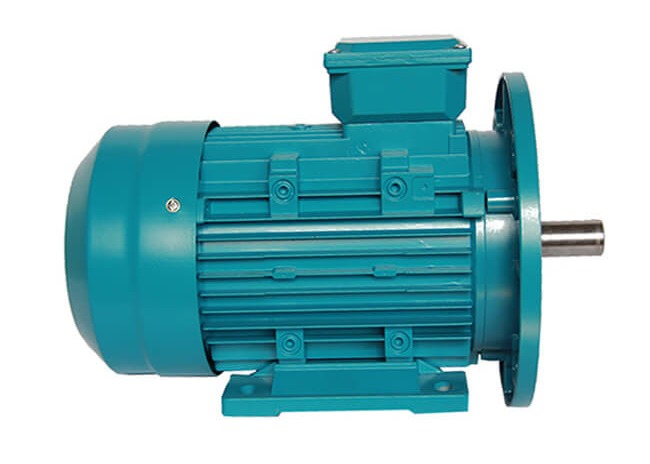

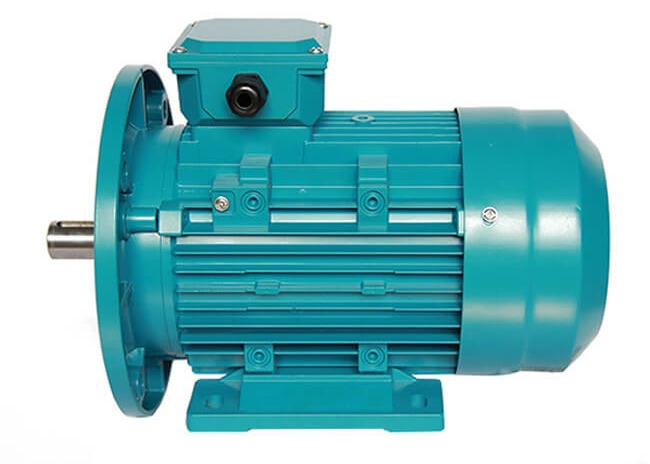

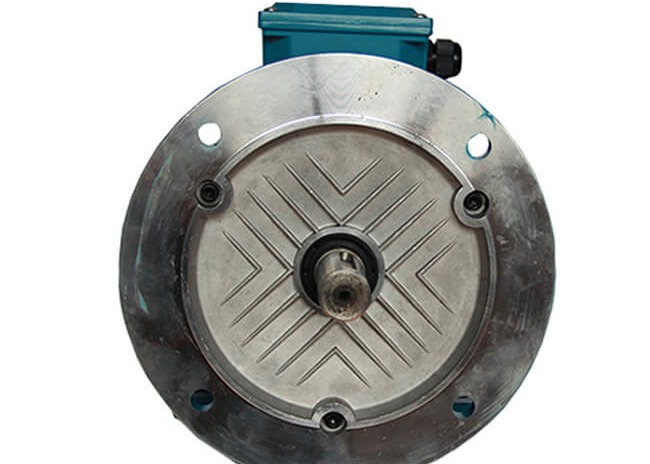

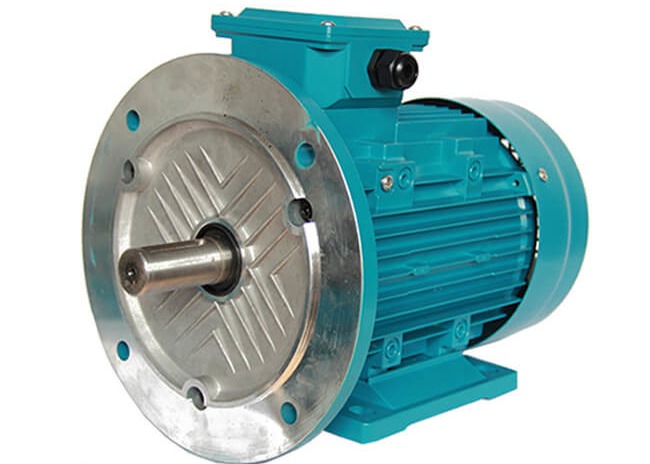

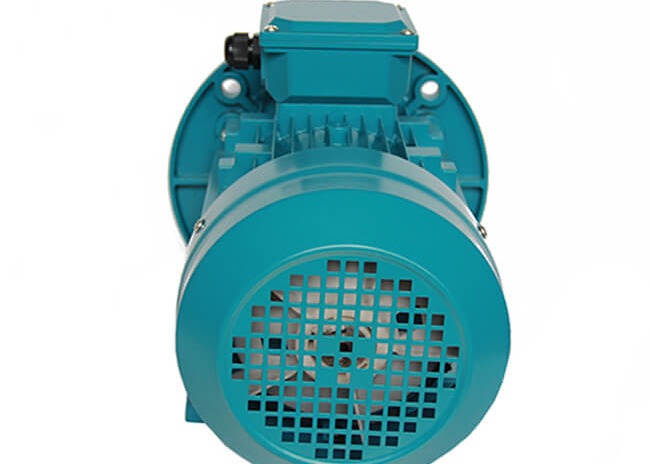

MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling

MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling
MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling

Large Image :  MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling

Product Details:
Place of Origin: Fuan, Fujian
Brand Name: ZOZHI
Certification: CE
Model Number: MS71-2
Payment & Shipping Terms:
Minimum Order Quantity: 1CBM
Price: negotiated
Packaging Details: Packed in boxes And Pallet
Delivery Time: 30 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 pcs per month
Detailed Product Description
Type: Asynchronous Motor Protect Feature:: Totally Enclosed
Efficiency: IE1 2 3 Protection: IP44/IP54/IP55
Duty: S1 (continuous) Cooling Method:: ICO141
Housing: Aluminium Above Sea Level:: Not Exceed 1000m
Insulation Class:: B/F/H Ambient Temperature:: -15 ℃-40℃
AC Voltage:: 380/660V Frequency:: 50/60Hz
High Light:

2800rpm Speed Asynchronous Motor

,

Speed Asynchronous Motor ICO141 Cooling

,

370w Three Phase Electric Motor

Three-phase, MS(IE1) series Aluminium housing motors are acknowledged that having good fame for quality and reliability, they are suitable for driving machines that do not have special requirements, such as machine tools, pumps, blowers, etc.

- Superior finish

- Externally Ventilated

- Lightweight construction

- Top-mounted terminal box

- IP55 Protection

- Interchangeable foot mounting and flange mounting





Model Power (V) (A) P.F. Eff.(%) Speed Tstart/Tn Tmax/Tn
kW HP (r/min)
MS562-2 0.12 0.16 220/380 0.67/0.38 0.71 67 2800 2.3 2.4
MS631-2 0.18 0.24 220/380 0.91/0.53 0.75 69 2800 2.2 2.4
MS632-2 0.25 0.33 220/380 1.17/0.68 0.78 72 2800 2.2 2.4
MS711-2 0.37 0.5 220/380 1.65/0.95 0.8 73.5 2800 2.2 2.4
MS712-2 0.55 0.75 220/380 2.33/1.35 0.82 75.5 2800 2.2 2.4
MS801-2 0.75 1 220/380 3.03/1.75 0.85 76.5 2800 2.2 2.4
MS802-2 1.1 1.5 220/380 4.42/2.55 0.85 77 2800 2.2 2.4
MS90S-2 1.5 2 220/380 6.01/3.84 0.85 77 2800 2.2 2.4
MS90L-2 2.2 3 220/380 8.61/4.98 0.86 78 2800 2.2 2.4
MS100L-2 3 4 220/380 11.1/6.4 0.87 82 2870 2.2 2.3
MS112M-2 4 5.5 380/660 8.2/4.7 0.87 85.5 2890 2.2 2.3
MS132S1-2 5.5 7.5 380/660 11/6.4 0.88 85.5 2900 2 2.2
MS132S2-2 7.5 10 380/660 15/8.6 0.88 86.2 2900 2 2.2
MS160M1-2 11 15 380/660 21.3/12.2 0.88 88 2930 2 2.2
MS160M2-2 15 20 380/660 28.7/16.4 0.89 89 2930 2 2.2
MS160L-2 18.5 25 380/660 34.6/19.8 0.9 90 2930 2 2.2
MS180M-2 22 30 380/660 40.9/23.4 0.9 90.5 2930 2 2.2



MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling 0





 Technical Parameters




MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling 1MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling 2

Our Customer

MS71-2 370w 2800rpm Speed Asynchronous Motor ICO141 Cooling 3

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:
1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of the brand.



FAQ:
Q: What’s the MOQ?
A: We accept one piece.

Q: Are you a factory or trading company?
A: We are a manufacturer.

Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

Q: What’s the warranty period?
A: 1 year.

Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
