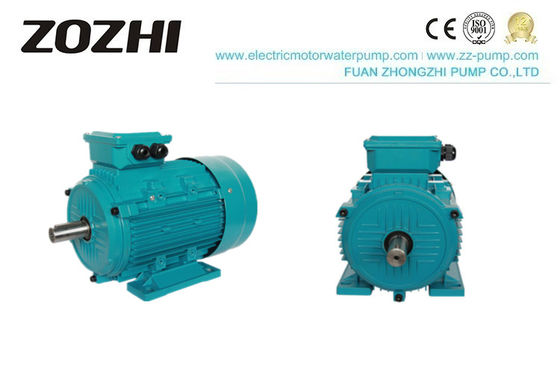

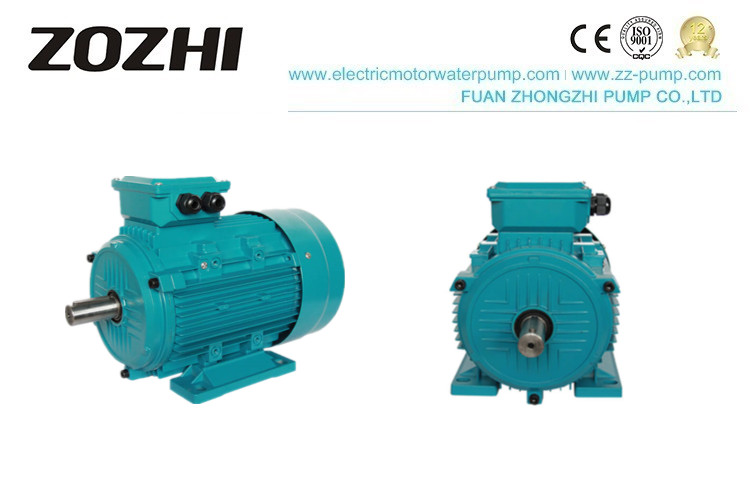

Copper Wire Class F IP55 Asynchronous Induction Motor 2.2KW 3HP

China Fuan Zhongzhi Pump Co., Ltd. certification
China Fuan Zhongzhi Pump Co., Ltd. certification
Zhongzhi does really good on the design and manufacturing of the products. Experienced engineers service us very nice.

—— Vadim Zabiiaka

Good quality, great manufacturers, we are happy with your products.

—— Mr.Reuben kimwolo

Have been working together for more than 3 years very professional. all products work fine in our types of equipment. Thank you.

—— Mr.Yılmaz Türkoğlu

Thank you so much for Zhongzhi company to make our project run smoothly.

—— Mehmet Sefa KEÇİK

Technical issues resolved, reputation is very good.

—— Mr.ANTONIS GKANIS

I'm Online Chat Now

Copper Wire Class F IP55 Asynchronous Induction Motor 2.2KW 3HP

Copper Wire Class F IP55 Asynchronous Induction Motor 2.2KW 3HP
Copper Wire Class F IP55 Asynchronous Induction Motor 2.2KW 3HP
video play

Large Image :  Copper Wire Class F IP55 Asynchronous Induction Motor 2.2KW 3HP

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: MS100L1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $37.3~$45.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 2.2KW/3HP Pole: 4
Phase: Three Phase Housing: Aluminum
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

Asynchronous Induction Motor 2.2KW

,

IP55 Asynchronous Induction Motor

,

3HP Three Phase Electric Motor

380V Three Phase Aluminum 100% Copper Wire Class F IP55 Electric Motor

Products Description



MS series three-phase asynchronous motor is Y series motor the upgrading of product is the totally enclosed, fan-cooled induction motor for general purpose.


It was the newest product in the 90S', its overall level has reached the same products abroad at the beginning of 90S'level. The product applies to economic lake-off fields, such as machine tools, water pumps, fans, compressors, also can be applied to transportation, stirring, printing, agricultural machinery, food, and other kinds of excluding inflammable, explosive, or corrosive gas.


MS series three-phase asynchronous motor installation size and power grade in conformity with relevant standards of IEC and Germany DIN42673 standard line and Y series motor, its shell protection grade for IP54, a cooling method for IC41l, operate continuously (S1). Using F insulation class and grade B assessment according to temperature (except for 315 L2-2, 4355 all specifications F grade the assessment and ask the assessment load noise index.


MS series three-phase asynchronous motor the rated voltage is 380 V. rated frequency is 50 Hz. 3 KW the following connection is Y, other powers are delta connections. Motor running the place at no more than 1000 m; Environment air temperature changes with seasons, but no more than 40 °C; Minimum environment air temperature is-15 °C; The wet month average high relative humidity is 90%; At the same time, this month is not higher than the lowest average temperature 25 °C.

Protection level: IP44 / IP54 / IP55 Cooling method : IC0141 Insulation level: B/F
Rated frequency: 50/60 Hz Rated voltage: 220/380/400/415/440V Duty/rating: S1



Electric Motor Factory Advantages.

  • Prompt Quotation.
  • Competitive Price
  • Guaranteed Quality
  • Timely Delivery.
  • 100% Tested.
  • Sincere and Professional Service.
  • Outstanding Finishing Surface.
  • Strictly and Perfect Management is guaranteed for Production.
  • Specialized in Manufacturing and Supplying a wide range of Electric motors and since the year 2002.
  • Have Rich Experience and Strong ability to Develop New Products.
  • Have the Ability to Design the Products Based on Your Original Samples.

We Promise you all the time after working with us for Win-Win Business.

  • Prompt Reply to Your Inquiry within 24 Hs during Working Days.
  • Long Life Time Products
  • Professional Service in Handling Your Goods in Daily Communications
  • Delivery Time about 25 days for Normal Models.
  • Delivery Time about 45—60 days for New Models upon Receiving the New Samples.

Ambient temperature:
-15℃≤x≤40℃
Altitude:
≤1000m
Rated Voltage:
380V,0ther voltage on request
Rated Frequency:
50hz, other frequency on request
Duty/Rating:
Continuous(S1)
Insulation class:
Class B/F
Protection class:
IP44/IP54/IP55
Cooling method:
IC411





Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5
