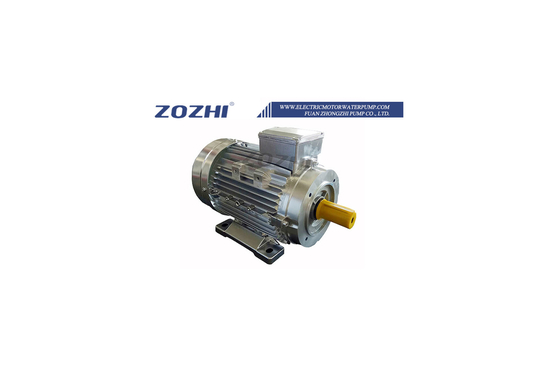

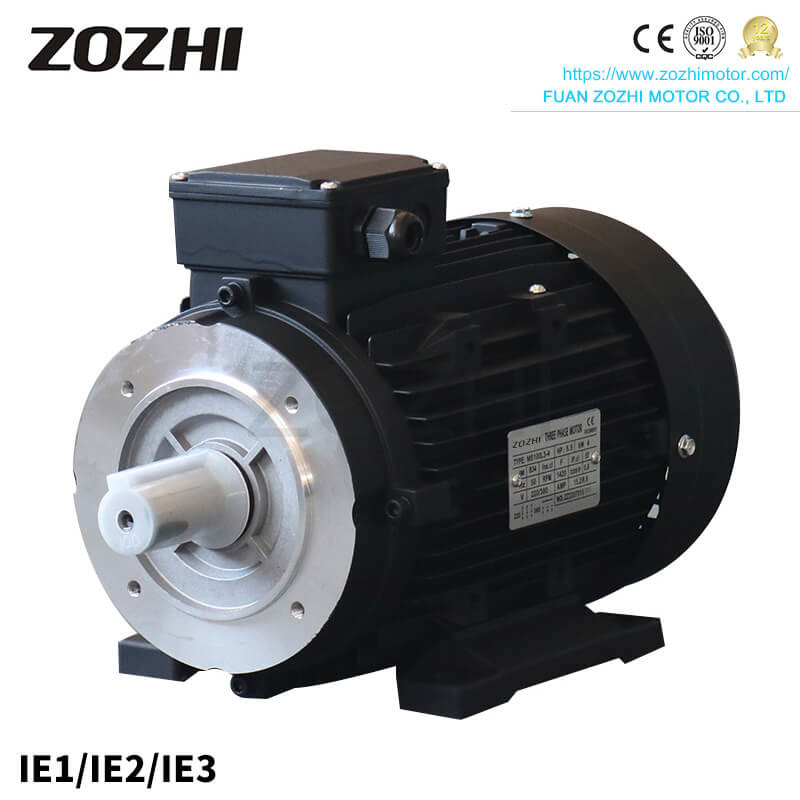

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty
MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty
video play

Large Image :  MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: MS100L1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $37.3~$45.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 2.2KW/3HP Pole: 4
Phase: Three Phase Housing: Aluminum
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

2.2KW Three Phase Ac Motor

,

3HP Three Phase Ac Motor

,

MS100L1-4 Aluminum Induction Motor

MS Series Three Phase Induction Motor

Products Description

MS series three-phase induction motor is suitable for any places where a larger starting torque and the starting current to be limited are required and have outstanding performance, such as high efficiency, energy saving, high starting torque, low noise, little vibration, reliable operation, and easy maintenance, etc. These series motors are totally enclosed fan-cooled. The frames are made of cast iron or cast Aluminum according to the requests. The housing is cast aluminum.

Ambient temperature:
-15℃≤x≤40℃
Altitude:
≤1000m
Rated Voltage:
380V,0ther voltage on request
Rated Frequency:
50hz, other frequency on request
Duty/Rating:
Continuous(S1)
Insulation class:
Class B/F
Protection class:
IP44/IP54/IP55
Cooling method:
IC411





MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty 0

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty 1

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty 2

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty 3

Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5






Reviews from the client:

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor S1 Duty 4



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
