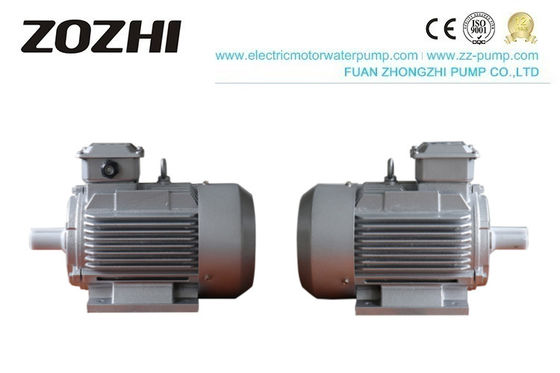

0.75KW 1.0Hp Three Phase Induction Motor IP44 For General Machine

China 0.75KW 1.0Hp Three Phase Induction Motor IP44 For General Machine supplier

Large Image :  0.75KW 1.0Hp Three Phase Induction Motor IP44 For General Machine

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y2-802-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $32.2~$40.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 0.75kw/1Hp Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

1.0Hp Three Phase Induction Motor

,

0.75KW Three Phase Induction Motor

,

IP44 Three Phase Induction Motor



This series of the motor may be used for driving all kinds of general machines such as the compressor, ventilation fan, water pump, stock removing machine, transportation machines and other mechanical equipment, and are applied as the prime mover in all industrial and mining enterprises such as the mine, machinery, petrochemical industry,and power plant, etc.



Features:

1. Y2 series three phase electric motors are newly designed by our company for the European and American market on the basis of the Y2 series.

2. The motors are conformity with IEC34-1 and JB/T8680.1-1998 standards, also up to the international advanced level of the 90s.

3. It possesses sophisticated features such as new construction, good appearance, slight vibration,

low noise etc.

4. Its rated power, mounting size is the same as the Y series.

5. The efficiency of the 355 meets EFF2, EFF1. the motors are Class F(Temperature rise B) insulation, IP55.

6. Motors can be equipped with PTC, for frame size 160 and above also can be equipped with a re-greasing system



Y2 Series Three Phase Induction Motor
Model Y2-802-4
Rated Power 0.75kw/1.0Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15 degree   ~40 degree
Weight 18kgs
Measure 35x29x21cm





0.75KW 1.0Hp Three Phase Induction Motor IP44 For General Machine 0



Ist/In Power (A) Power Eff.(%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2
