Aluminum IP54 1.5kw 2hp Single Phase Electric Motor

China Aluminum IP54 1.5kw 2hp Single Phase Electric Motor supplier

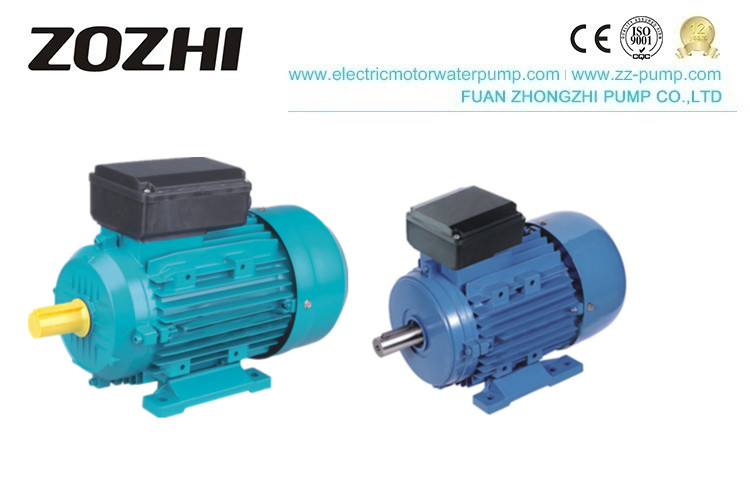

Large Image :  Aluminum IP54 1.5kw 2hp Single Phase Electric Motor

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: MY90L-4

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: MY90L-4 Power: 1.5kw/2hp
Voltage: 220v Frequency: 50hz
Phase: Single Phase Housing: Aluminum
Protection Class: IP44/IP54 Insulation Class: B/F
Duty: S1
High Light:

2hp Single Phase Electric Motor

,

1.5kw Single Phase Electric Motor

,

IP54 Aluminum Induction Motor

Single Phase 1.5kw 2hp MY Series electric motor with aluminum



Specification:



Ambient temperature: -15°C≤θ≤40°C
Above sea level: not exceed 1000m
Rated voltage: ±5%
Protection class:IP44/IP54/IP55
Insulation class: B/F

Cooling method: ICO141
Duty:continuous(S)

MY 220v small electric motors:



MY Series electric motor, with the latest design in entirety, are made of quality materials and meet the relative rules of IEC standard. MY motors have good performance, safe and reliable operation, nice appearance, and can be maintained very convenient, while with low noise, little vibration, lightweight and simple construction. This series of motors can be used on water pumps, household appliances, fan, and recording meters, etc.





Technical data

Model
Output
(V)

(A)
Speed
(r/min)
Eff.
(%)
P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP
MY631-2 0.18 0.25 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 0.34 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 0.5 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 0.75 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.10 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.50 2 220 9.44 2800 76 0.95 0.30 1.7 45
MY90L-2 2.20 3 220 13.67 2800 77 0.95 0.30 1.7 65
MY631-4 0.12 0.16 220 1.10 1400 55 0.90 0.4 1.7 3.5
MY632-4 0.18 0.25 220 1.62 1400 56 0.90 0.4 1.7 5
MY711-4 0.25 0.34 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 0.5 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 0.75 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.10 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.50 2 220 9.83 1400 73 0.95 0.3 1.7 45

Overall & Installation Dimensions

Frame No.
Installation size Overall size(mm)
  IMB14 IMB5
A B C D E F G H K M N P R S T M N P R S T AB AC AD HD L
63 100 80 40 11 23 4 8.5 63 7 75 60 90 0 M5 2.5 115 95 140 0 10 3.0 130 130 115 185 230
71 112 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 145 145 125 205 255
80 125 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3.0 165 130 200 0 12 3.5 160 160 135 235 295
90S 140 100 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 145 265 335
90L 140 125 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 145 265 360



MY series single phase electric motor

Aluminum IP54 1.5kw 2hp Single Phase Electric Motor 2

Aluminum IP54 1.5kw 2hp Single Phase Electric Motor 3

Reviews from the client:

ML series single phase dual capacitor electric motor 0.75kw 3



Shipping:

after 25~30days, we will delivery the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A











ML series single phase dual capacitor electric motor 0.75kw 5

centrifugal water pump vortex water pump

centrifugal electric water pump



ML series single phase dual capacitor electric motor 0.75kw 8

ML series single phase dual capacitor electric motor 0.75kw 9
