AEEF IEC IP54 7.5HP 5.5kw Three Phase Asynchronous Motor

China AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor supplier
AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor supplier AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor supplier AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor supplier AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor supplier AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor supplier

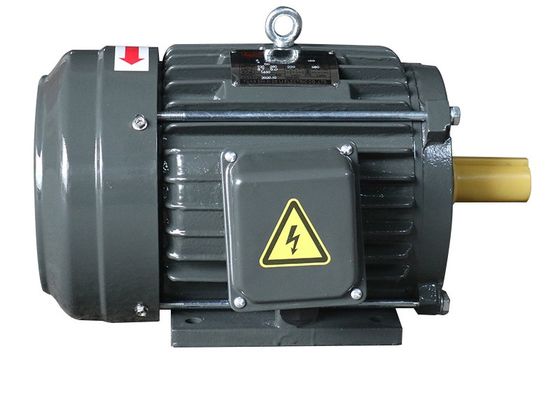

Large Image :  AEEF IEC IP54 7.5HP 5.5kw Three Phase Asynchronous Motor

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: AEEF IEC

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C, Western Union, E-checking
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 5.5kw Pole: 4
Motor Bearing:: C&U (SKF For Choice) Efficiency:: IE1,IE2,IE3
Motor Housing:: Cast Iron Protection Class:: IP54/IP55
Insulation Class:: F Class Color: Customizable
High Light:

5.5kw Three Phase Asynchronous Motor

,

7.5HP Three Phase Asynchronous Motor

,

IP54 3 Phase Asynchronous Motor

Description



AEEF Series motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC and DIN42673 standards.
AEEF series motors have outstanding performance, such as high efficiency, less consumption, high starting torque, low noise, little vibration, reliable operation, and easy maintenance, etc.
AEEF series motors are widely used in many places, where do not exist combustible, explosive, or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, and food machines, etc.



Working Condition

Ambient temperature: -15℃≤~≤40℃





Technical data

Power Full load Frame No. Full load spped Torque Max.torque Rotor GD2
HP KW RPM Torque Eff. P.F. (A) Starting (A) %FLT Kg-M2
  Kg % % torque
        %F
0.25 0.185 2740 63 0.07 56 76.5 0.66 400 3.5 300 0.002
  1345 63 0.13 60.5 69.5 0.67 270 3.5 250 0.003
  910 71 0.2 60 60 0.79 200 3.5 250 0.006
0.5 0.37 2785 71 0.13 75 85 0.89 320 7 280 0.0025
  1370 71 0.26 65.5 70 1.24 200 7 230 0.005
  925 80 0.39 63 67 1.34 200 7 230 0.009
1 0.75 2800 80 0.26 76.5 87 1.7 220 11 280 0.005
1400 80 0.52 72 74 2.13 230 11 280 0.009
930 90L 0.78 71 70 2.28 190 11 230 0.018
2 1.5 2820 90L 0.51 80 88 3.22 250 23 280 0.011
1400 90L 1.04 75.5 78.5 3.82 220 23 280 0.018
935 100L 1.55 75.5 71.5 4.2 180 23 220 0.033
3 2.2 2850 90L 0.76 83.5 88.5 4.6 250 39 280 0.015
1430 100L 1.52 80 82 5.18 210 39 260 0.033
950 112M 2.29 78 76 5.73 180 39 230 0.06
5 3.7 2875 112M 1.26 85.5 90 7.36 240 63 280 0.039
1440 112M 2.52 84.5 83.5 8.03 220 63 260 0.06
960 132S 3.78 80.5 75.5 9.32 180 63 230 0.154
7.5 5.5 2900 132S 1.88 86.5 88.5 11.1 210 93 260 0.066
1450 132S 3.75 86 82.5 12 220 93 250 0.106
960 132M 5.67 84.5 77.5 13 200 93 230 0.222
10 7.5 2900 132S 2.5 88.5 88.5 14.5 200 116 210 0.078
1450 132M 5 87.5 85.5 15.2 220 116 250 0.146
970 160M 7.48 85.5 80 16.6 210 116 230 0.408
15 11 2930 160M 3.72 88.5 90 21.3 200 168 240 0.164
1460 160M 7.46 89.5 88 21.6 220 168 250 0.322
970 160L 11.2 88.5 84 22.9 210 168 230 0.599
20 15 2930 160M 4.95 90 91 27.7 200 209 240 0.191
1460 160L 9.94 90.5 88.5 28.3 220 109 240 0.389
970 180M 15 89 82.5 30.9 200 209 210 1.007
25 18.5 2915 160L 6.23 90 89.5 35.2 200 268 230 0.247
1460 180M 12.4 91 86.5 36 210 268 240 0.624
970 180L 18.7 90 82.5 38.2 200 268 210 1.17
30 22 2950 180M 7.38 91.5 90 41.3 200 319 230 0.315
1455 180M 15 90.5 85 43.9 210 319 240 0.671
970 180L 22.4 89.5 82 46.3 200 319 210 1.365
40 30 2935 180L 9.89 92 91 54.2 180 398 210 0.373
1455 180L 20 91 85 58.6 180 398 220 0.829
970 200L 29.9 91 83 60 190 398 200 1.952
50 37 2950 200L 12.3 91.5 87.5 70.8 150 463 210 0.543
1460 200L 24.9 91.5 86 72 190 463 210 1.293
970 200L 37.4 90 80 78.7 190 463 200 2.292
60 45 2950 200L 14.8 92.5 87 84.5 140 582 200 0.659
1460 200L 29.8 92 88.5 83.5 190 582 200 1.681
980 225S 44.4 91 80 93.4 170 582 200 3.201
75 55 2950 225S 18.5 92.5 90.5 102 140 725 210 1.234
1470 225S 37 92.5 85 108 180 725 200 1.947

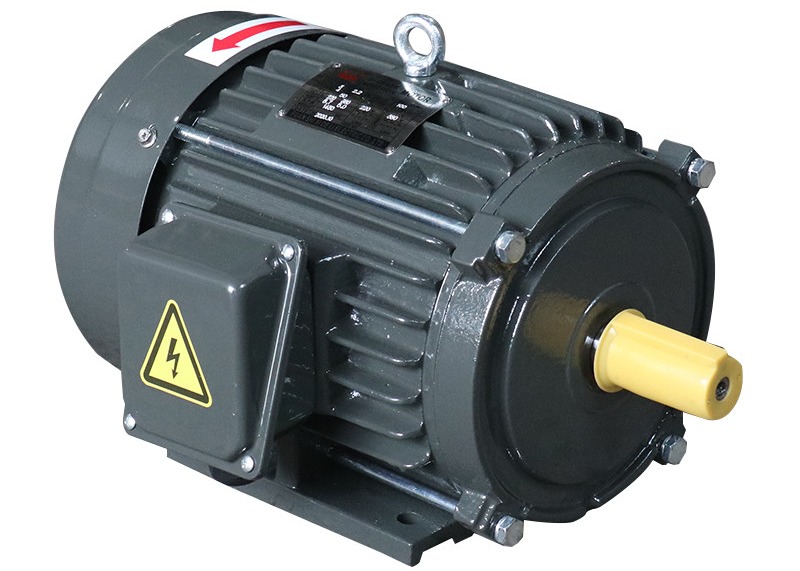

AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor 0

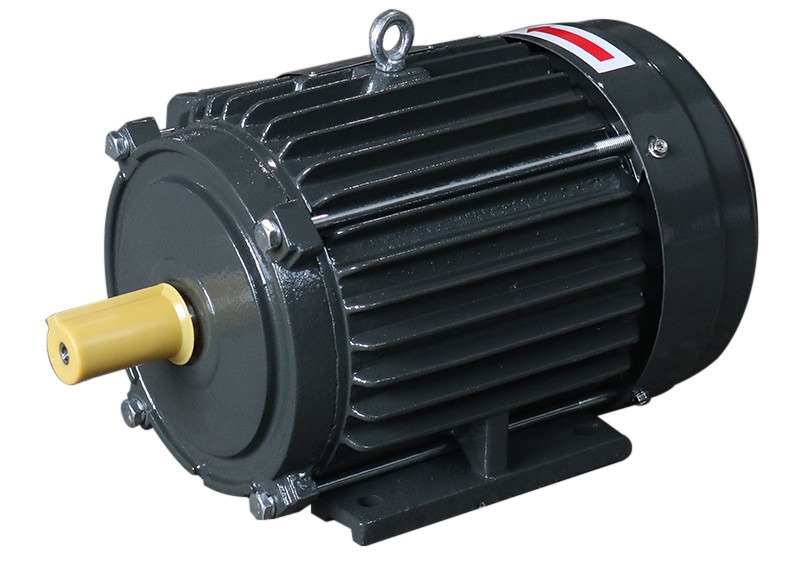

AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor 1

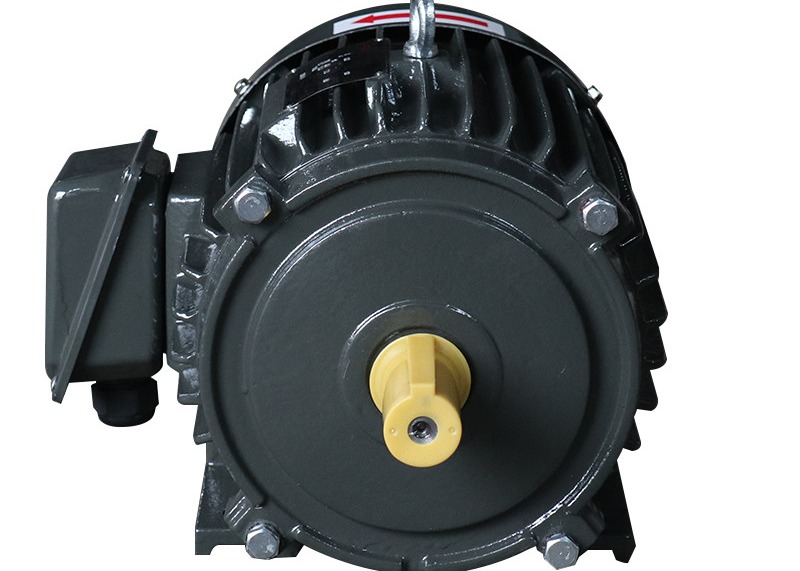

AEEF IEC IP54 7.5HP 5.5kw Three Phase  Asynchronous Motor 2




































Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What’s the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
