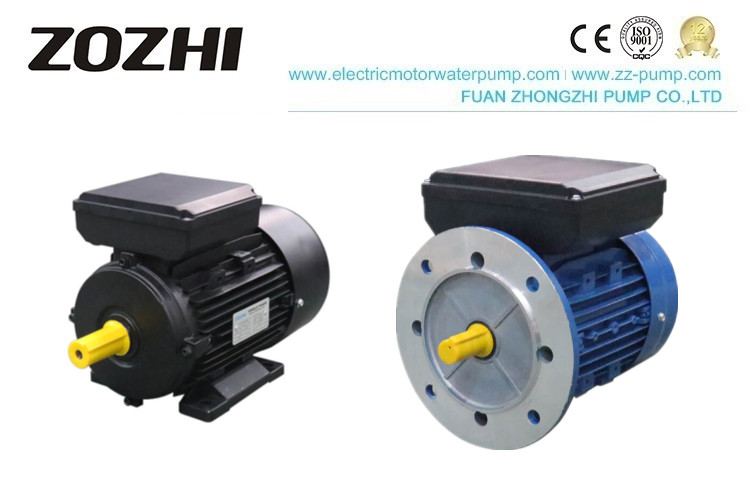

Capacitor Start IP54 0.75kw IE2 Single Phase Induction Motor

China Capacitor Start IP54 0.75kw IE2 Single Phase Induction Motor supplier

Large Image :  Capacitor Start IP54 0.75kw IE2 Single Phase Induction Motor

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: ML802-4

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Model: ML802-4 Power: 0.75kw
Voltage: 220V Pole: 4pole
Protection Class: IP54 Insulation Class: H
Duty: S1
High Light:

IE2 Single Phase Induction Motor

,

0.75kw Single Phase Induction Motor

,

IP54 Capacitor Start Induction Motor

IEC standard capacitor start and capacitor run single-phase motors


Description


ML series single-phase motors with double capacitors (aluminium housing)



  • The ML series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps, especially for family workshops where only single-phase current is available. Motors of this series are integrated with up-to-date design, built with the best quality materials and attractive appearance. They have outstanding performance, easy maintenance and are reliable. They completely conform to international I.E.C. standards.



  • ML series protected motors are of IP44 or IP54 totally enclosed fan cooling type. Motors for 4 HP and over are of capacitor start and run type. They all have the advantage of high starting torque, smooth running, low-temperature rise, low noise and greater overload performance.



Our Services



1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for the quality prior to shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet

6. IE1 three-phase electric motors, cast iron and aluminium frame

7. IE2 and IE3 cast iron and aluminium frame electric motors

8. Brake electric motors

9. ABB electric motors

10. Exposition proof electric motors

11. competitive price

12. 16 years of manufacturing experience

13. Special motors can be designed according to customers' requirements





Detailed Product Description



full output capacitor starts 220V YC electric motor.

1.CE certificate

2.100% Copper wire

3.Cold-rolled silicon steel sheet

4.Silicon steel rotor




Data


Model Power
(KW)

(V)

(A)
Speed
(r/min)
Eff.
(%)
P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



single phase dual capacitor electric motor

single phase electric motor

single phase induction motor
