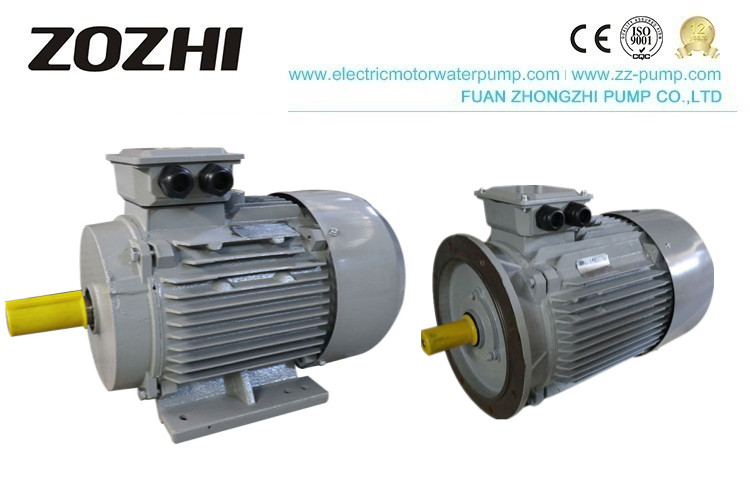

Class F Foot Mounted IP54 0.75kw 1Hp AC Induction Motor

China Class F Foot Mounted IP54 0.75kw 1Hp AC Induction Motor supplier

Large Image :  Class F Foot Mounted IP54 0.75kw 1Hp AC Induction Motor

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y2-802-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $32.2~$40.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 0.75kw/1Hp Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

1Hp AC Induction Motor

,

IP54 AC Induction Motor

,

0.75kw Foot Mounted Induction Motor

3 Phase Foot Mounted AC Induction Motor

Three Phase Electric Motors are made using state of the art machinery and quality raw material thus ensuring long product life. Motor frames are designed according to IEC frame size with stator made up of low watt loss silicon lamination and rotor are dynamically balanced for higher efficiency. 'F' class insulation is provided in all motors so that they can withstand high-temperature rise during continuous operation. Epoxy grade paint is used for anti-corrosive protection.

APPLICATIONS

  • Compressors
  • Air Conditioning units
  • Pumps
  • Industrial Drives
  • Washing Machines
  • Electric Cars
  • Industrial Machines



SALIENT FEATURES

  • High reliability.
  • Effectual performance in low voltage and can withstand wide voltage fluctuation
  • Corrosion-resistant paint and varnish treated core components.
  • Tropicalized design suitable for Indian conditions, Low power consumption.
  • Cast Iron and aluminum die-cast frames for a sturdy construction.
  • Dynamically balanced rotating parts to guarantee a vibration-free longer life.
  • Pre-lubricated antifriction bearings of ample size to withstand radial and axial loads.



Y2 Series Three Phase Induction Motor
Model Y2-802-4
Rated Power 0.75kw/1.0Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15 . C ~40 . C
Weight 18kgs
Measure 35x29x21cm



The Y2 series of heavy-duty single-phase motors incorporate the latest design, fully enclosed and fan-cooled. They are newly designed to comply with the relevant requirements/rules of the IEC standard. Y2 electric motor has the advantages of high efficiency, long life, energy-saving, large starting torque, low noise, low vibration, low -temperature rise, reliable operation, and simple and convenient maintenance. The fixed measurement and power levels are fully compliant with the IEC standard.



Y2 motor has the characteristics of beautiful appearance, superior performance, and convenient maintenance. It has the advantages of large starting torque and stable rotation. Applicable to all kinds of machinery, such as pumps, transportation machinery, fans, mixers, food machinery, engineering machinery, CNC machinery, mining machinery, compressors, forging machinery, etc.





Class F Foot Mounted IP54 0.75kw 1Hp AC Induction Motor 0



Ist/In Power (A) Power Eff.(%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2
