Square Cage 0.75kw 1Hp Eff1 Eff2 Three Phase Induction Motor

China Square Cage 0.75kw 1Hp Eff1 Eff2 Three Phase Induction Motor supplier

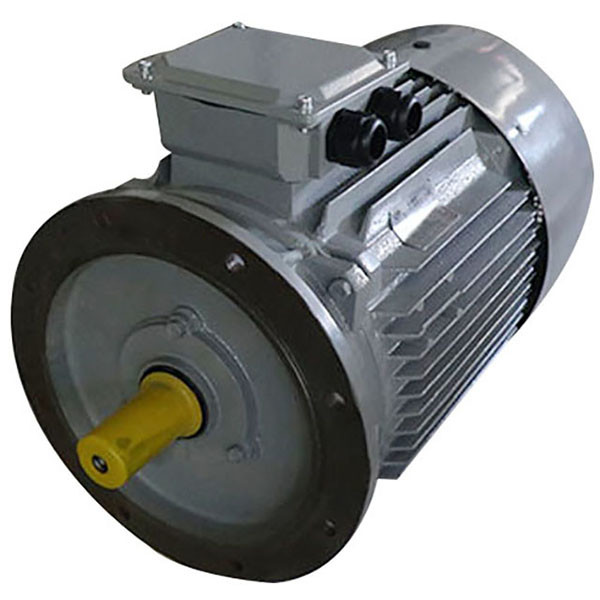

Large Image :  Square Cage 0.75kw 1Hp Eff1 Eff2 Three Phase Induction Motor

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: Y2-802-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $32.2~$40.5
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 0.75kw/1Hp Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

Eff2 Three Phase Induction Motor

,

1Hp Three Phase Induction Motor

,

0.75kw Square Cage Induction Motor

Fan Cooling Square Cage Three Phase Industrial Motor Eff1&Eff2 Efficiency

The Y2 series motor is a fully enclosed three-phase industrial standard motors with a self-fan cooling system and a square-cage construction.

Y2 series has been designed and engineered in compliance with the latest technical knowledge and production process and has reached EFF1 & EFF2 efficiency



Standard.

It features its high efficiency, energy saving, low noise, low vibration, lightweight and reliability of running.

It is widely used on mechanical equipment is commonplace where there are no inflammable, explosive,and corrosive gases and in place with no special requirements, such as the machine tools for cutting metals, exhaust fan, compressors, etc.



Working Condition

1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15.

2. Altitude: Not over 1000m above sea level.

3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃.

4. Termination: Y connection below 3KW. Delta connection if over 4KW.

5. Operation Mode(duty): S1.



Y2 Series Three Phase Induction Motor
Model Y2-802-4
Rated Power 0.75kw/1.0Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15 . C ~40 . C
Weight 18kgs
Measure 35x29x21cm



Square Cage 0.75kw 1Hp Eff1 Eff2 Three Phase Induction Motor 0

Square Cage 0.75kw 1Hp Eff1 Eff2 Three Phase Induction Motor 1



Ist/In Power (A) Power Eff.(%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2
