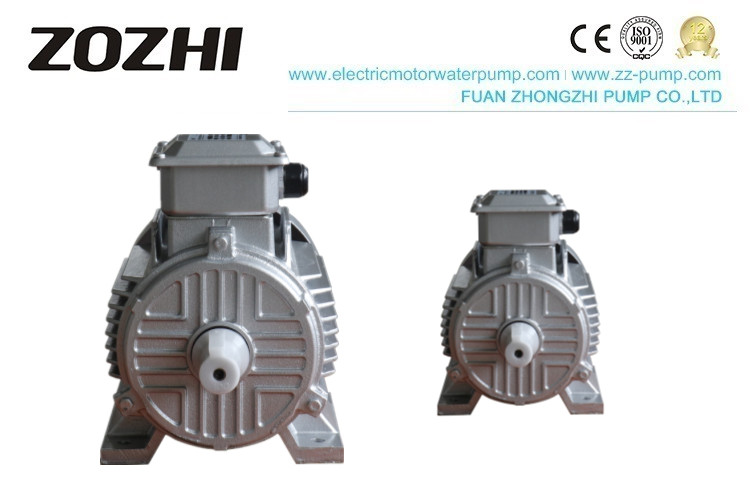

Y2 Series IP54 1.5KW IE2 Three Phase Asynchronous Motor

Place of Origin	FUAN CHINA
Brand Name	ZOZHI
Certification	CE,ISO
Model Number	IE2-90L-4
Minimum Order Quantity	10PCS
Price	$170
Packaging Details	Packed in cartons,veneer case or wooden case.
Delivery Time	25 working days after received your payment
Payment Terms	L/C, T/T
Supply Ability	10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	IE2 Motor	Application	Drivng
Power	1.5KW	Pole	4
Phase	Three Phase	Housing	Cast Iron
Insulation Class	B,F	Protection	IP55
Rated Voltage	380V	Duty	S1(continuous)
Highlight	IE2 Three Phase Asynchronous Motor , 1.5KW Three Phase Asynchronous Motor , IP54 Asynchronous AC Motor

Leave a Message

Product Description

IE2 level efficiency as per IS 12615 - 2011 and IEC 60034-30
High starting and pull-up torques to accelerate the load.
Robust and shock-resistant stator construction with optimally designed ribs for cooling.
Die-cast aluminum rotors are designed to withstand the severe forces encountered during starting.
Terminal box located at RHS from driving End.
Large terminal boxes with sufficient electrical clearances and improved aesthetics.
Optimum fan design for better cooling & minimum energy consumption.

Y2 series is suitable for an industrial machine, like

1 water pump

2 big fan

3 food machines

4 gear motor

5 compressors

IE2 Motor Operating Conditions

Ambient temperature: -15℃~40℃

Altitude: no higher than 1000 meters from sea level

Rated Voltage: ±5%

Frequency: 50HZ or 60HZ

Protection class: IP54 or IP55

Insulation class :F,B

Duty Type: S1.

IE2 Motor Feature

1 TEFC cage

2 high efficiency

3100% copper wire &100% output.

4 low noise

5 easy maintenance

Brief Introduction

IE2 Y2 series three-phase asynchronous motor is a kind of totally enclosed fan-cooled squirrel-cage

induction motor, it was developed in 1990’ in China, the design of Y2 series electric motors absorbed

the advanced technology of electric motors around the world. Y2 series electric motors have lots of futures

such as high efficiency and energy saving, large starting torque, excellent performance, low noise and

vibration, compact structure, high reliability, easy operation, etc.

Technical data
NO.	Type	kW	Speed	Amps	EFF.	P.F.	LRT/RLT	LRA/RLA	BDT/RLT	Noise LwdB	Voltage
NO.	Type	kW	r/min	A	%	cosφ	LRT/RLT	LRA/RLA	BDT/RLT	(A)	V
1	IE2-801-2	0.75	2850	1.7	77.4	0.82	2.3	6.8	2.3	62	400
2	IE2-802-2	1.1	2870	2.4	79.6	0.83	2.3	7.1	2.3	62	400
3	IE2-90S-2	1.5	2880	3.2	81.3	0.84	2.3	7.3	2.3	67	400
4	IE2-90L-2	2.2	2880	4.5	83.2	0.85	2.3	7.6	2.3	67	400
5	IE2-100L1-2	3	2880	5.9	84.6	0.87	2.2	7.8	2.3	74	400
6	IE2-112M-2	4	2900	7.6	85.8	0.88	2.3	8.1	2.3	77	400
7	IE2-132S1-2	5.5	2910	10.4	87	0.88	2.2	8.2	2.3	79	400
8	IE2-132S2-2	7.5	2910	13.8	88.1	0.89	2.2	7.8	2.3	79	400
9	IE2-160M1-2	11	2940	20	89.4	0.89	2.2	7.9	2.3	81	400
10	IE2-160M2-2	15	2940	26.9	90.3	0.89	2.2	8	2.3	81	400
11	IE2-160L-2	18.5	2940	33	90.9	0.89	2.2	8	2.3	81	400
12	IE2-180M-2	22	2950	39.1	91.3	0.89	2.2	8.1	2.3	83	400
13	IE2-200L1-2	30	2960	52.9	92	0.89	2	7.5	2.3	84	400
14	IE2-200L2-2	37	2960	64.9	92.5	0.89	2	7.5	2.3	84	400
15	IE2-225M-2	45	2960	78.6	92.9	0.89	2.2	7.5	2.3	86	400
16	IE2-250M-2	55	2970	96	93.2	0.89	2.2	7.6	2.3	89	400
17	IE2-280S-2	75	2975	130	93.8	0.89	2	6.9	2.3	91	400
18	IE2-280M-2	90	2975	155	94.1	0.89	2	6.9	2.3	91	400
19	IE2-315S-2	110	2975	187	94.3	0.9	2	7	2.2	92	400
20	IE2-315M-2	132	2975	224	94.6	0.9	2	7	2.2	92	400
21	IE2-315L1-2	160	2975	268	94.8	0.91	2	7.1	2.2	92	400
22	IE2-315L2-2	200	2975	334	95	0.91	2	7.1	2.2	92	400
23	IE2-355M-2	250	2980	418	95	0.91	1.6	7.1	2.2	100	400
24	IE2-355L-2	315	2980	526	95	0.91	1.6	7.2	2.2	100	400
25	IE2-802-4	0.75	1420	1.8	79.6	0.76	2.3	6.4	2.3	56	400
26	IE2-90S-4	1.1	1420	2.6	81.4	0.77	2.3	6.6	2.3	59	400
27	IE2-90L-4	1.5	1420	3.5	82.8	0.78	2.3	6.7	2.3	59	400
28	IE2-100L1-4	2.2	1440	4.7	84.3	0.8	2.3	7.3	2.3	64	400
29	IE2-100L2-4	3	1440	6.2	85.5	0.81	2.3	7.5	2.3	64	400
30	IE2-112M-4	4	1445	8.1	86.6	0.81	2.3	7.5	2.3	65	400
31	IE2-132S-4	5.5	1450	11.1	87.7	0.82	2	7.5	2.3	71	400
32	IE2-132M-4	7.5	1450	14.7	88.7	0.83	2	7.3	2.3	71	400
33	IE2-160M-4	11	1470	21.3	89.8	0.83	2.2	7.4	2.3	73	400
34	IE2-160L-4	15	1470	28.4	90.6	0.84	2.2	7.5	2.3	73	400
35	IE2-180M-4	18.5	1470	34.4	91.2	0.85	2.2	7.6	2.3	76	400
36	IE2-180L-4	22	1470	40.8	91.6	0.85	2.2	7.7	2.3	76	400
37	IE2-200L-4	30	1470	55.2	92.3	0.85	2.2	7.1	2.3	76	400
38	IE2-225S-4	37	1480	67	92.7	0.86	2.2	7.3	2.3	78	400
39	IE2-225M-4	45	1480	81.1	93.1	0.86	2.2	7.3	2.3	78	400
40	IE2-250M-4	55	1480	99	93.5	0.86	2.2	7.3	2.3	79	400
41	IE2-280S-4	75	1480	132	94	0.87	2.2	6.8	2.3	80	400
42	IE2-280M-4	90	1480	157	94.2	0.88	2.2	6.9	2.3	80	400
43	IE2-315S-4	110	1480	189	94.5	0.89	2.1	6.9	2.2	88	400
44	IE2-315M-4	132	1480	226	94.7	0.89	2.1	6.9	2.2	88	400
45	IE2-315L1-4	160	1480	270	94.9	0.9	2.2	6.9	2.2	88	400
46	IE2-315L2-4	200	1480	337	95.1	0.9	2.1	6.9	2.2	88	400
47	IE2-355M-4	250	1490	422	95.1	0.9	2.1	6.9	2.2	95	400
48	IE2-355L-4	315	1490	531	95.1	0.9	2.1	6.9	2.2	95	400
49	IE2-90S-6	0.75	930	2	75.9	0.71	2	5.8	2.1	57	400
50	IE2-90L-6	1.1	930	2.8	78.1	0.72	2	5.9	2.1	57	400
51	IE2-100L1-6	1.5	930	3.7	79.8	0.72	2	5.9	2.1	61	400
52	IE2-112M-6	2.2	945	5.4	81.8	0.72	2.1	6.2	2.1	65	400
53	IE2-132S-6	3	960	7.1	83.3	0.72	2	6.4	2.1	69	400
54	IE2-132M1-6	4	965	9.2	84.6	0.74	2	6.6	2.1	69	400
55	IE2-132M2-6	5.5	965	12.3	86	0.75	2	6.8	2.1	69	400
56	IE2-160M-6	7.5	970	15.9	87.2	0.78	2.1	6.8	2.1	73	400
57	IE2-160L-6	11	970	22.7	88.7	0.79	2.1	6.9	2.1	73	400
58	IE2-180L-6	15	980	29.8	89.7	0.81	2	7.3	2.1	73	400
59	IE2-200L1-6	18.5	980	36.5	90.4	0.81	2.1	7.2	2.1	73	400
60	IE2-200L2-6	22	980	43.1	90.9	0.81	2.1	7.3	2.1	73	400
61	IE2-225M-6	30	980	57.6	91.7	0.82	2	6.8	2.1	74	400
62	IE2-250M-6	37	980	69.8	92.2	0.83	2.1	7	2.1	76	400
63	IE2-280S-6	45	980	82	92.7	0.85	2.1	7.2	2	78	400
64	IE2-280M-6	55	980	100	93.1	0.85	2.1	7.2	2	78	400
65	IE2-315S-6	75	990	136	93.7	0.85	2	6.5	2	83	400
66	IE2-315S-6	90	990	163	94	0.85	2	6.6	2	83	400
67	IE2-315M-6	110	990	198	94.3	0.85	2	6.6	2	83	400
68	IE2-315L1-6	132	990	234	94.6	0.86	2	6.6	2	83	400
69	IE2-315L2-6	160	990	283	94.8	0.86	1.9	6.7	2	85	400
70	IE2-355M2-6	200	990	353	95	0.86	2	6.8	2	85	400
71	IE2-355L-6	250	990	442	95	0.86	2	6.8	2	85	400

Reviews from the client:

Y2 Series IP54 1.5KW IE2 Three Phase Asynchronous Motor 2

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A

Y2 Series IP54 1.5KW IE2 Three Phase Asynchronous Motor 4

Y2 Series IP54 1.5KW IE2 Three Phase Asynchronous Motor 5

Y2 Series IP54 1.5KW IE2 Three Phase Asynchronous Motor 6
