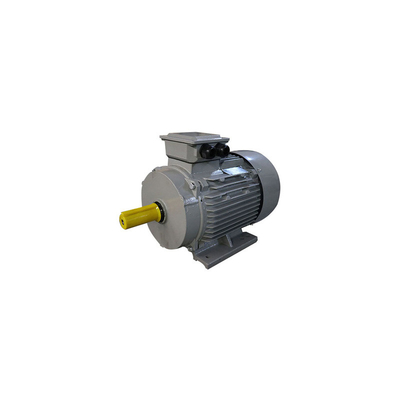

Y2 Fan Cool IE2 1.5KW IP55 3 Phase Asynchronous Motors
Place of Origin | FUAN CHINA |
---|---|
Brand Name | ZOZHI |
Certification | CE,ISO |
Model Number | IE2-90L-4 |
Minimum Order Quantity | 10PCS |
Price | $170 |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | L/C, T/T |
Supply Ability | 10000pcs/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | IE2 Motor | Application | Drivng |
---|---|---|---|
Power | 1.5KW | Pole | 4 |
Phase | Three Phase | Housing | Cast Iron |
Insulation Class | B,F | Protection | IP55 |
Rated Voltage | 380V | Duty | S1(continuous) |
High Light | IP55 3 Phase Asynchronous Motors,1.5KW 3 Phase Asynchronous Motors,IE2 3 Phase Induction Motor |
Details
IE2 Motor
1. PRODUCT INTRODUCTION OF IE2 ELECTRIC MOTOR
YE2 series are 3 phase asynchronous electric motors with totally enclosed fan cooled, are ac motor, INDUCTION MOTOR, and industrial motors. The high-efficiency motors are developed independently according to standard IEC, G.B., etc. The energy-saving electric motors meet with efficiency IE2 of IEC60034-30 and efficiency Grade 3 of GB18613-2012. The IE2 INDUCTION MOTORS are also in compliance with the efficiency standards covered by IEC. it is the most authoritative efficiency classification standard globally.
The output rated power and mounting dimensions of the electric motors perfectly follow IEC60072-1. In addition, YE2 motors are a reasonable structure, have slight vibration, and have low noise.
YE2 series three-phase asynchronous motors can be widely used in blowers, ventilators, pumps, machine tools, compressors, reducers, packing machines, transportation machinery, mining equipment, construction equipment, and other devices, which can operate with full load for a long time, the motors can save the considerable electric energy, it is advantageous to protect the environment.
2. TECHNICAL FEATURES OF IE2 ELECTRIC MOTORS
1. Execution standard: IEC60034-30
2. Energy efficiency grade: IE2
3. Frame size: H80~H355 Pole: 2P/4P/6P
4. Rated power: 0.75KW~355KW
5. Voltage: 380V, 400V, 415V
6. Frequency: 50Hz, 60Hz
7. Operation mode: S1 (continuous running)
8. Enclosed protect class: IP55
9. Insulation class: F (temperature rise is examined at 80K)
10. Cooling method: IC411
11. Mounting method: B3, B5, B35, V1
12. Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Cº
13. Connection: Star-connection for 3KW or less, whereas delta-connection for 4KW or more.
Note: the inquiry or order needs to indicate the electric motor model(including frame center’s height, frame length, the core length, No. of poles, power, voltage, frequency), Mounting method, terminal box location(top/side).
If customers have a special request for the voltage, frequency, and others can be mentioned in the inquiry or order.
1. Customers can choose PTC or Pt100 thermistors for winding and bearing heat protection.
2. Customers can choose a moisture-proof heater (space heater).
IE2 Motor Technical data | |||||||||||
NO. | Type |
|
Speed | Amps | EFF. | P.F. | LRT/RLT | LRA/RLA | BDT/RLT | Noise LwdB | Voltage |
r/min | A | % | cosφ | (A) | V | ||||||
1 | IE2-801-2 | 0.75 | 2850 | 1.7 | 77.4 | 0.82 | 2.3 | 6.8 | 2.3 | 62 | 400 |
2 | IE2-802-2 | 1.1 | 2870 | 2.4 | 79.6 | 0.83 | 2.3 | 7.1 | 2.3 | 62 | 400 |
3 | IE2-90S-2 | 1.5 | 2880 | 3.2 | 81.3 | 0.84 | 2.3 | 7.3 | 2.3 | 67 | 400 |
4 | IE2-90L-2 | 2.2 | 2880 | 4.5 | 83.2 | 0.85 | 2.3 | 7.6 | 2.3 | 67 | 400 |
5 | IE2-100L1-2 | 3 | 2880 | 5.9 | 84.6 | 0.87 | 2.2 | 7.8 | 2.3 | 74 | 400 |
6 | IE2-112M-2 | 4 | 2900 | 7.6 | 85.8 | 0.88 | 2.3 | 8.1 | 2.3 | 77 | 400 |
7 | IE2-132S1-2 | 5.5 | 2910 | 10.4 | 87 | 0.88 | 2.2 | 8.2 | 2.3 | 79 | 400 |
8 | IE2-132S2-2 | 7.5 | 2910 | 13.8 | 88.1 | 0.89 | 2.2 | 7.8 | 2.3 | 79 | 400 |
9 | IE2-160M1-2 | 11 | 2940 | 20 | 89.4 | 0.89 | 2.2 | 7.9 | 2.3 | 81 | 400 |
10 | IE2-160M2-2 | 15 | 2940 | 26.9 | 90.3 | 0.89 | 2.2 | 8 | 2.3 | 81 | 400 |
11 | IE2-160L-2 | 18.5 | 2940 | 33 | 90.9 | 0.89 | 2.2 | 8 | 2.3 | 81 | 400 |
12 | IE2-180M-2 | 22 | 2950 | 39.1 | 91.3 | 0.89 | 2.2 | 8.1 | 2.3 | 83 | 400 |
13 | IE2-200L1-2 | 30 | 2960 | 52.9 | 92 | 0.89 | 2 | 7.5 | 2.3 | 84 | 400 |
14 | IE2-200L2-2 | 37 | 2960 | 64.9 | 92.5 | 0.89 | 2 | 7.5 | 2.3 | 84 | 400 |
15 | IE2-225M-2 | 45 | 2960 | 78.6 | 92.9 | 0.89 | 2.2 | 7.5 | 2.3 | 86 | 400 |
16 | IE2-250M-2 | 55 | 2970 | 96 | 93.2 | 0.89 | 2.2 | 7.6 | 2.3 | 89 | 400 |
17 | IE2-280S-2 | 75 | 2975 | 130 | 93.8 | 0.89 | 2 | 6.9 | 2.3 | 91 | 400 |
18 | IE2-280M-2 | 90 | 2975 | 155 | 94.1 | 0.89 | 2 | 6.9 | 2.3 | 91 | 400 |
19 | IE2-315S-2 | 110 | 2975 | 187 | 94.3 | 0.9 | 2 | 7 | 2.2 | 92 | 400 |
20 | IE2-315M-2 | 132 | 2975 | 224 | 94.6 | 0.9 | 2 | 7 | 2.2 | 92 | 400 |
21 | IE2-315L1-2 | 160 | 2975 | 268 | 94.8 | 0.91 | 2 | 7.1 | 2.2 | 92 | 400 |
22 | IE2-315L2-2 | 200 | 2975 | 334 | 95 | 0.91 | 2 | 7.1 | 2.2 | 92 | 400 |
23 | IE2-355M-2 | 250 | 2980 | 418 | 95 | 0.91 | 1.6 | 7.1 | 2.2 | 100 | 400 |
24 | IE2-355L-2 | 315 | 2980 | 526 | 95 | 0.91 | 1.6 | 7.2 | 2.2 | 100 | 400 |
25 | IE2-802-4 | 0.75 | 1420 | 1.8 | 79.6 | 0.76 | 2.3 | 6.4 | 2.3 | 56 | 400 |
26 | IE2-90S-4 | 1.1 | 1420 | 2.6 | 81.4 | 0.77 | 2.3 | 6.6 | 2.3 | 59 | 400 |
27 | IE2-90L-4 | 1.5 | 1420 | 3.5 | 82.8 | 0.78 | 2.3 | 6.7 | 2.3 | 59 | 400 |
28 | IE2-100L1-4 | 2.2 | 1440 | 4.7 | 84.3 | 0.8 | 2.3 | 7.3 | 2.3 | 64 | 400 |
29 | IE2-100L2-4 | 3 | 1440 | 6.2 | 85.5 | 0.81 | 2.3 | 7.5 | 2.3 | 64 | 400 |
30 | IE2-112M-4 | 4 | 1445 | 8.1 | 86.6 | 0.81 | 2.3 | 7.5 | 2.3 | 65 | 400 |
31 | IE2-132S-4 | 5.5 | 1450 | 11.1 | 87.7 | 0.82 | 2 | 7.5 | 2.3 | 71 | 400 |
32 | IE2-132M-4 | 7.5 | 1450 | 14.7 | 88.7 | 0.83 | 2 | 7.3 | 2.3 | 71 | 400 |
33 | IE2-160M-4 | 11 | 1470 | 21.3 | 89.8 | 0.83 | 2.2 | 7.4 | 2.3 | 73 | 400 |
34 | IE2-160L-4 | 15 | 1470 | 28.4 | 90.6 | 0.84 | 2.2 | 7.5 | 2.3 | 73 | 400 |
35 | IE2-180M-4 | 18.5 | 1470 | 34.4 | 91.2 | 0.85 | 2.2 | 7.6 | 2.3 | 76 | 400 |
36 | IE2-180L-4 | 22 | 1470 | 40.8 | 91.6 | 0.85 | 2.2 | 7.7 | 2.3 | 76 | 400 |
37 | IE2-200L-4 | 30 | 1470 | 55.2 | 92.3 | 0.85 | 2.2 | 7.1 | 2.3 | 76 | 400 |
38 | IE2-225S-4 | 37 | 1480 | 67 | 92.7 | 0.86 | 2.2 | 7.3 | 2.3 | 78 | 400 |
39 | IE2-225M-4 | 45 | 1480 | 81.1 | 93.1 | 0.86 | 2.2 | 7.3 | 2.3 | 78 | 400 |
40 | IE2-250M-4 | 55 | 1480 | 99 | 93.5 | 0.86 | 2.2 | 7.3 | 2.3 | 79 | 400 |
41 | IE2-280S-4 | 75 | 1480 | 132 | 94 | 0.87 | 2.2 | 6.8 | 2.3 | 80 | 400 |
42 | IE2-280M-4 | 90 | 1480 | 157 | 94.2 | 0.88 | 2.2 | 6.9 | 2.3 | 80 | 400 |
43 | IE2-315S-4 | 110 | 1480 | 189 | 94.5 | 0.89 | 2.1 | 6.9 | 2.2 | 88 | 400 |
44 | IE2-315M-4 | 132 | 1480 | 226 | 94.7 | 0.89 | 2.1 | 6.9 | 2.2 | 88 | 400 |
45 | IE2-315L1-4 | 160 | 1480 | 270 | 94.9 | 0.9 | 2.2 | 6.9 | 2.2 | 88 | 400 |
46 | IE2-315L2-4 | 200 | 1480 | 337 | 95.1 | 0.9 | 2.1 | 6.9 | 2.2 | 88 | 400 |
47 | IE2-355M-4 | 250 | 1490 | 422 | 95.1 | 0.9 | 2.1 | 6.9 | 2.2 | 95 | 400 |
48 | IE2-355L-4 | 315 | 1490 | 531 | 95.1 | 0.9 | 2.1 | 6.9 | 2.2 | 95 | 400 |
49 | IE2-90S-6 | 0.75 | 930 | 2 | 75.9 | 0.71 | 2 | 5.8 | 2.1 | 57 | 400 |
50 | IE2-90L-6 | 1.1 | 930 | 2.8 | 78.1 | 0.72 | 2 | 5.9 | 2.1 | 57 | 400 |
51 | IE2-100L1-6 | 1.5 | 930 | 3.7 | 79.8 | 0.72 | 2 | 5.9 | 2.1 | 61 | 400 |
52 | IE2-112M-6 | 2.2 | 945 | 5.4 | 81.8 | 0.72 | 2.1 | 6.2 | 2.1 | 65 | 400 |
53 | IE2-132S-6 | 3 | 960 | 7.1 | 83.3 | 0.72 | 2 | 6.4 | 2.1 | 69 | 400 |
54 | IE2-132M1-6 | 4 | 965 | 9.2 | 84.6 | 0.74 | 2 | 6.6 | 2.1 | 69 | 400 |
55 | IE2-132M2-6 | 5.5 | 965 | 12.3 | 86 | 0.75 | 2 | 6.8 | 2.1 | 69 | 400 |
56 | IE2-160M-6 | 7.5 | 970 | 15.9 | 87.2 | 0.78 | 2.1 | 6.8 | 2.1 | 73 | 400 |
57 | IE2-160L-6 | 11 | 970 | 22.7 | 88.7 | 0.79 | 2.1 | 6.9 | 2.1 | 73 | 400 |
58 | IE2-180L-6 | 15 | 980 | 29.8 | 89.7 | 0.81 | 2 | 7.3 | 2.1 | 73 | 400 |
59 | IE2-200L1-6 | 18.5 | 980 | 36.5 | 90.4 | 0.81 | 2.1 | 7.2 | 2.1 | 73 | 400 |
60 | IE2-200L2-6 | 22 | 980 | 43.1 | 90.9 | 0.81 | 2.1 | 7.3 | 2.1 | 73 | 400 |
61 | IE2-225M-6 | 30 | 980 | 57.6 | 91.7 | 0.82 | 2 | 6.8 | 2.1 | 74 | 400 |
62 | IE2-250M-6 | 37 | 980 | 69.8 | 92.2 | 0.83 | 2.1 | 7 | 2.1 | 76 | 400 |
63 | IE2-280S-6 | 45 | 980 | 82 | 92.7 | 0.85 | 2.1 | 7.2 | 2 | 78 | 400 |
64 | IE2-280M-6 | 55 | 980 | 100 | 93.1 | 0.85 | 2.1 | 7.2 | 2 | 78 | 400 |
65 | IE2-315S-6 | 75 | 990 | 136 | 93.7 | 0.85 | 2 | 6.5 | 2 | 83 | 400 |
66 | IE2-315S-6 | 90 | 990 | 163 | 94 | 0.85 | 2 | 6.6 | 2 | 83 | 400 |
67 | IE2-315M-6 | 110 | 990 | 198 | 94.3 | 0.85 | 2 | 6.6 | 2 | 83 | 400 |
68 | IE2-315L1-6 | 132 | 990 | 234 | 94.6 | 0.86 | 2 | 6.6 | 2 | 83 | 400 |
69 | IE2-315L2-6 | 160 | 990 | 283 | 94.8 | 0.86 | 1.9 | 6.7 | 2 | 85 | 400 |
70 | IE2-355M2-6 | 200 | 990 | 353 | 95 | 0.86 | 2 | 6.8 | 2 | 85 | 400 |
71 | IE2-355L-6 | 250 | 990 | 442 | 95 | 0.86 | 2 | 6.8 | 2 | 85 | 400 |
Reviews from the client:
Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
