Aluminum IP44 5.5KW 7.5HP IE3 3 Phase Induction Motor

China Aluminum IP44 5.5KW 7.5HP IE3 3 Phase Induction Motor supplier

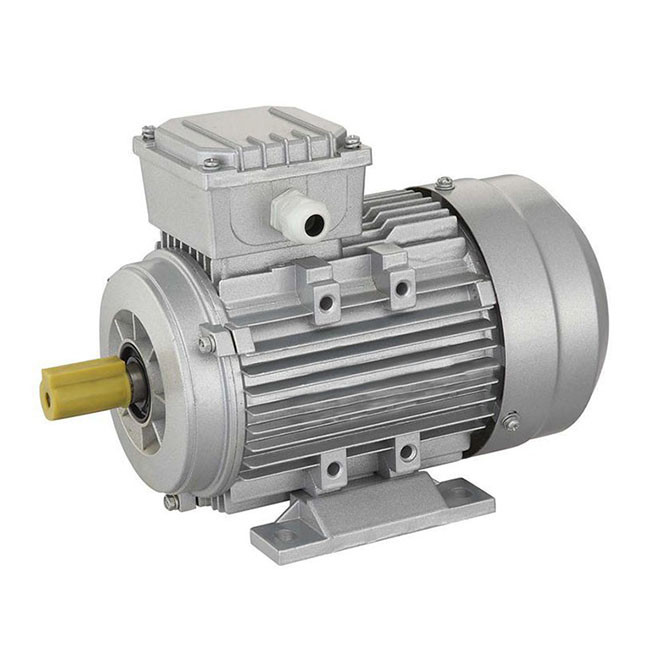

Large Image :  Aluminum IP44 5.5KW 7.5HP IE3 3 Phase Induction Motor

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE3 MS132S-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: $170
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 5.5KW/7.5HP Pole: 4
Phase: Three Phase Housing: Aluminum
Insulation Class: B,F Protection: IP44 / IP54
Rated Voltage: 380V Duty: S1(continuous)
High Light:

IE3 3 Phase Induction Motor

,

7.5HP 3 Phase Induction Motor

,

5.5KW Asynchronous Induction Motors



Descriptions


The efficiency for YE3(IE3)series motor is up to grade 2 energy efficiency in GB18613-2012 Energy Efficiency Limit Value and Grade for Small and Medium Three Phase Induction Electric Motors. The motors meet the IE3 standard of IEC60034-30and have the same efficiency level as America NEMA Premium efficiency motors.

This series of energy-saving type motor is for general use low voltage cage type three-phase induction motors with single speed, totally enclosed fan cooled, and continuous working duty. The motors are suitable for situations without special requirements. They can drive all kinds of general mechanical equipment and widely applied to the machine tool, fan blower, compressor, transporter, conveyor, mixer, printing machine, agriculture machine, and packing machine.

Features:

  • Premium high efficient energy-saving designs
  • High starting torque Low noise
  • Power range:0.75-11kw
  • Frame range:80H-160H
  • Rated Volt:380v,400v,415v,440v,575v,660v,690v.
  • Speed range:2p/3000rpm,4p/1400rpm, 6p/900rpm
  • Construction and Frame housing: TEFC. Cast iron, Aluminum, Steel plate
  • IEC132 Frame and larger frame motors suitable Star/Delta starting
  • Junction box equipped with strong glands
  • Weep holes provide condensation drains
  • Bidirectional fan
  • Motors provided with CE mark
  • Protection class: IP55
  • Thermal protector: Yes
  • Ambient Temperature:-15°C~40°C
  • Altitude: Not exceed 1000m
  • Frequency range:50Hz,60Hz
  • Insulation class: F, H
  • Temperature rise; B
  • Duty; S1,S2.S3
  • Wire connection: Star type for motors up to 3Kw; Delta type for motors 4Kw and above.
  • Bearings: Oversized&sealed ball bearings for DE&NDE(Drive end&Non-drive end)
  • Mount type:
  • B3(feet mount), B5(Big flange mount),C face/B14(small flange mount),
  • V1(end shield with flange).


The difference sample sheet of motors MS, IE2(MS2), IE3(MS3) as below:

Model sample MS motor IE2/MS2 motor IE3/MS3 motor
Efficiency class IE1 IE2 IE3
Efficiency of 4pole-1.1kw 76.2% 81.4% 84.1%
Efficiency of 4pole-5.5kw 85.7% 87% 89.2%
Silicon steel D23,DR510 Hot-rolled DW600/800 Cold-rolled WW470 cold-rolled
Magnet copper wire #120 magnet wire #155 copper rod 180 copper rod
Protection class IP44 IP55 IP55
Government policy Eliminated motors Allow produce and sales Application encouraged



Pre-sales service:
•We is a sales team, with all technical support from the engineering team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customers to design and develop new products. Provide all necessary documents.


After-sales service:
•We respect your feedback after receiving the motors.
•We provide 1-2 years warranty after receipt of motors
•We promises all spare parts available in lifetime use.
•We loge you‘re complaint within 24 hours.





Model Power (V) (A)

Spee

d r/min

Eff.(%) P.F. Tstart/Tn Ist/In Tmax/Tn N.W. (kg)
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0 2.3 9.5
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5 2.3 11
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5 2.4 15
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5 2.4 18
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0 2.4 25
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5 2.4 28.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5 2.4 41
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5 2.4 46.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5 2.4 81
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5 2.4 93
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5 2.4 104
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0 2.4 12
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5 2.4 16
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0 2.4 20
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0 2.4 26
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0 2.4 30
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5 2.4 38
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5 2.4 46
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5 2.4 54
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0 2.4 88
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0 2.4 103
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0 2.3 15
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0 2.3 20
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0 2.3 25
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0 2.3 30
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5 2.3 38.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0 2.3 47.5
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0 2.3 58
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0 2.3 83
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0 2.3 99
