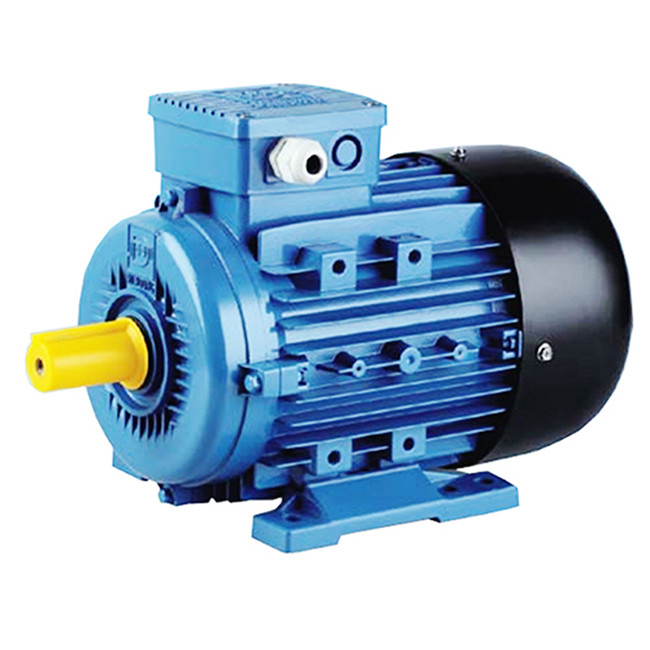

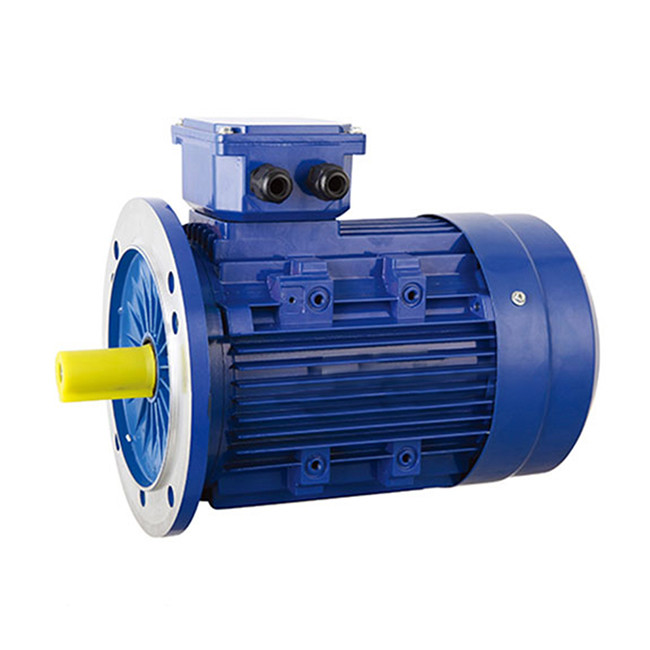

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor

  • Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor
  • Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor
  • Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2-90L-4
Minimum Order Quantity 10PCS
Price $170
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE2 Motor Application Drivng
Power 1.5KW Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP55
Rated Voltage 380V Duty S1(continuous)
Highlight

IE2 Asynchronous Induction Motor

,

1.5KW Asynchronous Induction Motor

,

Aluminum IE2 Electric Motor
Leave a Message
Product Description

IE2 Motor

Aluminum IE2 High-Efficiency Industrial Electric Motor For Industry

This series of incredibly robust industrial Electric Motors in durable aluminum frames are widely used across industry in an extensive range of applications where conditions demand a heavy-duty solution. The motors are manufactured to IE2 High-Efficiency standards and are suitable for applications including Pumping, Air movement, Shredders, Geared motor drives, Air Compressors, and other such plant and equipment

> SPECIFICATION:
> Rated Voltage: 380, 400, 415, 440, 660V
> Rated Frequency: 50, 60 Hz
> Rotate Speed: 910~2970r/min
> Optional explosion-proof function
> Optional variable frequency function

> FEATURES:
> High efficiency
> Low noise
> Energy saving
> Compact structure
> Easy to install and maintain

> SERVICE CONDITION
> Working Temperature: -15~40.c
> Altitude: =<1000m
> Rated Voltage: 380~660V
> Rated Frequency: 50~60Hz
> Duty Type: S1
> Insulation Class: F
> Protection Class: IP55
> Cooling Technique: IC411

> APPLICATION
> Machine tool
> Fan or blower
> Water pump
> Reducer&compressor
> Transportation
> Agricultural machinery
> Food processing and packing industry


IE2 Motor Technical data
NO. Type


kW



 Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise LwdB Voltage
r/min A % cosφ (A) V
1 IE2-801-2 0.75 2850 1.7 77.4 0.82 2.3 6.8 2.3 62 400
2 IE2-802-2 1.1 2870 2.4 79.6 0.83 2.3 7.1 2.3 62 400
3 IE2-90S-2 1.5 2880 3.2 81.3 0.84 2.3 7.3 2.3 67 400
4 IE2-90L-2 2.2 2880 4.5 83.2 0.85 2.3 7.6 2.3 67 400
5 IE2-100L1-2 3 2880 5.9 84.6 0.87 2.2 7.8 2.3 74 400
6 IE2-112M-2 4 2900 7.6 85.8 0.88 2.3 8.1 2.3 77 400
7 IE2-132S1-2 5.5 2910 10.4 87 0.88 2.2 8.2 2.3 79 400
8 IE2-132S2-2 7.5 2910 13.8 88.1 0.89 2.2 7.8 2.3 79 400
9 IE2-160M1-2 11 2940 20 89.4 0.89 2.2 7.9 2.3 81 400
10 IE2-160M2-2 15 2940 26.9 90.3 0.89 2.2 8 2.3 81 400
11 IE2-160L-2 18.5 2940 33 90.9 0.89 2.2 8 2.3 81 400
12 IE2-180M-2 22 2950 39.1 91.3 0.89 2.2 8.1 2.3 83 400
13 IE2-200L1-2 30 2960 52.9 92 0.89 2 7.5 2.3 84 400
14 IE2-200L2-2 37 2960 64.9 92.5 0.89 2 7.5 2.3 84 400
15 IE2-225M-2 45 2960 78.6 92.9 0.89 2.2 7.5 2.3 86 400
16 IE2-250M-2 55 2970 96 93.2 0.89 2.2 7.6 2.3 89 400
17 IE2-280S-2 75 2975 130 93.8 0.89 2 6.9 2.3 91 400
18 IE2-280M-2 90 2975 155 94.1 0.89 2 6.9 2.3 91 400
19 IE2-315S-2 110 2975 187 94.3 0.9 2 7 2.2 92 400
20 IE2-315M-2 132 2975 224 94.6 0.9 2 7 2.2 92 400
21 IE2-315L1-2 160 2975 268 94.8 0.91 2 7.1 2.2 92 400
22 IE2-315L2-2 200 2975 334 95 0.91 2 7.1 2.2 92 400
23 IE2-355M-2 250 2980 418 95 0.91 1.6 7.1 2.2 100 400
24 IE2-355L-2 315 2980 526 95 0.91 1.6 7.2 2.2 100 400
25 IE2-802-4 0.75 1420 1.8 79.6 0.76 2.3 6.4 2.3 56 400
26 IE2-90S-4 1.1 1420 2.6 81.4 0.77 2.3 6.6 2.3 59 400
27 IE2-90L-4 1.5 1420 3.5 82.8 0.78 2.3 6.7 2.3 59 400
28 IE2-100L1-4 2.2 1440 4.7 84.3 0.8 2.3 7.3 2.3 64 400
29 IE2-100L2-4 3 1440 6.2 85.5 0.81 2.3 7.5 2.3 64 400
30 IE2-112M-4 4 1445 8.1 86.6 0.81 2.3 7.5 2.3 65 400
31 IE2-132S-4 5.5 1450 11.1 87.7 0.82 2 7.5 2.3 71 400
32 IE2-132M-4 7.5 1450 14.7 88.7 0.83 2 7.3 2.3 71 400
33 IE2-160M-4 11 1470 21.3 89.8 0.83 2.2 7.4 2.3 73 400
34 IE2-160L-4 15 1470 28.4 90.6 0.84 2.2 7.5 2.3 73 400
35 IE2-180M-4 18.5 1470 34.4 91.2 0.85 2.2 7.6 2.3 76 400
36 IE2-180L-4 22 1470 40.8 91.6 0.85 2.2 7.7 2.3 76 400
37 IE2-200L-4 30 1470 55.2 92.3 0.85 2.2 7.1 2.3 76 400
38 IE2-225S-4 37 1480 67 92.7 0.86 2.2 7.3 2.3 78 400
39 IE2-225M-4 45 1480 81.1 93.1 0.86 2.2 7.3 2.3 78 400
40 IE2-250M-4 55 1480 99 93.5 0.86 2.2 7.3 2.3 79 400
41 IE2-280S-4 75 1480 132 94 0.87 2.2 6.8 2.3 80 400
42 IE2-280M-4 90 1480 157 94.2 0.88 2.2 6.9 2.3 80 400
43 IE2-315S-4 110 1480 189 94.5 0.89 2.1 6.9 2.2 88 400
44 IE2-315M-4 132 1480 226 94.7 0.89 2.1 6.9 2.2 88 400
45 IE2-315L1-4 160 1480 270 94.9 0.9 2.2 6.9 2.2 88 400
46 IE2-315L2-4 200 1480 337 95.1 0.9 2.1 6.9 2.2 88 400
47 IE2-355M-4 250 1490 422 95.1 0.9 2.1 6.9 2.2 95 400
48 IE2-355L-4 315 1490 531 95.1 0.9 2.1 6.9 2.2 95 400
49 IE2-90S-6 0.75 930 2 75.9 0.71 2 5.8 2.1 57 400
50 IE2-90L-6 1.1 930 2.8 78.1 0.72 2 5.9 2.1 57 400
51 IE2-100L1-6 1.5 930 3.7 79.8 0.72 2 5.9 2.1 61 400
52 IE2-112M-6 2.2 945 5.4 81.8 0.72 2.1 6.2 2.1 65 400
53 IE2-132S-6 3 960 7.1 83.3 0.72 2 6.4 2.1 69 400
54 IE2-132M1-6 4 965 9.2 84.6 0.74 2 6.6 2.1 69 400
55 IE2-132M2-6 5.5 965 12.3 86 0.75 2 6.8 2.1 69 400
56 IE2-160M-6 7.5 970 15.9 87.2 0.78 2.1 6.8 2.1 73 400
57 IE2-160L-6 11 970 22.7 88.7 0.79 2.1 6.9 2.1 73 400
58 IE2-180L-6 15 980 29.8 89.7 0.81 2 7.3 2.1 73 400
59 IE2-200L1-6 18.5 980 36.5 90.4 0.81 2.1 7.2 2.1 73 400
60 IE2-200L2-6 22 980 43.1 90.9 0.81 2.1 7.3 2.1 73 400
61 IE2-225M-6 30 980 57.6 91.7 0.82 2 6.8 2.1 74 400
62 IE2-250M-6 37 980 69.8 92.2 0.83 2.1 7 2.1 76 400
63 IE2-280S-6 45 980 82 92.7 0.85 2.1 7.2 2 78 400
64 IE2-280M-6 55 980 100 93.1 0.85 2.1 7.2 2 78 400
65 IE2-315S-6 75 990 136 93.7 0.85 2 6.5 2 83 400
66 IE2-315S-6 90 990 163 94 0.85 2 6.6 2 83 400
67 IE2-315M-6 110 990 198 94.3 0.85 2 6.6 2 83 400
68 IE2-315L1-6 132 990 234 94.6 0.86 2 6.6 2 83 400
69 IE2-315L2-6 160 990 283 94.8 0.86 1.9 6.7 2 85 400
70 IE2-355M2-6 200 990 353 95 0.86 2 6.8 2 85 400
71 IE2-355L-6 250 990 442 95 0.86 2 6.8 2 85 400

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 0

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 1

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 2

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 3

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 4



Reviews from the client:

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 5



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 6









​



Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 7







Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 8

Aluminum 1.5KW IE2 2970r/min Asynchronous Induction Motor 9
