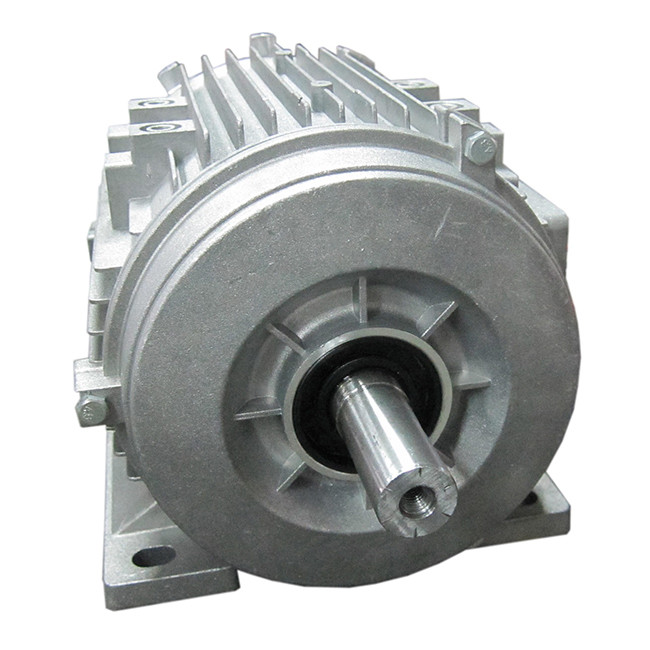

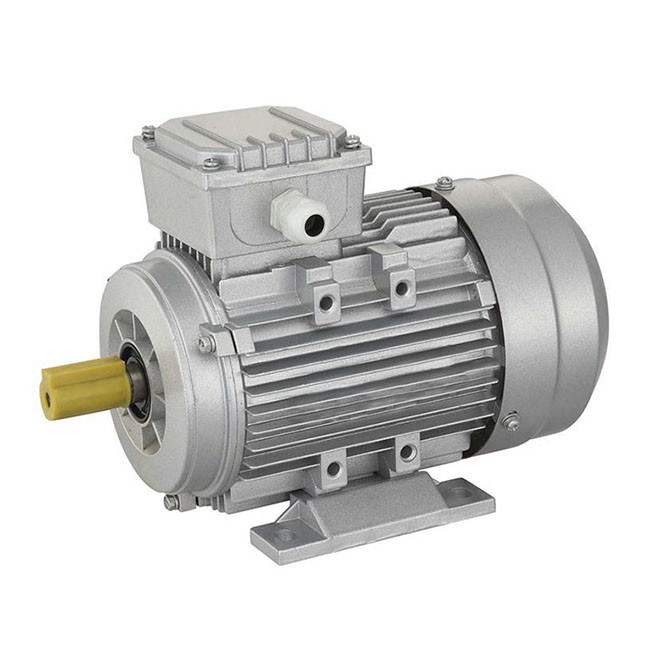

IE3 5.5KW 7.5HP Three Phase Asynchronous Motor For Drivng

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE3 MS132S-4
Minimum Order Quantity 10PCS
Price $170
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE3 Motor Application Drivng
Power 5.5KW/7.5HP Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

7.5HP Three Phase Asynchronous Motor

,

IE3 Three Phase Asynchronous Motor

,

5.5KW Three Phase Ac Motor

Leave a Message
Product Description



Descriptions

IE3 series Super high-efficiency Three Phase asynchronous motor is to achieve energy efficiency limit value of low pressure-totally enclosed fan cooled squirrel cage three-phase asynchronous motor

The product is used in various fields of the national economy, such as machine tools, pumps, fans, compressors, also applied to the transport, stirring, printing,  agricultural machinery, and other types of food not contain flammable, explosive, or corrosive gas applications. The motor is IP55; the cooling method is IC411, continuous duty(s1)

Class F protection degree insulation structure, but the full range of temperature at B level assessment, requested the assessment load noise.

The motor rated voltage is 380V, rated frequency 50HZ, power 0.75-11kw, contain 2p, 4pand 6p motor.

The level of the motor place no more than 1000m

The highest temperature is not more than 40. c, the lowest air temperature is -15.c



IE3 Motor Features:

  • Premium high efficient energy-saving designs
  • High starting torque Low noise
  • Power range:0.75-11kw
  • Frame range:80H-160H
  • Rated Volt:380v,400v,415v,440v,575v,660v,690v.
  • Speed range:2p/3000rpm,4p/1400rpm, 6p/900rpm
  • Construction and Frame housing: TEFC. Cast iron, Aluminum, Steel plate
  • IEC132 Frame and larger frame motors suitable Star/Delta starting
  • Junction box equipped with strong glands
  • Weep holes provide condensation drains
  • Bidirectional fan
  • Motors provided with C.E. mark
  • Protection class: IP55
  • Thermal protector: Yes
  • Ambient Temperature:-15°C~40°C
  • Altitude: Not exceed 1000m
  • Frequency range:50Hz,60Hz
  • Insulation class: F, H
  • Temperature rise; B
  • Duty; S1,S2.S3
  • Wire connection: Star type for motors up to 3Kw; Delta type for motors 4Kw and above.
  • Bearings: Oversized&sealed ball bearings for DE&NDE(Drive end&Non-drive end)
  • Mount type:
  • B3(feet mount), B5(Big flange mount),C face/B14(small flange mount),
  • V1(end shield with flange).


The difference sample sheet of motors M.S., IE2(MS2), IE3(MS3) are as below:

Model sample M.S. motor IE2/MS2 motor IE3/MS3 motor
Efficiency class IE1 IE2 IE3
Efficiency of 4pole-1.1kw 76.2% 81.4% 84.1%
Efficiency of 4pole-5.5kw 85.7% 87% 89.2%
Silicon steel D23,DR510 Hot-rolled DW600/800 Cold-rolled WW470 cold-rolled
Magnet copper wire #120 magnet wire #155 copper rod 180 copper rod
Protection class IP44 IP55 IP55
Government policy Eliminated motors Allow produce and sales Application encouraged



Pre-sales service:
•We are a sales team, with all technical support from the engineering team.
•We value every inquiry sent to us, ensuring a quick competitive offer within 24 hours.
•We cooperate with customers to design and develop new products. Provide all necessary documents.


After-sales service:
•We respect your feedback after receiving the motors.
•We provide 1-2 years warranty after receipt of motors
•We promise all spare parts available for lifetime use.
•We loge you‘re complaint within 24 hours.





Model Power (V) (A)

Spee

d r/min

Eff. (%) P.F. TStart/Tn Ist/In Tmax/Tn N.W. (kg)
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0 2.3 9.5
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5 2.3 11
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5 2.4 15
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5 2.4 18
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0 2.4 25
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5 2.4 28.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5 2.4 41
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5 2.4 46.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5 2.4 81
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5 2.4 93
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5 2.4 104
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0 2.4 12
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5 2.4 16
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0 2.4 20
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0 2.4 26
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0 2.4 30
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5 2.4 38
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5 2.4 46
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5 2.4 54
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0 2.4 88
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0 2.4 103
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0 2.3 15
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0 2.3 20
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0 2.3 25
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0 2.3 30
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5 2.3 38.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0 2.3 47.5
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0 2.3 58
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0 2.3 83
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0 2.3 99
