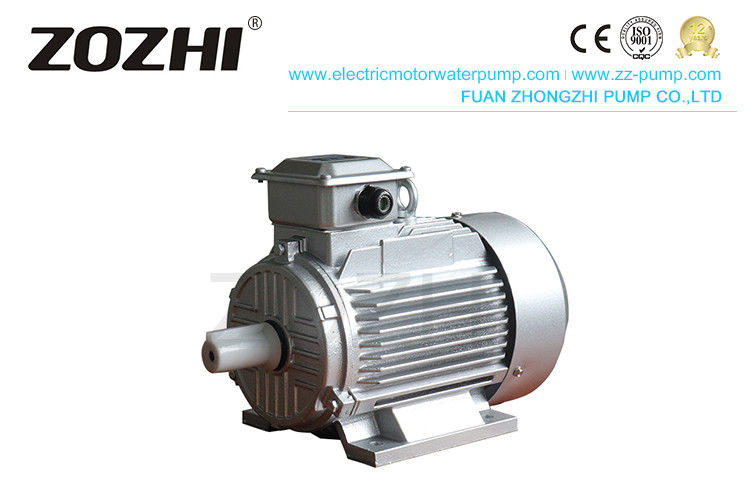

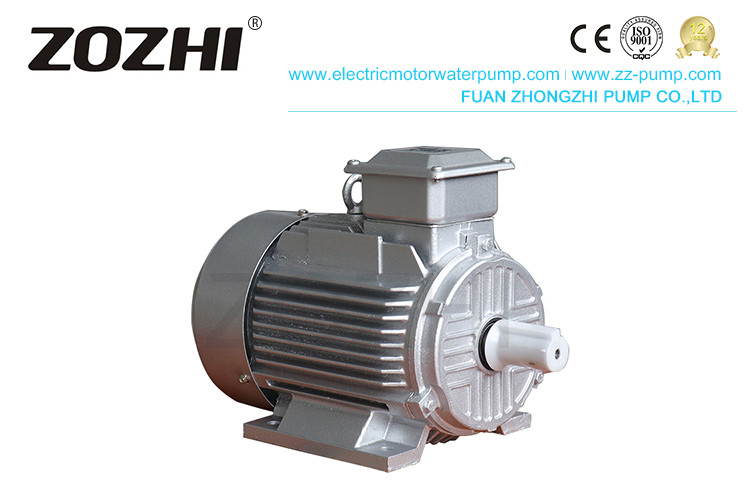

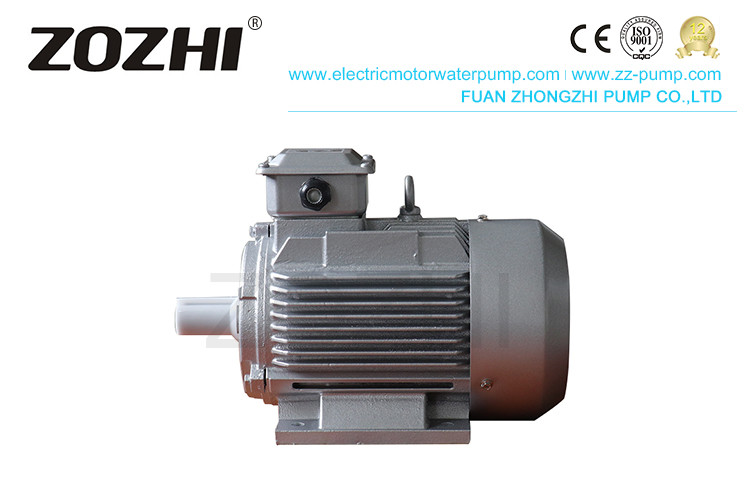

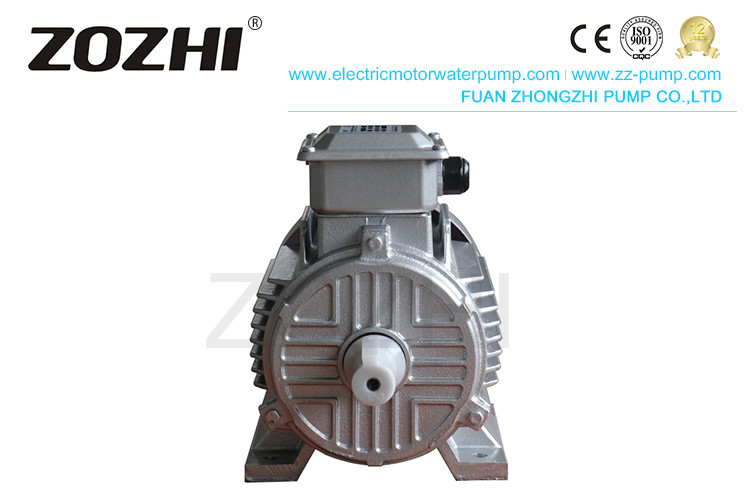

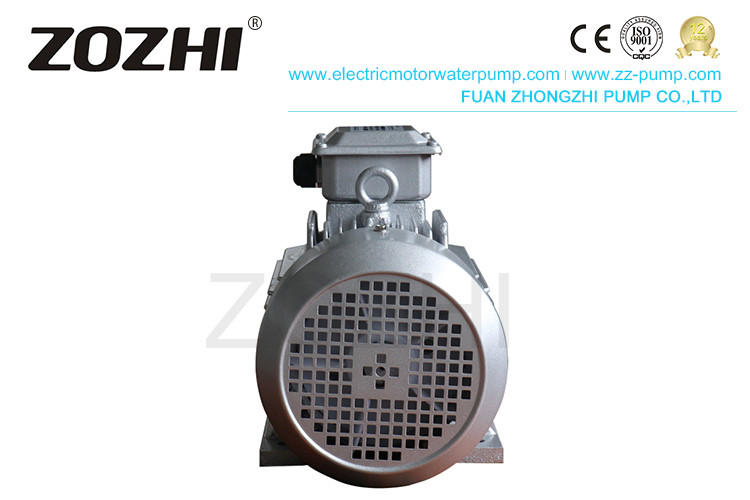

Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors

  • Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors
  • Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors
  • Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors
  • Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors
  • Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors
  • Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2-90L-4
Minimum Order Quantity 10PCS
Price $170
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE2 Motor Application Drivng
Power 1.5KW Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP55
Rated Voltage 380V Duty S1(continuous)
Highlight

IE2 Three Phase Asynchronous Motors

,

1.5KW Three Phase Asynchronous Motors

,

Cast Iron IE2 Asynchronous Motors
Leave a Message
Product Description

IE2 Motor

Y2 IE2 3 phase cast iron high-efficiency electric motor

YE2 series high-efficient three-phase asynchronous motors are widely used energy-saving motors. The YE2 series (IP55) high-efficiency three-phase asynchronous motor supplied by our company is a low-pressure, fully enclosed, and self-ventilated mouse cage motor with high efficiency.


Its energy efficiency meets the Level3 requirement in GB18613-2012 and is consistent with IE2 in the international standard IEC60034-30.


This series of motors has the advantages of compact structure, beautiful appearance, high efficiency, energy-saving, good performance, low vibration, low noise, long working life, high reliability, ample starting torque, and easy maintenance. As a result, it is widely used in general mechanical equipment without special requirements, such as agricultural machinery, food machinery, fans, pumps, machine tools, blenders, and air compressors.


The installation size and powder grade meet the IEC international standard; casing protection grade is IP55, the cooling mode is IC411.F grade insulation but B grade for whole series temperature rise.


Rated voltage is 380V, can also be customized like 415v,460v,640v,etc. The rated frequency is 50HZ, which can also be customized too. The power range is 0.75-375KW, and the connection method is Y type for those under 3kw while using a connection method for other power. The altitude is usually 1000m; the highest temperature cant is higher than 40 ℃; The lowest environment temperature is usually -15 ℃.


Our company can design and produce motors of various voltages, frequencies, and protection levels according to customers' requirements.

IE2 Motor Technical data
NO. Type


kW



 Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise LwdB Voltage
r/min A % cosφ (A) V
1 IE2-801-2 0.75 2850 1.7 77.4 0.82 2.3 6.8 2.3 62 400
2 IE2-802-2 1.1 2870 2.4 79.6 0.83 2.3 7.1 2.3 62 400
3 IE2-90S-2 1.5 2880 3.2 81.3 0.84 2.3 7.3 2.3 67 400
4 IE2-90L-2 2.2 2880 4.5 83.2 0.85 2.3 7.6 2.3 67 400
5 IE2-100L1-2 3 2880 5.9 84.6 0.87 2.2 7.8 2.3 74 400
6 IE2-112M-2 4 2900 7.6 85.8 0.88 2.3 8.1 2.3 77 400
7 IE2-132S1-2 5.5 2910 10.4 87 0.88 2.2 8.2 2.3 79 400
8 IE2-132S2-2 7.5 2910 13.8 88.1 0.89 2.2 7.8 2.3 79 400
9 IE2-160M1-2 11 2940 20 89.4 0.89 2.2 7.9 2.3 81 400
10 IE2-160M2-2 15 2940 26.9 90.3 0.89 2.2 8 2.3 81 400
11 IE2-160L-2 18.5 2940 33 90.9 0.89 2.2 8 2.3 81 400
12 IE2-180M-2 22 2950 39.1 91.3 0.89 2.2 8.1 2.3 83 400
13 IE2-200L1-2 30 2960 52.9 92 0.89 2 7.5 2.3 84 400
14 IE2-200L2-2 37 2960 64.9 92.5 0.89 2 7.5 2.3 84 400
15 IE2-225M-2 45 2960 78.6 92.9 0.89 2.2 7.5 2.3 86 400
16 IE2-250M-2 55 2970 96 93.2 0.89 2.2 7.6 2.3 89 400
17 IE2-280S-2 75 2975 130 93.8 0.89 2 6.9 2.3 91 400
18 IE2-280M-2 90 2975 155 94.1 0.89 2 6.9 2.3 91 400
19 IE2-315S-2 110 2975 187 94.3 0.9 2 7 2.2 92 400
20 IE2-315M-2 132 2975 224 94.6 0.9 2 7 2.2 92 400
21 IE2-315L1-2 160 2975 268 94.8 0.91 2 7.1 2.2 92 400
22 IE2-315L2-2 200 2975 334 95 0.91 2 7.1 2.2 92 400
23 IE2-355M-2 250 2980 418 95 0.91 1.6 7.1 2.2 100 400
24 IE2-355L-2 315 2980 526 95 0.91 1.6 7.2 2.2 100 400
25 IE2-802-4 0.75 1420 1.8 79.6 0.76 2.3 6.4 2.3 56 400
26 IE2-90S-4 1.1 1420 2.6 81.4 0.77 2.3 6.6 2.3 59 400
27 IE2-90L-4 1.5 1420 3.5 82.8 0.78 2.3 6.7 2.3 59 400
28 IE2-100L1-4 2.2 1440 4.7 84.3 0.8 2.3 7.3 2.3 64 400
29 IE2-100L2-4 3 1440 6.2 85.5 0.81 2.3 7.5 2.3 64 400
30 IE2-112M-4 4 1445 8.1 86.6 0.81 2.3 7.5 2.3 65 400
31 IE2-132S-4 5.5 1450 11.1 87.7 0.82 2 7.5 2.3 71 400
32 IE2-132M-4 7.5 1450 14.7 88.7 0.83 2 7.3 2.3 71 400
33 IE2-160M-4 11 1470 21.3 89.8 0.83 2.2 7.4 2.3 73 400
34 IE2-160L-4 15 1470 28.4 90.6 0.84 2.2 7.5 2.3 73 400
35 IE2-180M-4 18.5 1470 34.4 91.2 0.85 2.2 7.6 2.3 76 400
36 IE2-180L-4 22 1470 40.8 91.6 0.85 2.2 7.7 2.3 76 400
37 IE2-200L-4 30 1470 55.2 92.3 0.85 2.2 7.1 2.3 76 400
38 IE2-225S-4 37 1480 67 92.7 0.86 2.2 7.3 2.3 78 400
39 IE2-225M-4 45 1480 81.1 93.1 0.86 2.2 7.3 2.3 78 400
40 IE2-250M-4 55 1480 99 93.5 0.86 2.2 7.3 2.3 79 400
41 IE2-280S-4 75 1480 132 94 0.87 2.2 6.8 2.3 80 400
42 IE2-280M-4 90 1480 157 94.2 0.88 2.2 6.9 2.3 80 400
43 IE2-315S-4 110 1480 189 94.5 0.89 2.1 6.9 2.2 88 400
44 IE2-315M-4 132 1480 226 94.7 0.89 2.1 6.9 2.2 88 400
45 IE2-315L1-4 160 1480 270 94.9 0.9 2.2 6.9 2.2 88 400
46 IE2-315L2-4 200 1480 337 95.1 0.9 2.1 6.9 2.2 88 400
47 IE2-355M-4 250 1490 422 95.1 0.9 2.1 6.9 2.2 95 400
48 IE2-355L-4 315 1490 531 95.1 0.9 2.1 6.9 2.2 95 400
49 IE2-90S-6 0.75 930 2 75.9 0.71 2 5.8 2.1 57 400
50 IE2-90L-6 1.1 930 2.8 78.1 0.72 2 5.9 2.1 57 400
51 IE2-100L1-6 1.5 930 3.7 79.8 0.72 2 5.9 2.1 61 400
52 IE2-112M-6 2.2 945 5.4 81.8 0.72 2.1 6.2 2.1 65 400
53 IE2-132S-6 3 960 7.1 83.3 0.72 2 6.4 2.1 69 400
54 IE2-132M1-6 4 965 9.2 84.6 0.74 2 6.6 2.1 69 400
55 IE2-132M2-6 5.5 965 12.3 86 0.75 2 6.8 2.1 69 400
56 IE2-160M-6 7.5 970 15.9 87.2 0.78 2.1 6.8 2.1 73 400
57 IE2-160L-6 11 970 22.7 88.7 0.79 2.1 6.9 2.1 73 400
58 IE2-180L-6 15 980 29.8 89.7 0.81 2 7.3 2.1 73 400
59 IE2-200L1-6 18.5 980 36.5 90.4 0.81 2.1 7.2 2.1 73 400
60 IE2-200L2-6 22 980 43.1 90.9 0.81 2.1 7.3 2.1 73 400
61 IE2-225M-6 30 980 57.6 91.7 0.82 2 6.8 2.1 74 400
62 IE2-250M-6 37 980 69.8 92.2 0.83 2.1 7 2.1 76 400
63 IE2-280S-6 45 980 82 92.7 0.85 2.1 7.2 2 78 400
64 IE2-280M-6 55 980 100 93.1 0.85 2.1 7.2 2 78 400
65 IE2-315S-6 75 990 136 93.7 0.85 2 6.5 2 83 400
66 IE2-315S-6 90 990 163 94 0.85 2 6.6 2 83 400
67 IE2-315M-6 110 990 198 94.3 0.85 2 6.6 2 83 400
68 IE2-315L1-6 132 990 234 94.6 0.86 2 6.6 2 83 400
69 IE2-315L2-6 160 990 283 94.8 0.86 1.9 6.7 2 85 400
70 IE2-355M2-6 200 990 353 95 0.86 2 6.8 2 85 400
71 IE2-355L-6 250 990 442 95 0.86 2 6.8 2 85 400

Reviews from the client:

Cast Iron 1.5KW IE2 Three Phase Asynchronous Motors 2



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
