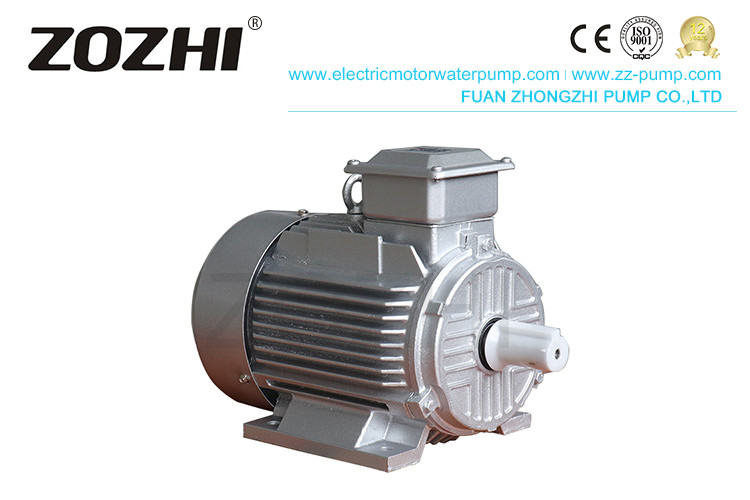

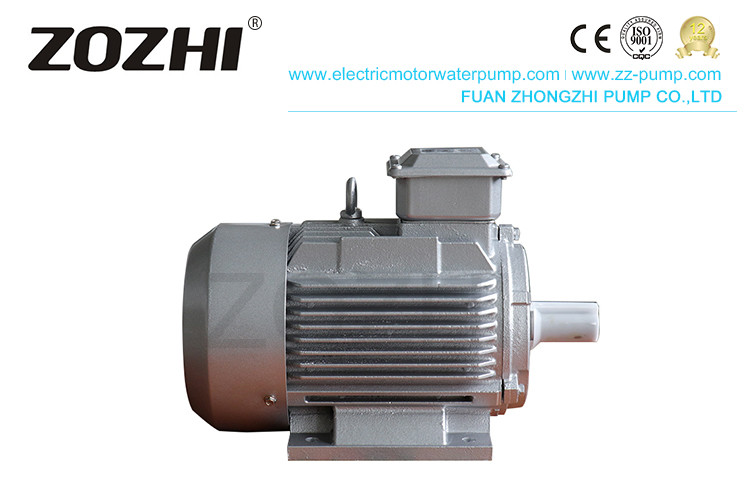

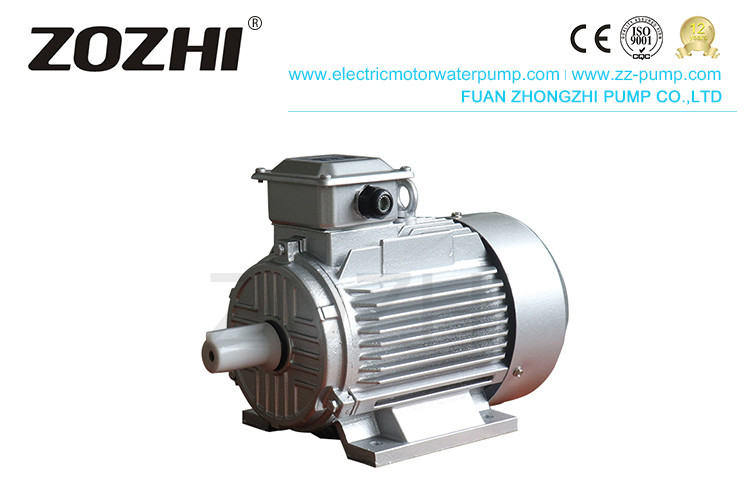

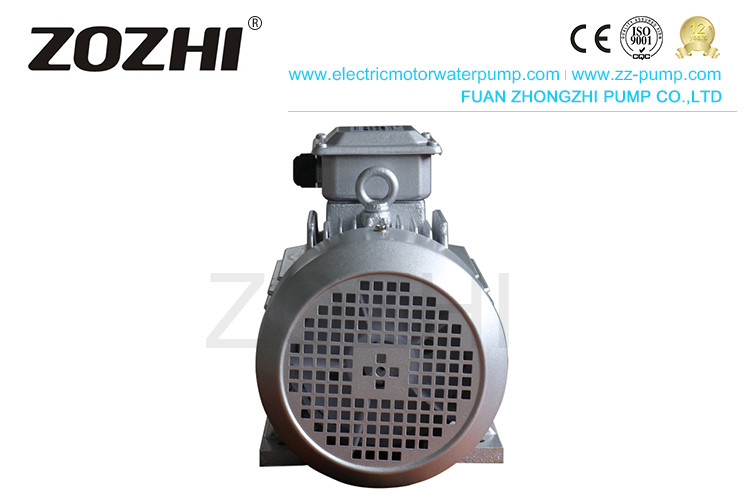

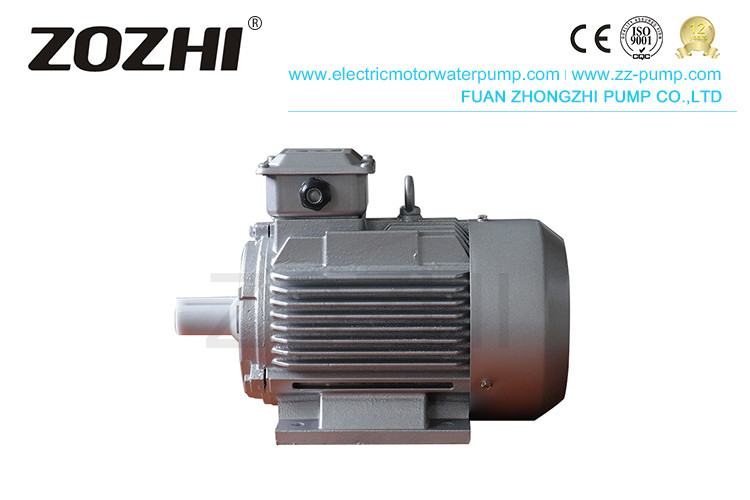

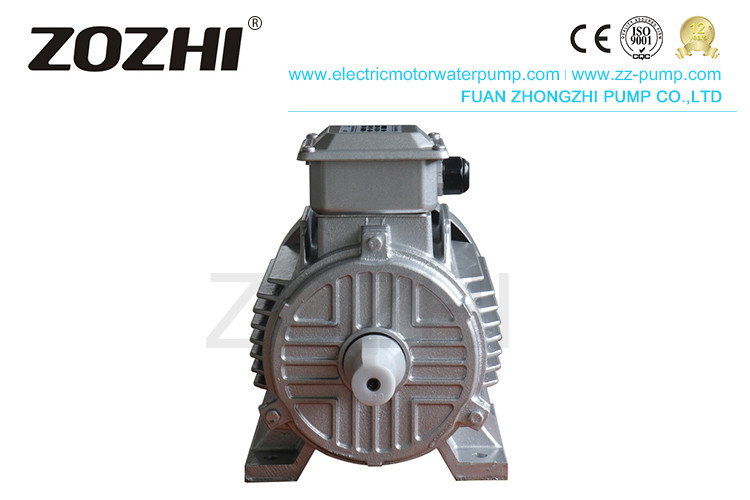

Three Phase Y2 Series IP56 1.5KW IE2 Ac Induction Motor
Place of Origin | FUAN CHINA |
---|---|
Brand Name | ZOZHI |
Certification | CE,ISO |
Model Number | IE2-90L-4 |
Minimum Order Quantity | 10PCS |
Price | $170 |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | L/C, T/T |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | IE2 Motor | Application | Drivng |
---|---|---|---|
Power | 1.5KW | Pole | 4 |
Phase | Three Phase | Housing | Cast Iron |
Insulation Class | B,F | Protection | IP55 |
Rated Voltage | 380V | Duty | S1(continuous) |
High Light | 1.5KWAc Induction Motor,IE2 Ac Induction Motor,Three Phase IE2 Induction Motor |
Product Description
IE2 Motor
Type | Asynchronous/Induction Motor |
Frequency | 50HZ/60HZ |
Phase | Three-phase |
AC Voltage | 220/380V,380/660V,230/400V,400/690V,440V |
Efficiency | I.E., 2 |
Winding | Copper wire |
Housing | Cast Iron |
Duty | Continuous |
Warranty | 24 months |
Insulation class | Class B, Class F |
Protection class | IP54,IP55,IP56 |
Details
The three-phase asynchronous motor of the YE2 series is in line with the third efficiency standard in the provisions of GB 18813-2012 "the energy efficiency limit and the energy efficiency rating of small and medium-sized three-phase asynchronous motors. And the improvement of the efficiency in its design is in line with the state's requirements on the energy-saving and consumption reduction of the manufacturing sector.
YE2 series motors with the mounting dimension following standard IEC60034, It has good features like optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class. YE2 series motors can be widely used in various kinds of general use machinery like fans, pumps, machine tools, compressors, transportation, etc. They can also be used in hazardous areas with oil and chemical, steel plants, mining industry.
♦Site conditions
YE2 series motors air suitable for almost all applications and operate satisfactorily at temperatures from -20℃ to +40℃ and altitudes up to 1000 meters above sea level
♦Temperature and Insulation
The Maters' insulation system is designed by Class F(155℃), operated with Class B(80K), which increases the motor's useful life and reliability.
♦Cooling and ventilation
The standard cooling method is Enclosed Fan Cooled (TEFC) following IC411 of IEC60034-6. Standard motors are equipped with radial flow plastic fans.
IE2 Motor Technical data | |||||||||||
NO. | Type |
|
Speed | Amps | EFF. | P.F. | LRT/RLT | LRA/RLA | BDT/RLT | Noise LwdB | Voltage |
r/min | A | % | cosφ | (A) | V | ||||||
1 | IE2-801-2 | 0.75 | 2850 | 1.7 | 77.4 | 0.82 | 2.3 | 6.8 | 2.3 | 62 | 400 |
2 | IE2-802-2 | 1.1 | 2870 | 2.4 | 79.6 | 0.83 | 2.3 | 7.1 | 2.3 | 62 | 400 |
3 | IE2-90S-2 | 1.5 | 2880 | 3.2 | 81.3 | 0.84 | 2.3 | 7.3 | 2.3 | 67 | 400 |
4 | IE2-90L-2 | 2.2 | 2880 | 4.5 | 83.2 | 0.85 | 2.3 | 7.6 | 2.3 | 67 | 400 |
5 | IE2-100L1-2 | 3 | 2880 | 5.9 | 84.6 | 0.87 | 2.2 | 7.8 | 2.3 | 74 | 400 |
6 | IE2-112M-2 | 4 | 2900 | 7.6 | 85.8 | 0.88 | 2.3 | 8.1 | 2.3 | 77 | 400 |
7 | IE2-132S1-2 | 5.5 | 2910 | 10.4 | 87 | 0.88 | 2.2 | 8.2 | 2.3 | 79 | 400 |
8 | IE2-132S2-2 | 7.5 | 2910 | 13.8 | 88.1 | 0.89 | 2.2 | 7.8 | 2.3 | 79 | 400 |
9 | IE2-160M1-2 | 11 | 2940 | 20 | 89.4 | 0.89 | 2.2 | 7.9 | 2.3 | 81 | 400 |
10 | IE2-160M2-2 | 15 | 2940 | 26.9 | 90.3 | 0.89 | 2.2 | 8 | 2.3 | 81 | 400 |
11 | IE2-160L-2 | 18.5 | 2940 | 33 | 90.9 | 0.89 | 2.2 | 8 | 2.3 | 81 | 400 |
12 | IE2-180M-2 | 22 | 2950 | 39.1 | 91.3 | 0.89 | 2.2 | 8.1 | 2.3 | 83 | 400 |
13 | IE2-200L1-2 | 30 | 2960 | 52.9 | 92 | 0.89 | 2 | 7.5 | 2.3 | 84 | 400 |
14 | IE2-200L2-2 | 37 | 2960 | 64.9 | 92.5 | 0.89 | 2 | 7.5 | 2.3 | 84 | 400 |
15 | IE2-225M-2 | 45 | 2960 | 78.6 | 92.9 | 0.89 | 2.2 | 7.5 | 2.3 | 86 | 400 |
16 | IE2-250M-2 | 55 | 2970 | 96 | 93.2 | 0.89 | 2.2 | 7.6 | 2.3 | 89 | 400 |
17 | IE2-280S-2 | 75 | 2975 | 130 | 93.8 | 0.89 | 2 | 6.9 | 2.3 | 91 | 400 |
18 | IE2-280M-2 | 90 | 2975 | 155 | 94.1 | 0.89 | 2 | 6.9 | 2.3 | 91 | 400 |
19 | IE2-315S-2 | 110 | 2975 | 187 | 94.3 | 0.9 | 2 | 7 | 2.2 | 92 | 400 |
20 | IE2-315M-2 | 132 | 2975 | 224 | 94.6 | 0.9 | 2 | 7 | 2.2 | 92 | 400 |
21 | IE2-315L1-2 | 160 | 2975 | 268 | 94.8 | 0.91 | 2 | 7.1 | 2.2 | 92 | 400 |
22 | IE2-315L2-2 | 200 | 2975 | 334 | 95 | 0.91 | 2 | 7.1 | 2.2 | 92 | 400 |
23 | IE2-355M-2 | 250 | 2980 | 418 | 95 | 0.91 | 1.6 | 7.1 | 2.2 | 100 | 400 |
24 | IE2-355L-2 | 315 | 2980 | 526 | 95 | 0.91 | 1.6 | 7.2 | 2.2 | 100 | 400 |
25 | IE2-802-4 | 0.75 | 1420 | 1.8 | 79.6 | 0.76 | 2.3 | 6.4 | 2.3 | 56 | 400 |
26 | IE2-90S-4 | 1.1 | 1420 | 2.6 | 81.4 | 0.77 | 2.3 | 6.6 | 2.3 | 59 | 400 |
27 | IE2-90L-4 | 1.5 | 1420 | 3.5 | 82.8 | 0.78 | 2.3 | 6.7 | 2.3 | 59 | 400 |
28 | IE2-100L1-4 | 2.2 | 1440 | 4.7 | 84.3 | 0.8 | 2.3 | 7.3 | 2.3 | 64 | 400 |
29 | IE2-100L2-4 | 3 | 1440 | 6.2 | 85.5 | 0.81 | 2.3 | 7.5 | 2.3 | 64 | 400 |
30 | IE2-112M-4 | 4 | 1445 | 8.1 | 86.6 | 0.81 | 2.3 | 7.5 | 2.3 | 65 | 400 |
31 | IE2-132S-4 | 5.5 | 1450 | 11.1 | 87.7 | 0.82 | 2 | 7.5 | 2.3 | 71 | 400 |
32 | IE2-132M-4 | 7.5 | 1450 | 14.7 | 88.7 | 0.83 | 2 | 7.3 | 2.3 | 71 | 400 |
33 | IE2-160M-4 | 11 | 1470 | 21.3 | 89.8 | 0.83 | 2.2 | 7.4 | 2.3 | 73 | 400 |
34 | IE2-160L-4 | 15 | 1470 | 28.4 | 90.6 | 0.84 | 2.2 | 7.5 | 2.3 | 73 | 400 |
35 | IE2-180M-4 | 18.5 | 1470 | 34.4 | 91.2 | 0.85 | 2.2 | 7.6 | 2.3 | 76 | 400 |
36 | IE2-180L-4 | 22 | 1470 | 40.8 | 91.6 | 0.85 | 2.2 | 7.7 | 2.3 | 76 | 400 |
37 | IE2-200L-4 | 30 | 1470 | 55.2 | 92.3 | 0.85 | 2.2 | 7.1 | 2.3 | 76 | 400 |
38 | IE2-225S-4 | 37 | 1480 | 67 | 92.7 | 0.86 | 2.2 | 7.3 | 2.3 | 78 | 400 |
39 | IE2-225M-4 | 45 | 1480 | 81.1 | 93.1 | 0.86 | 2.2 | 7.3 | 2.3 | 78 | 400 |
40 | IE2-250M-4 | 55 | 1480 | 99 | 93.5 | 0.86 | 2.2 | 7.3 | 2.3 | 79 | 400 |
41 | IE2-280S-4 | 75 | 1480 | 132 | 94 | 0.87 | 2.2 | 6.8 | 2.3 | 80 | 400 |
42 | IE2-280M-4 | 90 | 1480 | 157 | 94.2 | 0.88 | 2.2 | 6.9 | 2.3 | 80 | 400 |
43 | IE2-315S-4 | 110 | 1480 | 189 | 94.5 | 0.89 | 2.1 | 6.9 | 2.2 | 88 | 400 |
44 | IE2-315M-4 | 132 | 1480 | 226 | 94.7 | 0.89 | 2.1 | 6.9 | 2.2 | 88 | 400 |
45 | IE2-315L1-4 | 160 | 1480 | 270 | 94.9 | 0.9 | 2.2 | 6.9 | 2.2 | 88 | 400 |
46 | IE2-315L2-4 | 200 | 1480 | 337 | 95.1 | 0.9 | 2.1 | 6.9 | 2.2 | 88 | 400 |
47 | IE2-355M-4 | 250 | 1490 | 422 | 95.1 | 0.9 | 2.1 | 6.9 | 2.2 | 95 | 400 |
48 | IE2-355L-4 | 315 | 1490 | 531 | 95.1 | 0.9 | 2.1 | 6.9 | 2.2 | 95 | 400 |
49 | IE2-90S-6 | 0.75 | 930 | 2 | 75.9 | 0.71 | 2 | 5.8 | 2.1 | 57 | 400 |
50 | IE2-90L-6 | 1.1 | 930 | 2.8 | 78.1 | 0.72 | 2 | 5.9 | 2.1 | 57 | 400 |
51 | IE2-100L1-6 | 1.5 | 930 | 3.7 | 79.8 | 0.72 | 2 | 5.9 | 2.1 | 61 | 400 |
52 | IE2-112M-6 | 2.2 | 945 | 5.4 | 81.8 | 0.72 | 2.1 | 6.2 | 2.1 | 65 | 400 |
53 | IE2-132S-6 | 3 | 960 | 7.1 | 83.3 | 0.72 | 2 | 6.4 | 2.1 | 69 | 400 |
54 | IE2-132M1-6 | 4 | 965 | 9.2 | 84.6 | 0.74 | 2 | 6.6 | 2.1 | 69 | 400 |
55 | IE2-132M2-6 | 5.5 | 965 | 12.3 | 86 | 0.75 | 2 | 6.8 | 2.1 | 69 | 400 |
56 | IE2-160M-6 | 7.5 | 970 | 15.9 | 87.2 | 0.78 | 2.1 | 6.8 | 2.1 | 73 | 400 |
57 | IE2-160L-6 | 11 | 970 | 22.7 | 88.7 | 0.79 | 2.1 | 6.9 | 2.1 | 73 | 400 |
58 | IE2-180L-6 | 15 | 980 | 29.8 | 89.7 | 0.81 | 2 | 7.3 | 2.1 | 73 | 400 |
59 | IE2-200L1-6 | 18.5 | 980 | 36.5 | 90.4 | 0.81 | 2.1 | 7.2 | 2.1 | 73 | 400 |
60 | IE2-200L2-6 | 22 | 980 | 43.1 | 90.9 | 0.81 | 2.1 | 7.3 | 2.1 | 73 | 400 |
61 | IE2-225M-6 | 30 | 980 | 57.6 | 91.7 | 0.82 | 2 | 6.8 | 2.1 | 74 | 400 |
62 | IE2-250M-6 | 37 | 980 | 69.8 | 92.2 | 0.83 | 2.1 | 7 | 2.1 | 76 | 400 |
63 | IE2-280S-6 | 45 | 980 | 82 | 92.7 | 0.85 | 2.1 | 7.2 | 2 | 78 | 400 |
64 | IE2-280M-6 | 55 | 980 | 100 | 93.1 | 0.85 | 2.1 | 7.2 | 2 | 78 | 400 |
65 | IE2-315S-6 | 75 | 990 | 136 | 93.7 | 0.85 | 2 | 6.5 | 2 | 83 | 400 |
66 | IE2-315S-6 | 90 | 990 | 163 | 94 | 0.85 | 2 | 6.6 | 2 | 83 | 400 |
67 | IE2-315M-6 | 110 | 990 | 198 | 94.3 | 0.85 | 2 | 6.6 | 2 | 83 | 400 |
68 | IE2-315L1-6 | 132 | 990 | 234 | 94.6 | 0.86 | 2 | 6.6 | 2 | 83 | 400 |
69 | IE2-315L2-6 | 160 | 990 | 283 | 94.8 | 0.86 | 1.9 | 6.7 | 2 | 85 | 400 |
70 | IE2-355M2-6 | 200 | 990 | 353 | 95 | 0.86 | 2 | 6.8 | 2 | 85 | 400 |
71 | IE2-355L-6 | 250 | 990 | 442 | 95 | 0.86 | 2 | 6.8 | 2 | 85 | 400 |
Reviews from the client:
Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
