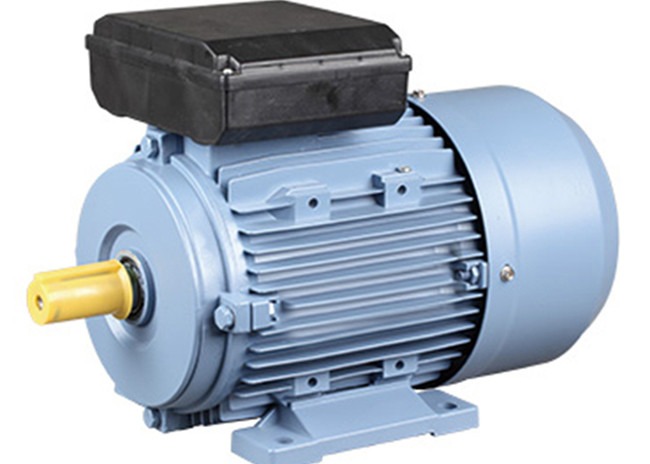

3.7kw 2800r/min Single Phase Asynchronous Motor Dual Capacitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Phase Induction Motor | Output | 3.7kw |
|---|---|---|---|
| Pole | 4 | Protection Class | IP55 |
| Frequency | 50Hz/60hz | Insulation | Class F |
| Type | Asynchronous Motor | ||
| High Light | 2800r/min Single Phase Asynchronous Motor,3.7kw Single Phase Asynchronous Motor,IP55 Dual Capacitor Induction Motor |
||
Product Description
3.7kw 2800r/min Single Phase Asynchronous Motor Dual Capacitor
Single Phase Induction Motor Description:
ML series single-phase induction motor conforms to the IEC standard. Be made of selected quality materials, the latest design in its entirety: good performance, low noise, slight vibration, and safety and reliable operation. Nice appearance, lightweight. Be maintained very conveniently, simple construction—higher starting torque, 2.5times more than the rated torque. Be used in many applications, the higher starting torque is demanded, such as air-compressors, pumps, refrigerators, medical apparatus, instruments, and many other machines needing full-load start.
Working Condition
Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%
DATA
| Model | Power | Speed | Eff. | P.F. | Tstart/Tn | Tmax/Tn | Ist/In (A) | ||
| (KW) | (V) | (A) | (r/min) | (%) | |||||
| ML711-2 | 0.37 | 220 | 2.73 | 2800 | 67 | 0.92 | 2.3 | 1.8 | 16 |
| ML712-2 | 0.55 | 220 | 3.88 | 2800 | 70 | 0.92 | 2.5 | 1.8 | 21 |
| ML801-2 | 0.75 | 220 | 5.15 | 2800 | 72 | 0.92 | 2.5 | 1.8 | 30 |
| ML802-2 | 1.1 | 220 | 7.02 | 2800 | 75 | 0.95 | 2.5 | 1.8 | 40 |
| ML90S-2 | 1.5 | 220 | 9.44 | 2800 | 76 | 0.95 | 2.5 | 1.8 | 55 |
| ML90L-2 | 2.2 | 220 | 13.67 | 2800 | 77 | 0.95 | 2.5 | 1.8 | 80 |
| ML100L-2 | 3 | 220 | 18.2 | 2800 | 79 | 0.95 | 2.5 | 1.8 | 110 |
| ML711-4 | 0.25 | 220 | 1.99 | 1400 | 62 | 0.92 | 2.5 | 1.8 | 12 |
| ML712-4 | 0.37 | 220 | 2.81 | 1400 | 65 | 0.92 | 2.5 | 1.8 | 16 |
| ML801-4 | 0.55 | 220 | 4 | 1400 | 68 | 0.92 | 2.5 | 1.8 | 21 |
| ML802-4 | 0.75 | 220 | 5.22 | 1400 | 71 | 0.92 | 2.5 | 1.8 | 30 |
| ML90S-4 | 1.1 | 220 | 7.2 | 1400 | 73 | 0.95 | 2.5 | 1.8 | 40 |
| ML90L-4 | 1.5 | 220 | 9.57 | 1400 | 75 | 0.95 | 2.5 | 1.8 | 55 |
| ML100L1-4 | 2.2 | 220 | 13.9 | 1400 | 76 | 0.95 | 2.5 | 1.8 | 80 |
| ML100L2-4 | 3 | 220 | 18.6 | 1400 | 77 | 0.95 | 2.5 | 1.8 | 110 |
Installation size and overall dimension:
Our Service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
