Aluminum 71 0.25HP AC Asynchronous Motor For Magnetic Tumbler

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MC711-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Output 0.25HP
Pole 2 Protection Class IP55
Frequency 50Hz/60hz Insulation Class F
Type Asynchronous Motor
High Light

0.25HP AC Asynchronous Motor

,

Aluminium 71 AC Asynchronous Motor

,

Magnetic Tumbler Ac Induction Motors

Leave a Message
Product Description

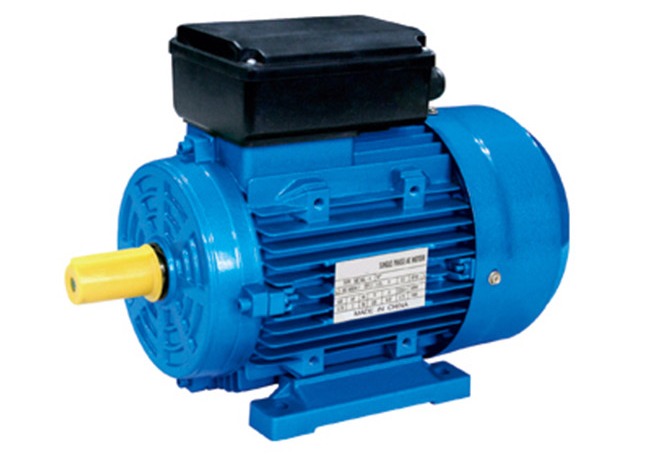

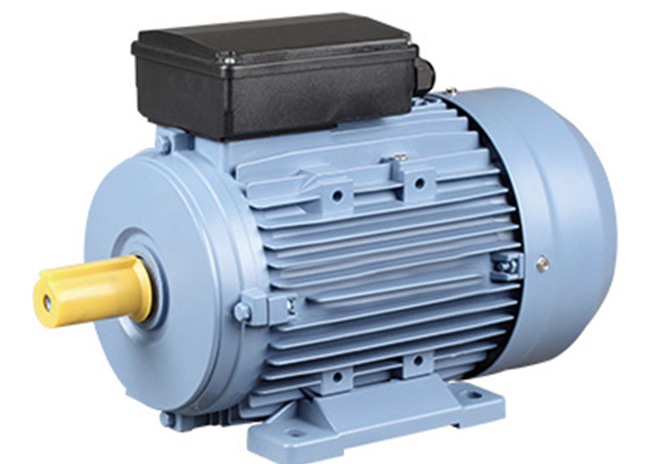

  Aluminum 71 0.25HP AC Asynchronous Motor For Magnetic Tumbler​

Single Phase Induction Motor


Description:

Conform to the IEC standard. Be made of selected quality materials, the latest design in its entirety: good performance, low noise, slight vibration, and safety and reliable operation. Nice appearance, lightweight. Be maintained very conveniently, simple construction—higher starting torque, 2.5times more than the rated torque. Be used in many applications, the higher starting torque is demanded, such as air-compressors, pumps, refrigerators, medical apparatus, instruments, and many other machines needing full-load start.



Working Condition
Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%




DATA



Model Output     Speed Eff. P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP (V) (A) (r/min) (%)
MC711-2 0.18 0.25 220 1.89 2800 60 0.72 3 1.8 12
MC712-2 0.25 0.34 220 2.4 2800 64 0.74 3 1.8 15
MC801-2 0.37 0.5 220 3.36 2800 65 0.77 2.8 1.8 21
MC802-2 0.55 0.75 220 4.65 2800 68 0.79 2.8 1.8 29
MC90S-2 0.75 1 220 6.09 2800 70 0.8 2.5 1.8 37
MC90L-2 1.1 1.5 220 8.68 2800 72 0.8 2.5 1.8 60
MC100L1-2 1.5 2 220 11.38 2900 74 0.81 2.5 1.8 80
MC100L2-2 2.2 3 220 16.48 2900 75 0.81 2.2 1.8 120
MC112M-2 3 4 220 21.88 2900 76 0.82 2.2 1.8 150
MC711-4 0.12 0.16 220 1.88 1400 50 0.58 3 1.8 9
MC712-4 0.18 0.25 220 2.49 1400 53 0.62 2.8 1.8 12
MC801-4 0.25 0.34 220 3.11 1400 58 0.63 2.8 1.8 15
MC802-4 0.37 0.5 220 4.24 1400 62 0.64 2.5 1.8 21
MC90S-4 0.55 0.75 220 5.49 1400 66 0.69 2.5 1.8 29
MC90L-4 0.75 1 220 6.87 1400 68 0.73 2.5 1.8 37
MC100L1-4 1.1 1.5 220 9.52 1450 71 0.74 2.5 1.8 60
MC100L2-4 1.5 2 220 12.45 1450 73 0.75 2.5 1.8 80
MC112M-4 2.2 3 220 17.78 1450 74 0.76 2.2 1.8 120




Single Phase Induction Motor Installation size and overall dimension:



Aluminum 71 0.25HP AC Asynchronous Motor For Magnetic Tumbler 0




Our Service:

1. Directly factory sale

2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
