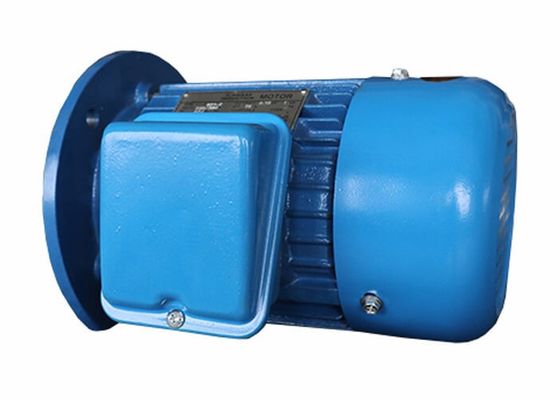

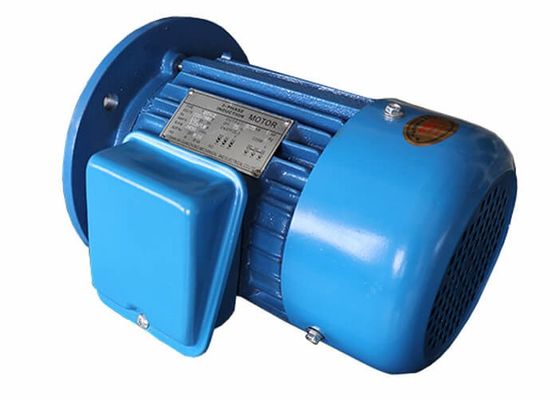

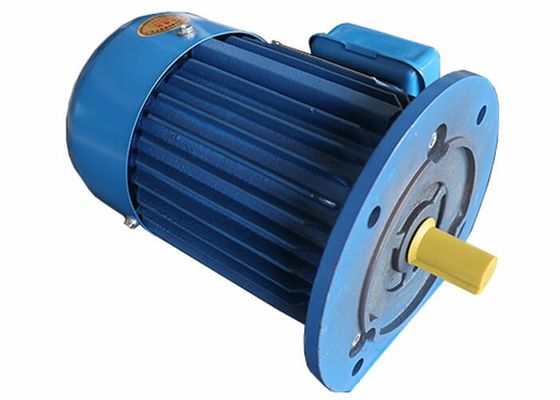

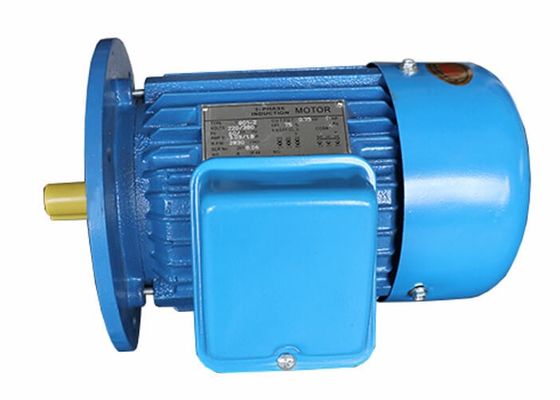

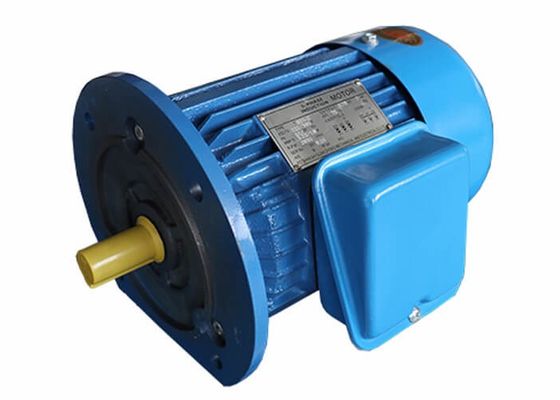

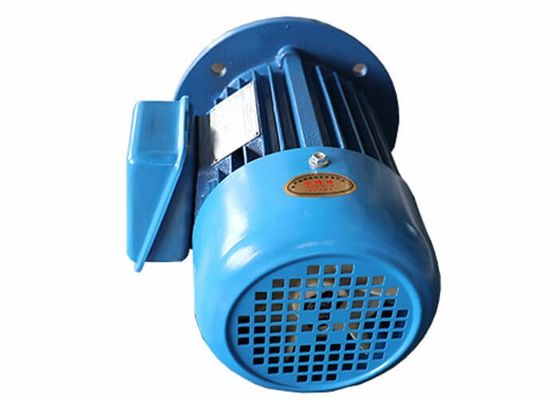

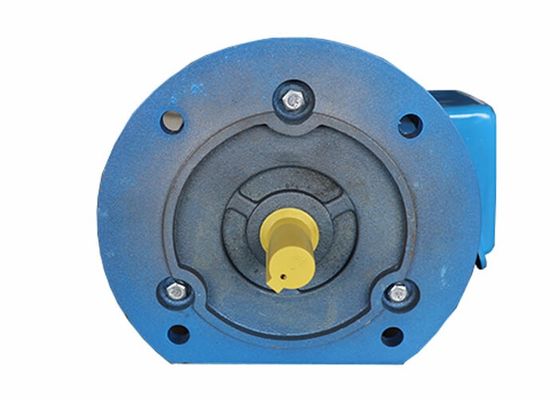

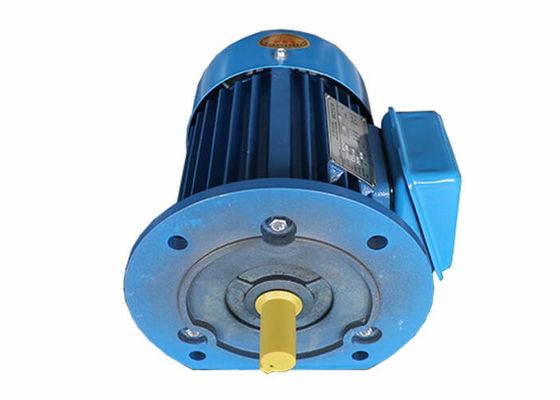

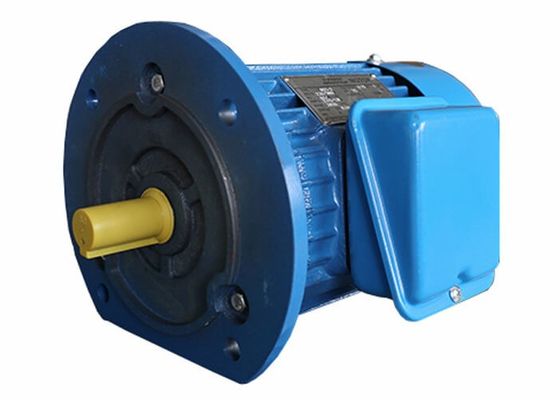

Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole

  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
  • Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y132S-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 5.5kw Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1,IE2,IE3
Motor Housing Cast Iron Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
High Light

7.5HP Three Phase Asynchronous Motor

,

IE3 Three Phase Asynchronous Motor

,

5.5kw 3 Phase Asynchronous Motor
Leave a Message
Product Description

3 Phase Induction Motor Description



Y Series motor is an enclosed fan cooled(TEFC), three-phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC34-1, and JB/T9616-1999 enjoys international interchangeable features.
Y series motors have outstanding performance, such as high efficiency, less consumption, high starting torque, low noise, little vibration, reliable operation, easy maintenance, etc.
Y series motors are widely used in many places where do not exist combustible, explosive, or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.







3 Phase Induction Motor Working Condition

Ambient temperature: -15℃≤~≤40℃
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50Hz, 60Hz
Protection class: lP44. IP54. lP55
Insulation class: B. F. H
Altitude: not exceed 1000m
Cooling method: lCO141
Duty: S1(continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above







Technical data

Model Prime Power (A) Speed Eff. Power Factor Eff. Power Factor Tstart/Tn Ist/In Tmax/Tn
KW HP (r/min) (%) (%)
Y-801-4 0.55 0.75 1.51 1390 73 0.76 71.5 0.66 2.4 6 2.3
Y-802-4 0.75 1 2.01 1390 74.5 0.76 73 0.67 2.3 6 2.3
Y-90S-4 1.1 1.5 2.75 1400 78 0.78 77 0.71 2.3 6.5 2.3
Y-90L-4 1.5 2 3.65 1400 79 0.79 77.5 0.72 2.3 6.5 2.3
Y-100L1-4 2.2 3 5.03 1430 81 0.82 80.3 0.74 2.2 7 2.3
Y-100L2-4 3 4 6.82 1430 82.5 0.81 81.6 0.75 2.2 7 2.3
Y-112M-4 4 5.5 8.77 1440 84.5 0.82 83.3 0.76 2.2 7 2.3
Y-132S-4 5.5 7.5 11.69 1440 85.5 0.84 84.2 0.78 2.2 7 2.3
Y-132M-4 7.5 10 15.4 1440 87 0.85 86.1 0.8 2.2 7 2.3
Y-160M-4 11 15 22.6 1460 88 0.84 87.4 0.79 2.2 7 2.3
Y-160L-4 15 20 30.3 1460 88.5 0.85 87.8 0.8 2.2 7 2.3
Y-180M-4 18.5 25 35.9 1470 91 0.86 89.9 0.81 2.2 7 2.2
Y-180L-4 22 30 42.5 1470 91.5 0.86 90.7 0.81 2 7 2.2
Y-200L-4 30 40 56.8 1470 92.2 0.87 91.3 0.82 2 7 2.2
Y-225S-4 37 50 70.4 1480 91.8 0.87 91.1 0.84 1.9 7 2.2
Y-225M-4 45 60 85.2 1480 92.3 0.88 91.6 0.85 1.9 7 2.2
Y-250M-4 55 75 103 1480 92.6 0.88 91.5 0.84 2 7 2.2
Y-280S-4 75 100 140 1480 92.7 0.89 91.7 0.84 1.9 7 2.2
Y-280M-4 90 125 164 1480 93.5 0.89 92.4 0.85 1.9 7 2.2
Y-315S-4 110 150 201 1480 93.5 0.89 92.5 0.86 1.8 6.8 2.2
Y-315M-4 132 180 240 1490 94 0.89 92.8 0.86 1.8 6.8 2.2
Y-315L1-4 160 220 289 1490 94.5 0.89 93.2 0.86 1.8 6.8 2.2
Y-315L2-4 200 270 361 1490 94.5 0.89 93.2 0.86 1.8 6.8 2.2
Y-355M-4 250 340 459 1485 94.7 0.87 93.6 0.87 1.6 6.8 2.2
Y-355L-4 315 430 576 1485 95.2 0.87 94.1 0.87 1.6 6.9 2.2

Y132S-4 5.5kw 7.5HP IE3 Three Phase Asynchronous Motor 4 Pole 0




































Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
