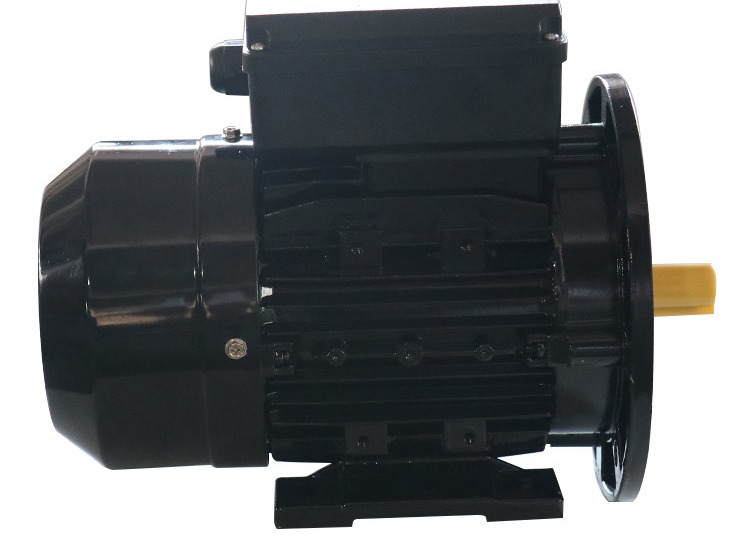

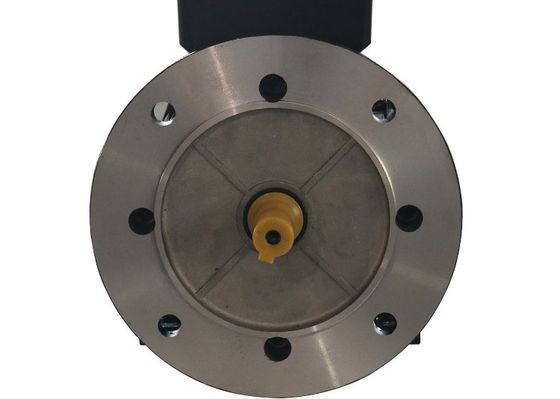

Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor

  • Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor
  • Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor
  • Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor
  • Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY90S-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs/month
Product Details
Product Name Single Phase Induction Motor Output 2HP /1.5KW
Pole 2 Protection Class IP55
Frequency 50Hz/60hz Insulation Class F
Type Asynchronous Motor
High Light

1.5KW Single Phase Ac Motor

,

2HP Single Phase Ac Motor

,

3000Rpm Capacitor Start Induction Motor
Leave a Message
Product Description

Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor


Single Phase Induction Motor Description:
MY Series Aluminum housing single-phase capacitor-run asynchronous motors, with the latest international design, are made of quality materials and meet the relative standards of IEC. MY series motors have the following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, low noise, slight vibration, lightweight, and simple construction.
This series of motors can be used on household appliances, pumps, fans, recording meters, etc.



Working Condition
Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%




DATA


Model Output     Speed Eff. P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP (V) (A) (r/min) (%)
MY631-2 0.18 0.25 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 0.34 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 0.5 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 0.75 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.1 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.5 2 220 9.44 2800 76 0.95 0.3 1.7 45
MY90L-2 2.2 3 220 13.67 2800 77 0.95 0.3 1.7 65
MY631-4 0.12 0.16 220 1.1 1400 55 0.9 0.4 1.7 3.5
MY632-4 0.18 0.25 220 1.62 1400 56 0.9 0.4 1.7 5
MY711-4 0.25 0.34 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 0.5 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 0.75 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.1 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.5 2 220 9.83 1400 73 0.95 0.3 1.7 45



Installation size and overall dimension:



Capacitor Start 3000Rpm 2HP 1.5KW Single Phase Ac Motor 0




Single Phase Induction Motor Our Service:

1. Directly factory sale

2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
