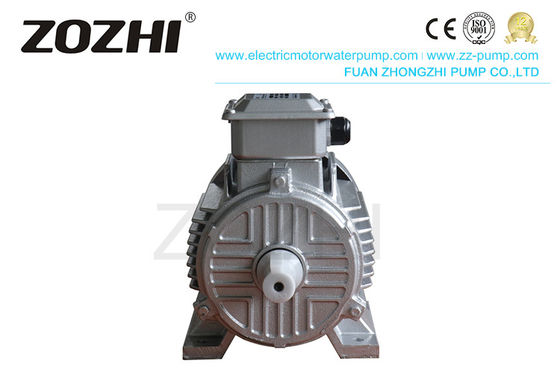

Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4

Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4
Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4

Large Image :  Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2-90L-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: $170
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 1.5KW Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP55
Rated Voltage: 380V Duty: S1(continuous)
High Light:

1420r/min IE2 Motor

,

7.5kw IE2 Motor

,

IE2-90L-4

Y2 IE2 Newly Designed High-Efficiency Motor With Cast Iron Housing 2.2kw 3kw 4kw 5.5kw 7.5kw

Y2 series three-phase asynchronous motor is a complete newly designed high-efficiency motor with cast iron housing. Its efficiency indicators are in line with IE2.

Characteristics for all Wonderpower standard 3-Phase asynchronous motors Widely applied in general machinery and industries such as pumps & water treatment, road machinery, petroleum, chemical, metallurgy, cement, and paper-milling.

Features:

  • 0.18Kw – 315Kw
  • 2, 4, 6 And 8 Pole Available
  • 63 – 355 Frame
  • IP55 protection, Class F insulation, B Temperature rise, S1 duty,
  • Rated voltage 400/460V, rated frequency 50/60Hz.
  • Operation conditions: ambient temperature:-20℃~40℃, altitude≤1000m.
  • Y-connection for motors up to 3kW and △-connection for 4kW and above
  • The cooling method is Ic411.
  • Thermistors fitted as standard
  • Fitted with SKF/NTN/NSK bearings
Technical data
NO. Type


kW



Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise LwdB Voltage
r/min A % cosφ (A) V
1 IE2-801-2 0.75 2850 1.7 77.4 0.82 2.3 6.8 2.3 62 400
2 IE2-802-2 1.1 2870 2.4 79.6 0.83 2.3 7.1 2.3 62 400
3 IE2-90S-2 1.5 2880 3.2 81.3 0.84 2.3 7.3 2.3 67 400
4 IE2-90L-2 2.2 2880 4.5 83.2 0.85 2.3 7.6 2.3 67 400
5 IE2-100L1-2 3 2880 5.9 84.6 0.87 2.2 7.8 2.3 74 400
6 IE2-112M-2 4 2900 7.6 85.8 0.88 2.3 8.1 2.3 77 400
7 IE2-132S1-2 5.5 2910 10.4 87 0.88 2.2 8.2 2.3 79 400
8 IE2-132S2-2 7.5 2910 13.8 88.1 0.89 2.2 7.8 2.3 79 400
9 IE2-160M1-2 11 2940 20 89.4 0.89 2.2 7.9 2.3 81 400
10 IE2-160M2-2 15 2940 26.9 90.3 0.89 2.2 8 2.3 81 400
11 IE2-160L-2 18.5 2940 33 90.9 0.89 2.2 8 2.3 81 400
12 IE2-180M-2 22 2950 39.1 91.3 0.89 2.2 8.1 2.3 83 400
13 IE2-200L1-2 30 2960 52.9 92 0.89 2 7.5 2.3 84 400
14 IE2-200L2-2 37 2960 64.9 92.5 0.89 2 7.5 2.3 84 400
15 IE2-225M-2 45 2960 78.6 92.9 0.89 2.2 7.5 2.3 86 400
16 IE2-250M-2 55 2970 96 93.2 0.89 2.2 7.6 2.3 89 400
17 IE2-280S-2 75 2975 130 93.8 0.89 2 6.9 2.3 91 400
18 IE2-280M-2 90 2975 155 94.1 0.89 2 6.9 2.3 91 400
19 IE2-315S-2 110 2975 187 94.3 0.9 2 7 2.2 92 400
20 IE2-315M-2 132 2975 224 94.6 0.9 2 7 2.2 92 400
21 IE2-315L1-2 160 2975 268 94.8 0.91 2 7.1 2.2 92 400
22 IE2-315L2-2 200 2975 334 95 0.91 2 7.1 2.2 92 400
23 IE2-355M-2 250 2980 418 95 0.91 1.6 7.1 2.2 100 400
24 IE2-355L-2 315 2980 526 95 0.91 1.6 7.2 2.2 100 400
25 IE2-802-4 0.75 1420 1.8 79.6 0.76 2.3 6.4 2.3 56 400
26 IE2-90S-4 1.1 1420 2.6 81.4 0.77 2.3 6.6 2.3 59 400
27 IE2-90L-4 1.5 1420 3.5 82.8 0.78 2.3 6.7 2.3 59 400
28 IE2-100L1-4 2.2 1440 4.7 84.3 0.8 2.3 7.3 2.3 64 400
29 IE2-100L2-4 3 1440 6.2 85.5 0.81 2.3 7.5 2.3 64 400
30 IE2-112M-4 4 1445 8.1 86.6 0.81 2.3 7.5 2.3 65 400
31 IE2-132S-4 5.5 1450 11.1 87.7 0.82 2 7.5 2.3 71 400
32 IE2-132M-4 7.5 1450 14.7 88.7 0.83 2 7.3 2.3 71 400
33 IE2-160M-4 11 1470 21.3 89.8 0.83 2.2 7.4 2.3 73 400
34 IE2-160L-4 15 1470 28.4 90.6 0.84 2.2 7.5 2.3 73 400
35 IE2-180M-4 18.5 1470 34.4 91.2 0.85 2.2 7.6 2.3 76 400
36 IE2-180L-4 22 1470 40.8 91.6 0.85 2.2 7.7 2.3 76 400
37 IE2-200L-4 30 1470 55.2 92.3 0.85 2.2 7.1 2.3 76 400
38 IE2-225S-4 37 1480 67 92.7 0.86 2.2 7.3 2.3 78 400
39 IE2-225M-4 45 1480 81.1 93.1 0.86 2.2 7.3 2.3 78 400
40 IE2-250M-4 55 1480 99 93.5 0.86 2.2 7.3 2.3 79 400
41 IE2-280S-4 75 1480 132 94 0.87 2.2 6.8 2.3 80 400
42 IE2-280M-4 90 1480 157 94.2 0.88 2.2 6.9 2.3 80 400
43 IE2-315S-4 110 1480 189 94.5 0.89 2.1 6.9 2.2 88 400
44 IE2-315M-4 132 1480 226 94.7 0.89 2.1 6.9 2.2 88 400
45 IE2-315L1-4 160 1480 270 94.9 0.9 2.2 6.9 2.2 88 400
46 IE2-315L2-4 200 1480 337 95.1 0.9 2.1 6.9 2.2 88 400
47 IE2-355M-4 250 1490 422 95.1 0.9 2.1 6.9 2.2 95 400
48 IE2-355L-4 315 1490 531 95.1 0.9 2.1 6.9 2.2 95 400
49 IE2-90S-6 0.75 930 2 75.9 0.71 2 5.8 2.1 57 400
50 IE2-90L-6 1.1 930 2.8 78.1 0.72 2 5.9 2.1 57 400
51 IE2-100L1-6 1.5 930 3.7 79.8 0.72 2 5.9 2.1 61 400
52 IE2-112M-6 2.2 945 5.4 81.8 0.72 2.1 6.2 2.1 65 400
53 IE2-132S-6 3 960 7.1 83.3 0.72 2 6.4 2.1 69 400
54 IE2-132M1-6 4 965 9.2 84.6 0.74 2 6.6 2.1 69 400
55 IE2-132M2-6 5.5 965 12.3 86 0.75 2 6.8 2.1 69 400
56 IE2-160M-6 7.5 970 15.9 87.2 0.78 2.1 6.8 2.1 73 400
57 IE2-160L-6 11 970 22.7 88.7 0.79 2.1 6.9 2.1 73 400
58 IE2-180L-6 15 980 29.8 89.7 0.81 2 7.3 2.1 73 400
59 IE2-200L1-6 18.5 980 36.5 90.4 0.81 2.1 7.2 2.1 73 400
60 IE2-200L2-6 22 980 43.1 90.9 0.81 2.1 7.3 2.1 73 400
61 IE2-225M-6 30 980 57.6 91.7 0.82 2 6.8 2.1 74 400
62 IE2-250M-6 37 980 69.8 92.2 0.83 2.1 7 2.1 76 400
63 IE2-280S-6 45 980 82 92.7 0.85 2.1 7.2 2 78 400
64 IE2-280M-6 55 980 100 93.1 0.85 2.1 7.2 2 78 400
65 IE2-315S-6 75 990 136 93.7 0.85 2 6.5 2 83 400
66 IE2-315S-6 90 990 163 94 0.85 2 6.6 2 83 400
67 IE2-315M-6 110 990 198 94.3 0.85 2 6.6 2 83 400
68 IE2-315L1-6 132 990 234 94.6 0.86 2 6.6 2 83 400
69 IE2-315L2-6 160 990 283 94.8 0.86 1.9 6.7 2 85 400
70 IE2-355M2-6 200 990 353 95 0.86 2 6.8 2 85 400
71 IE2-355L-6 250 990 442 95 0.86 2 6.8 2 85 400

Reviews from the client:

Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4 2



Shipping:

after 25~30days, we will delivery the goods, for loose goods better packed by the pallet for avoiding destroy

NFM-129A











Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4 4







Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4 5

Cast Iron IP55 4kw 5.5kw 7.5kw 1420r/min IE2 Motor IE2-90L-4 6
