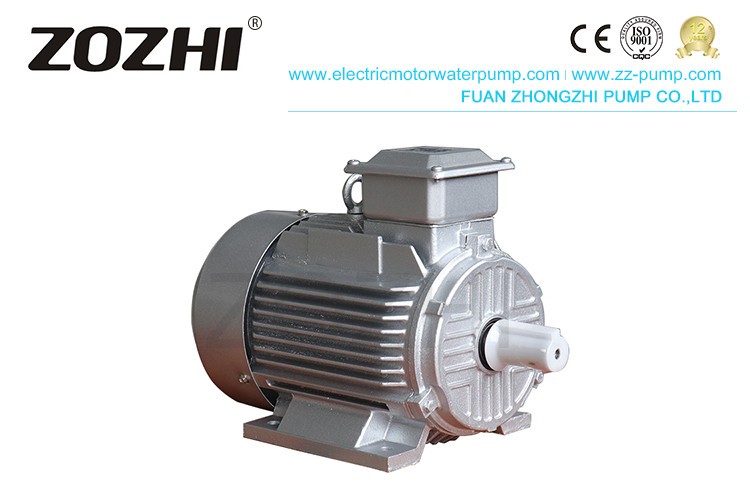

Cast Iron Three Phase IP55 5.5KW 7.5HP IE3 Electric Motor

Cast Iron Three Phase IP55 5.5KW 7.5HP IE3 Electric Motor
Cast Iron Three Phase IP55 5.5KW 7.5HP IE3 Electric Motor

Large Image :  Cast Iron Three Phase IP55 5.5KW 7.5HP IE3 Electric Motor

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE3-132S-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: $170
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: AC Motor Application: Drivng
Power: 5.5KW/7.5HP Pole: 4
Phase: Three Phase Housing: Cast Iron
Insulation Class: B,F Protection: IP55
Rated Voltage: 380V Duty: S1(continuous)
High Light:

7.5HP IE3 Electric Motor

,

5.5KW IE3 Electric Motor

,

IP55 Three Phase AC Motor

IE3 Premium Efficiency Electric Motor With Cast Iron 7.5HP

1. PRODUCT INTRODUCTION OF IE3 ELECTRIC MOTOR



YE3 series are 3 phase asynchronous electric motors with totally enclosed fan cooled, are ac motor, industrial motors. The premium efficiency motors are developed by ourselves independently according to standard IEC, GB, etc. The energy-saving motors meet with efficiency IE3 of IEC60034-30 and efficiency Grade 2 of GB18613-2012. The IE3 INDUCTION MOTORS are also in compliance with the efficiency standards covered by NEMA, CSA, CEMEP, COPANT, AS, NZS, JIS, GB. it is the most authoritative efficiency classification standard in the world.

The output rated power and mounting dimensions of the motors are perfectly in accordance with IEC60072-1. YE3 motors are a reasonable structure, small vibration, and low noise.

YE3 series 3 phase asynchronous motors can be widely used in blowers, ventilators, pumps, machine tools, compressor, reducers, packing machines, transportation machinery, mining equipment, construction equipment, and other machines, which can operate with full load for a long time, the three-phase electric motors can save the considerable electric energy, it is advantageous to protect the environment.



2. TECHNICAL FEATURES OF IE3 ELECTRIC MOTOR

1. Execution standard: IEC60034-30

2. Energy efficiency grade: IE3

3. Frame size: H80~H355 Pole: 2P/4P/6P

4. Rated power: 0.75KW~355KW

5. Voltage: 380V, 400V, 415V

6. Frequency: 50Hz, 60Hz

7. Operation mode: S1 (continuous running)

8. Enclosed protect class: IP55

9. Insulation class: F (temperature rise is examined at 80K)

10. Cooling method: IC411

11. Mounting method: B3, B5, B35, V1

12. Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Cº

13. Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.



Note: the inquiry or order need to indicate the electric motor model(including frame center’s height, frame length, the core length, No. of poles, power, voltage, frequency), Mounting method, terminal box location(top/side).

If customers have a special request for the voltage, frequency, and others, can be mentioned in the inquiry or order.

1. Customers can choose PTC or Pt100 thermistors for heat protection of winding and bearing.

2. Customers can choose a moisture-proof heater (space heater).



Performance Chart:



NO. Type Output Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise Voltage
kW r/min (A) % CosΦ LwdB(A) V
1 IE3-801-2 0.75 2890 1.64 80.7 0.82 2.3 7 2.3 62 400
2 IE3-802-2 1.1 2890 2.31 82.7 0.83 2.2 7.3 2.3 62 400
3 IE3-90S-2 1.5 2890 3.06 84.2 0.84 2.2 7.6 2.3 67 400
4 IE3-90L-2 2.2 2890 4.35 85.9 0.85 2.2 7.6 2.3 67 400
5 IE3-100L-2 3 2895 5.71 87.1 0.87 2.2 7.8 2.3 74 400
6 IE3-112M-2 4 2910 7.45 88.1 0.88 2.2 8.3 2.3 77 400
7 IE3-132S1-2 5.5 2940 10.1 89.2 0.88 2 8.3 2.3 79 400
8 IE3-132S2-2 7.5 2940 13.7 90.1 0.88 2 7.9 2.3 79 400
9 IE3-160M1-2 11 2950 19.6 91.2 0.89 2 8.1 2.3 81 400
10 IE3-160M2-2 15 2950 26.5 91.9 0.89 2 8.1 2.3 81 400
11 IE3-160L-2 18.5 2950 32.5 92.4 0.89 2 8.2 2.3 81 400
12 IE3-180M-2 22 2960 38.5 92.7 0.89 2 8.2 2.3 83 400
13 IE3-200L1-2 30 2970 52.1 93.3 0.89 2 7.6 2.3 84 400
14 IE3-200L2-2 37 2970 64 93.7 0.89 2 7.6 2.3 84 400
15 IE3-225M-2 45 2970 76.8 94 0.9 2 7.7 2.3 86 400
16 IE3-250M-2 55 2980 93.5 94.3 0.9 2 7.7 2.3 89 400
17 IE3-280S-2 75 2980 127 94.7 0.9 1.8 7.1 2.3 91 400
18 IE3-280M-2 90 2980 152 95 0.9 1.8 7.1 2.3 91 400
19 IE3-315S-2 110 2980 185 95.2 0.9 1.8 7.1 2.3 92 400
20 IE3-315M-2 132 2980 224 94.5 0.9 1.8 7.1 2.3 92 400
21 IE3-315L1-2 160 2980 265 95.6 0.91 1.8 7.2 2.3 92 400
22 IE3-315L2-2 200 2980 331 95.8 0.91 1.8 7.2 2.2 92 400
23 IE3-355M-2 250 2980 414 95.8 0.91 1.6 7.2 2.2 100 400
24 IE3-355L-2 315 2980 522 95.8 0.91 1.6 7.2 2.2 100 400
25 IE3-802-4 0.75 1430 1.75 82.5 0.75 2.3 6.6 2.3 56 400
26 IE3-90S-4 1.1 1440 2.48 84.1 0.76 2.3 6.8 2.3 59 400
27 IE3-90L-4 1.5 1440 3.3 85.3 0.77 2.3 7 2.3 59 400
28 IE3-100L1-4 2.2 1455 4.52 86.7 0.81 2.3 7.6 2.3 64 400
29 IE3-100L2-4 3 1455 6.02 87.7 0.82 2.3 7.6 2.3 64 400
30 IE3-112M-4 4 1460 7.95 88.6 0.82 2.2 7.8 2.3 65 400
31 IE3-132S-4 5.5 1470 10.7 89.6 0.83 2 7.9 2.3 71 400
32 IE3-132M-4 7.5 1470 14.3 90.4 0.84 2 7.5 2.3 71 400
33 IE3-160M-4 11 1470 20.4 91.4 0.85 2.2 7.7 2.3 73 400
34 IE3-160L-4 15 1470 27.3 92.1 0.86 2.2 7.8 2.3 73 400
35 IE3-180M-4 18.5 1475 33.5 92.6 0.86 2 7.8 2.3 76 400
36 IE3-180L-4 22 1475 39.7 93 0.86 2 7.8 2.3 76 400
37 IE3-200L-4 30 1480 53.8 93.6 0.86 2 7.8 2.3 76 400
38 IE3-225S-4 37 1485 66.1 93.9 0.86 2 7.4 2.3 78 400
39 IE3-225M-4 45 1485 80.2 94.2 0.86 2 7.4 2.3 78 400
40 IE3-250M-4 55 1485 97.6 94.6 0.86 2 7.4 2.3 79 400
41 IE3-280S-4 75 1485 129 95 0.88 2 6.9 2.3 80 400
42 IE3-280M-4 90 1485 155 95.2 0.88 2 6.9 2.3 80 400
43 IE3-315S-4 110 1485 187 95.4 0.89 2 7 2.2 88 400
44 IE3-315M-4 132 1485 224 95.6 0.89 2 7 2.2 88 400
45 IE3-315L1-4 160 1485 271 95.8 0.89 2 7.1 2.2 88 400
46 IE3-315L2-4 200 1485 334 96 0.9 2 7.1 2.2 88 400
47 IE3-355M-4 250 1490 418 96 0.9 2 7.1 2.2 95 400
48 IE3-355L-4 315 1490 526 96 0.9 2 7.1 2.2 95 400
49 IE3-90S-6 0.75 955 1.93 78.9 0.71 2 6 2.1 57 400
50 IE3-90L-6 1.1 955 2.69 81 0.73 2 6 2.1 57 400
51 IE3-100L-6 1.5 955 3.6 82.5 0.73 2 6.5 2.1 61 400
52 IE3-112M-6 2.2 970 5.09 84.3 0.74 2 6.6 2.1 65 400
53 IE3-132S-6 3 970 6.84 85.6 0.74 2 6.8 2.1 69 400
54 IE3-132M1-6 4 970 8.99 86.8 0.74 2 6.8 2.1 69 400
55 IE3-132M2-6 5.5 970 12 88 0.75 2 7 2.1 69 400
56 IE3-160M-6 7.5 980 15.4 89.1 0.79 2 7 2.1 73 400
57 IE3-160L-6 11 980 22 90.3 0.8 2 7.2 2.1 73 400
58 IE3-180L-6 15 980 29.3 91.2 0.81 2 7.3 2.1 73 400
59 IE3-200L1-6 18.5 985 36 91.7 0.81 2 7.3 2.1 73 400
60 IE3-200L2-6 22 985 42.5 92.2 0.81 2 7.4 2.1 73 400
61 IE3-225M-6 30 985 56.2 92.9 0.83 2 6.9 2.1 74 400
62 IE3-250M-6 37 990 68.1 93.3 0.84 2 7.1 2.1 76 400
63 IE3-280S-6 45 990 81.6 93.7 0.85 2 7.3 2 78 400
64 IE3-280M-6 55 990 98.1 94.1 0.86 2 7.3 2 78 400
65 IE3-315S-6 75 990 136 94.6 0.84 2 6.6 2 83 400
66 IE3-315M-6 90 990 161 94.9 0.85 2 6.7 2 83 400
67 IE3-315L1-6 110 990 196 95.1 0.85 2 6.7 2 83 400
68 IE3-315L2-6 132 990 232 95.4 0.86 2 6.8 2 83 400
69 IE3-355M1-6 160 990 281 95.6 0.86 1.8 6.8 2 85 400
70 IE3-355M2-6 200 990 346 95.8 0.87 1.8 6.8 2 85 400
71 IE3-355L1-6 250 990 433 95.8 0.87 1.8 6.8 2 85 400
72 IE3-355L2-6 315 990 552 95.8 0.86 1.8 6.8 2 85 400




Reviews from the client:

Cast Iron Three Phase IP55 5.5KW 7.5HP IE3 Electric Motor 0



Shipping:

after 25~30days, we will delivery the goods, for loose goods better packed by the pallet for avoiding destroy
